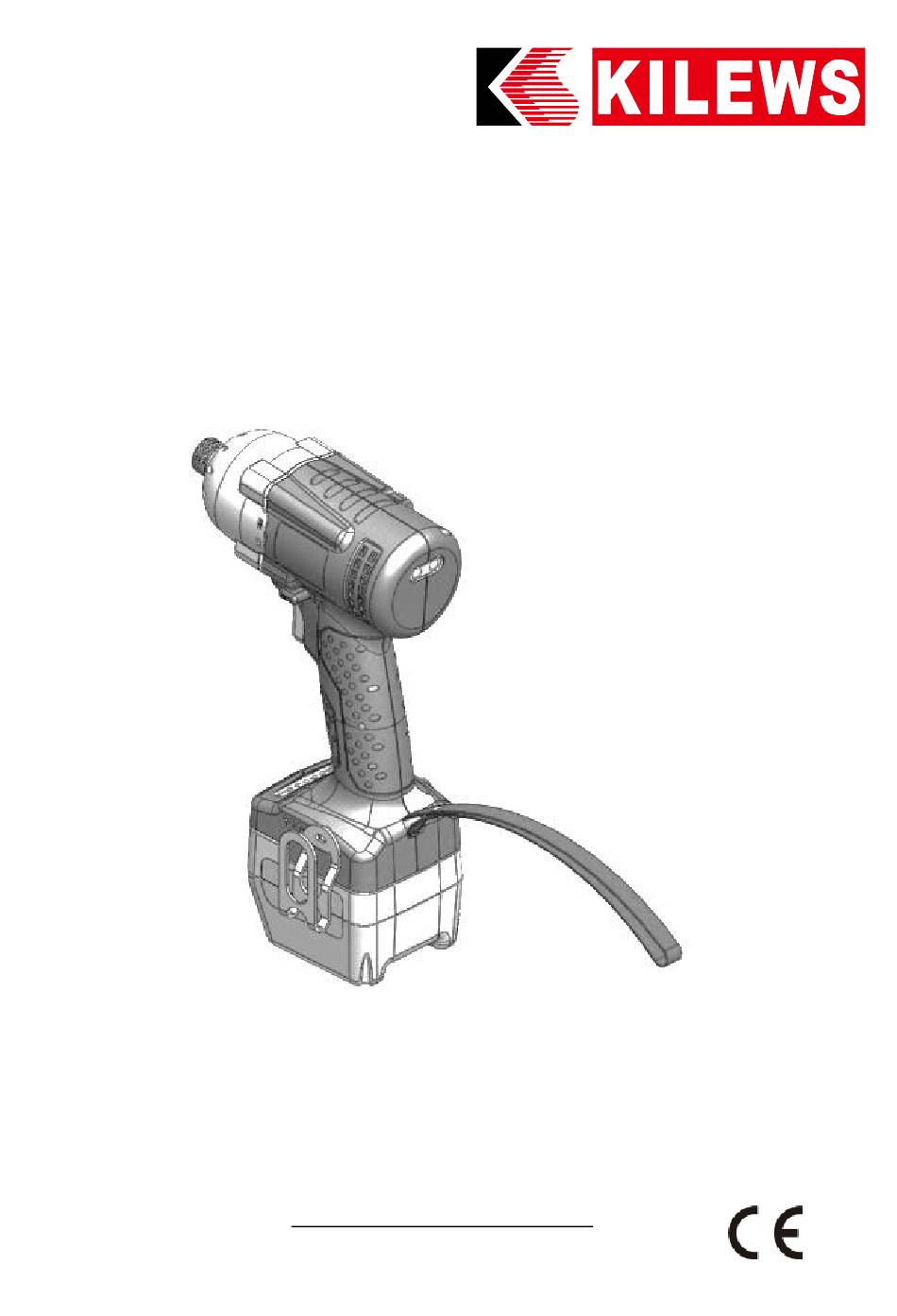

- Page 1 IMPACT SERIES Cordless Screwdriver OPERATION AND MAINTENANCE MANUAL SKC-PTI-50 SKC-PTI-100 Rechargeable –TYPE Impact Brushless Series KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com.tw Y2F135A-E-003...
- Page 2 Please read manual carefully before operating the rechargeable impact screwdriver. Icon Instructions 1. Read instruction manual. 6. Do not operate in an explosive atmosphere. 2. Observe caution and safety notes. 7. Do not disassemble. 3. Recyclable. 8. Forbid throwing. 4. For indoor use only. 9.
- Page 3 17. It is necessary for the operators to read and follow up all the operating instructions in this manual. KILEWS is not responsible for any personal injury that might cause of disobeying the safety advice. 18. Use a safety device. Wear protective earmuffs to reduce personal injury.
- Page 4 Do not attempt to disassemble or reassemble the device at will which may result in poor performance or danger of injury, the warranty applies only to initial package. Do not repair the device with other than genuine KILEWS replacement parts may result in poor performance or danger of injury, the warranty will be considered void.
- Page 5 2.1. Below illustration is showing the process of correct install & disassemble the rechargeable battery. The beep sound comes along with a flash while the screwdriver is supplied genuine battery installation. It could be operated once the battery has been identified. 2.2.
- Page 6 Appearance Functions Introduction Function Name Table Description Description Trigger Switch Wrist Strap Forward/Reverse Lever S Waist Hook LED Light Indication Light Bit Sleeve Torque Adjustment Light...
- Page 7 Manual / Functions 1. Impact cordless screwdriver Screws are continually fastened up while come along with clutch PA-PA-PA sound until the device reaches of Five control the stop time. (1) Trigger switch The LED lights on when the trigger switch has been pressed about one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;...
- Page 8 (5) Wrist Strap Use Wrist Strap with tool for more convenient and safer operation and store. (6) S Waist Hook Use S Waist Hook to fix tool for more convenient and safer operation and carry. (7) Buzzer beep and LED light Indication Light: Operation status LED Lights Buzzer Beep...
- Page 9 Description of battery and charger 1. KILEWS SKC-LB1830C series of battery as options to fit in the device; you may consult with local agent based on your task requirement. 2. The use of other than genuine KILEWS batteries or screwdrivers can’t be active due to the build-in protection system enforce no charging.
- Page 10 Specifications MODEL SKC-PTI-100 SKC-PTI-50 Input Voltage DC 18V 0~20 0~40 0~15 Bit torque 0~60 0~25 (N.m) 0~80 0~35 0~100 0~50 Rev speed at no load 0~2300 n0: (r/min) ±10% Impact rate (B.P.M) 0~3000 Weight (Kg) 1kg (Batteries not included) 0.9kg (Batteries not included) 155 mm ＊...
