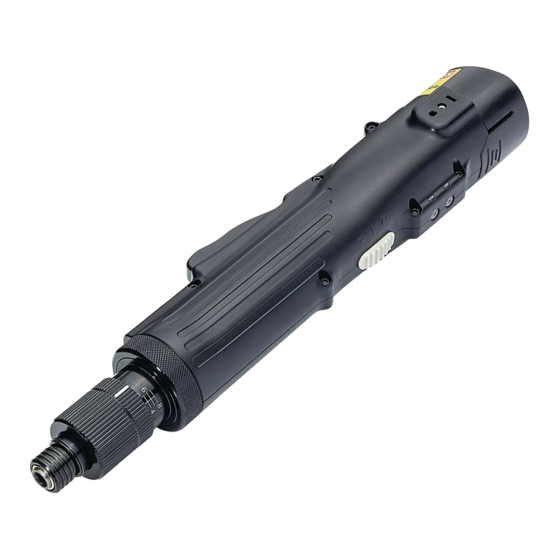

Automatic industrial cordless brushless power torque screwdrivers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Automatic Industrial Cordless Brushless Power
Torque Screwdrivers Series
OPERATION AND MAINTENANCE MANUAL
SKC-PTA-BS20
K
SKC-PTA-BS30
SKC-PTA-BS45
Rechargeable -TYPE Automatic Brushless Series
KILEWS INDUSTRIAL CO., LTD.
http://www.kilews.com
Y2F151A-4-007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKC-PTA-BS30 and is the answer not in the manual?

Questions and answers

Related Manuals for Kilews SKC-PTA-BS30

Summary of Contents for Kilews SKC-PTA-BS30

  • Page 1 Automatic Industrial Cordless Brushless Power Torque Screwdrivers Series OPERATION AND MAINTENANCE MANUAL SKC-PTA-BS20 SKC-PTA-BS30 SKC-PTA-BS45 Rechargeable -TYPE Automatic Brushless Series KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F151A-4-007...

  • Page 2: Icon Instructions

    Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely (including the spare parts view). The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1.
  • Page 3 16. To prevent parts in gearbox from damage, replace the grease at least once for every year. 17. It is necessary for the operators to read and follow up all the operating instructions in this manual. KILEWS is not responsible for any personal injury that might cause of disobeying the safety advices.
  • Page 4 2. Do not attempt to disassemble or reassemble the device it may result in poor performance or danger of injury, the warranty applies only to initial package. 3. Do not repair the device with other than genuine KILEWS replacement parts may result in poor performance or danger of injury, the warranty will be considered void.

  • Page 5: Insert Battery Steps

    Follow belw steps to correctly install & remove battery. Insert Battery Steps Remove Battery Steps (1) Press the release button and take it out of the (1) Take screwdriver and battery. Device. Battery Release Button (2) Insert the rechargeable battery into the device (2) Follow the arrow direction.

  • Page 6: Function / Operating Introduction

    Function / Operating Introduction Function Name Table Description Description Trigger Switch Driver Hook Forward/Reverse Lever S waist Screw Hole Bit Sleeve S Waist Hook Torque Fixing Ring OK/NG/Power/Hi&Lo Indicating Light Torque Fixing Ring/Coupler...

  • Page 7: Manual / Function

    Manual / Function 1. Full Auto Shut-Off Screwdriver It stops automatically when the screw has been tightened up and reached the set-up torque level. The device will not cause damage of task since no continue running after screws are tightened. (1) Trigger Switch The LED lights are on when the trigger switch has been pressed about one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;...
  • Page 8 (3) Bit Sleeve To Switch the bit and compatibility, pull the head of the type B screwdriver, and install the bit according to the diagram below, and push it in following the arrow indicated on the diagram. Pull the bit holder Insert the bit (4) Torque Adjustment Ring: Turn torque adjust ring counter clock wise to increase torque output, on the other hand decrease...
  • Page 9 (9) OK/NG/Power/Hi&Lo Indicating Light Explanation Protection Explanation: The indicating LEDS will show Hi/Lo when push Forward/Reverse lever to the middle position. Speed can't be adjusted when temperature protection is activated. Please wait until temperature protection is deactivated. Release Screw Current switch to reaches set Start...

  • Page 10: Other Cautions

    3. KILEWS is not responsible for any poor performance or damage caused by customers own modification of the tool. 4. It is necessary for the management to have every operator to read and follow all instructions in this manual.

  • Page 11: Specifications

    Specifications MODEL SKC-PTA-BS20 SKC-PTA-BS30 SKC-PTA-BS45 INPUT VOLTAGE(DC) DC 10.8V TORQUE (N.m) 0.3-2 0.8~3 1.5-4.5 Torque accuracy (%) ±3% Torque adjustment Stepless Duty cycle 1.0s ON 3.0s OFF 1200 1200 Unloaded Speed (min )±10% Machine Screw size (mm) 2.3~3.5 2.6~4.0 4.0~5.0...

  • Page 12: Torque Adjustment Operation

    In reverse rotation, the clutch is turned off when a screw is tightened at large torque, set same or higher torque to unscrew. The number from zero to eight on the Torque Scale are reference number only and not an indication of actual torque output. Please refer to Kilews website http://www.kilews.com for the detail component list..
