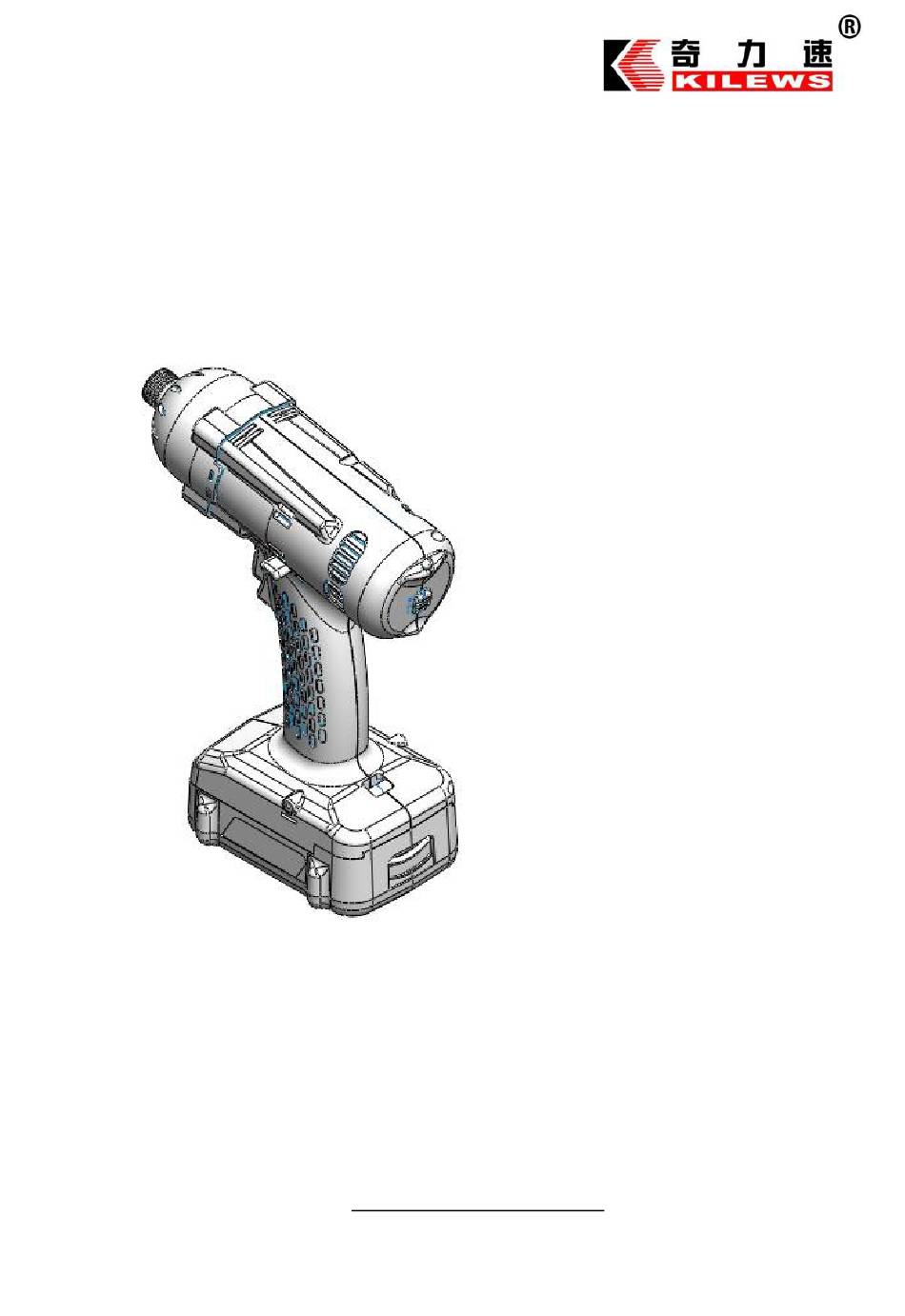

IMPACT SERIES Cordless Screwdriver
OPERATION AND MAINTENANCE MANUAL
DIXON AUTOMATIC TOOL, INC.
2300 - 23
Phone: 815-226-3000 / Fax: 815-226-0180
Email: custserv@dixonautomatic.com
RD
Avenue - Rockford, IL 61104
www.dixonlighttools.com
SKC-PTI-160B
(Impact Driver)
SKC-PTI-250W
(Impact Wrench)
Y2F104A-E-004
Advertisement
Table of Contents
Related Manuals for Kilews SKC-PTI-160B
Summary of Contents for Kilews SKC-PTI-160B
- Page 1 IMPACT SERIES Cordless Screwdriver OPERATION AND MAINTENANCE MANUAL SKC-PTI-160B (Impact Driver) SKC-PTI-250W (Impact Wrench) DIXON AUTOMATIC TOOL, INC. 2300 - 23 Avenue - Rockford, IL 61104 Phone: 815-226-3000 / Fax: 815-226-0180 Email: custserv@dixonautomatic.com www.dixonlighttools.com Y2F104A-E-004...
-
Page 2: Icon Instruction
Please read manual carefully before operating the rechargeable impact screwdriver. Icon Instruction Read manual Warning Recycle Indoor use only No humidity No fire No disassemble No disposal CE certificate Accessories Item Quantity Unit Manual Guarantee Card Waist hook Screw M3*0.5P*10LT Socket Extension (B) / (W) 1 / 0 BIT(B) / (W) - Page 3 Warning Read all instructions and make sure the appearance of the device has no damage before you use it. Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. 1. Keep the working area nice and clean. 1.1 Mess and dark areas may cause of accidents.
-
Page 4: Function Of Cordless Protection
Do not attempt to disassemble or reassemble the device at will which may result in poor performance or danger of injury, the warranty applies only to initial package. Do not repair the device with other than genuine KILEWS replacement parts may result in poor performance or danger of injury, the warranty will be considered void. - Page 5 2.1. Below illustration is showing the process of correct install & disassemble the rechargeable battery. The beep sound comes along with a flash while the screwdriver is supplied genuine battery installation. It could be operated once the battery has been identified. 2.2.
-
Page 6: Appearance Functions Introduction
Appearance Functions Introduction Function Name Table Description Description Trigger Switch Wrist strap hole Forward/Reverse Lever S waist hook LED Light Indicator light Bit sleeve H/M/L time control switch... -
Page 7: Manual Functions
Manual / Functions 1. Impact cordless screwdriver Screws are continually fastened up while come along with clutch PA-PA-PA sound until the device reaches the setting time of H/M/L control. (1) Trigger switch The LED lights on when the trigger switch has been pressed about one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;... -
Page 8: Other Cautions
(5) Hole for wrist band Enable to install the wrist band which is more convenient and safer for users. (6) ) Waist hook The waist hook allows users to carry the device easily by attaching it to their work belt. (7) Functional light and the status indicator Whenever the remaining power in the rechargeable battery is fewer than 20%, the tool is still alive but with red flash lights on. -
Page 9: Description Of Battery And Charger
J bolt tension calibrator. Description of battery and charger 1. KILEWS SKC-LB series of batteries as options to fit in the device; you may consult with local agent based on your task requirement. 2. The use of other than genuine KILEWS batteries or screwdrivers can’t be active due to the build-in protection system enforce no charging. -
Page 10: Specifications
Specifications MODEL SKC-PTI-250W SKC-PTI-160B Input Voltage DC 18V 0~250 0~160 Bit torque(Nm) 0~160 0~120 0~100 0~80 Rev speed at no load 0~2100 0~2300 n0: (r/min) )±10% Impact rate (B.P.M) 0~3800 0~2800 Weight (Kg) 1.1kg( battery not include ) 188 mm ＊ 181mm Length (mm) （L＊H battery not include ）... - Page 11 26.2 27.2 MODEL NO : SKC-PTI-160 11-1 SKC-PTI-250 DVTUPNFS EXH OBNF QSPEVDUJPO OP/ JUFN OP; EXH OP; UJUMF; NBUFSJBM TISJOL EFT/ CZ DILE/CZ EBUF EBUF UIJSE BOHMF QSPKFDUJPO/ VOJU TDBMF TIU OP/ BQQE/CZ EBUF PG TIUT/ KILEWS INDUSTRIAL CO.. LTD.
- Page 12 őŕŊĮIJķıŃ őŕŊĮIJķıŃĺįĶ őŕŊĮijĶıŘ ŏŐ őłœŕŔ ŏŐ őłœŕŔ ŏłŎņĮņ őłœŕŔ ŏłŎņĮń Œ Ĩŵ ŏŐ őłœŕŔ ŏŐ őłœŕŔ ŏłŎņĮņ őłœŕŔ ŏłŎņĮń Œ Ĩŵ ᾅ嬟 ōņŅ 䘤 Ḵ㤝橼 䲭 IJ ńĶıijijĴ őųŰŵŦŤŵŪŰů IJ IJĸ ņĴĴIJIJIJ œŦť ōņŅ IJ ij ńʼnijıĶIJĺĮĴ ŔŤųŦŸ 坢䴚 ĵ IJĹ...
