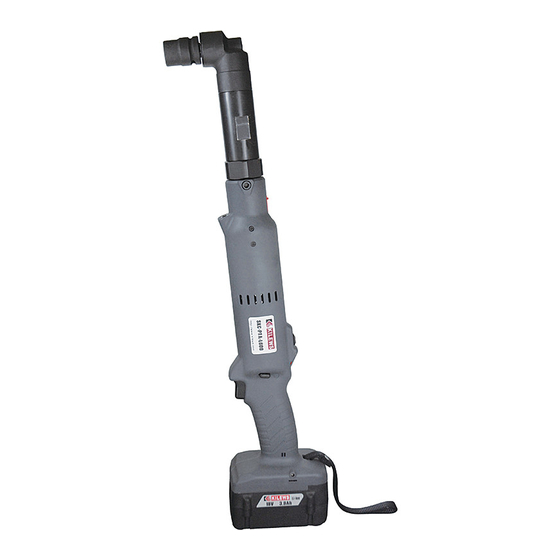

Automatic Industrial Cordless Brushless
Power Torque Screwdrivers Series
OPERATION AND MAINTENANCE MANUAL
PTA-L600-
Series
SKC-PTA-L600
SKC-PTA-L450
Rechargeable -TYPE Automatic Brushless Series
Address: NO.30, Lane 83, Hwa-Cheng Road, Hsin Chuang district,
New Taipei City, Taiwan, R.O.C.
KILEWS INDUSTRIAL CO., LTD.
PTA-L300-
SKC-PTA-L300
SKC-PTA-L150F
SKC-PTA-L80F
http://www.kilews.com
PTA-L150-
Series
SKC-PTA-L150
SKC-PTA-L120
SKC-PTA-L70
SKC-PTA-L50F
Series
Y2F137A-E-007
Advertisement
Related Manuals for Kilews PTA-L600 Series
Summary of Contents for Kilews PTA-L600 Series
- Page 1 PTA-L600- PTA-L300- PTA-L150- Series Series Series SKC-PTA-L600 SKC-PTA-L300 SKC-PTA-L150 SKC-PTA-L450 SKC-PTA-L150F SKC-PTA-L120 SKC-PTA-L80F SKC-PTA-L70 SKC-PTA-L50F Rechargeable -TYPE Automatic Brushless Series Address: NO.30, Lane 83, Hwa-Cheng Road, Hsin Chuang district, New Taipei City, Taiwan, R.O.C. KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F137A-E-007...
- Page 2 Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely (including the spare parts view). The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1.Read instruction manual.
- Page 3 17. It is necessary for the operators to read and follow up all the operating instructions in this manual. KILEWS is not responsible for any personal injury that might cause of disobeying the safety advices. 18. Use a safety device: 19.
- Page 4 3. Do not repair the device with other than genuine KILEWS replacement parts may result in poor performance or danger of injury, the warranty will be considered void.
- Page 5 2.1 Below illustration is showing the process of correct install & disassemble the rechargeable battery. The beep sound comes along with a flash while the screwdriver is supplied genuine battery installation. It could be operated once the battery has been identified. 2.2 Too slow to install the battery may cause error identification so the beep sound and flash would be continuing.
-
Page 6: Table Of Contents
Function / Operating Introduction (10) Function Name Table Description Description Trigger Switch Indication light Forward/Reverse Lever Torque wrench LED Light Speed adjustment Torque Ring Wrist strap hole S waist hook (10) Suspension Ring Accessary... -
Page 7: Trigger Switch
Manual / Function 1. Full auto shut-off screwdriver It stops automatically when the screw has been tightened up and reached the set-up torque level. The device will not cause damage of task since no continue running after screws are tightened. (1) Trigger switch The LED lights on when the trigger switch has been pressed about one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;... -
Page 8: S Waist Hook
(5) Waist hook The waist hook allows users to carry the device easily by attaching it to their work belt. (6) Functional light and the status indicator Whenever the remaining power in the rechargeable battery is fewer than 20%, the tool is still alive but with red flash lights on. - Page 9 Notice: Use the junction of waring spring and spring fixing plate as a reference point when adjusting torque. To avoid jamming and abnormal conditions, please do not exceed the stop line of the high and low torque when adjustment shown in diagram 3. the stop line of the stop line of the low torque...
-
Page 10: Suspension Ring Accessary
(9) Hole for wrist band Enable to install the wrist band which is more convenient and safer for users. (10) Suspension Ring Accessary Use for hanging tool apply to the application, assembly follow below steps: (1). Take both up and down side cover of suspension ring. (2). - Page 11 3. KILEWS is not responsible for any poor performance or damage caused by customers own modification of the tool. 4. It is necessary for the management to have individual operators read and follow up all instructions in this manual.
- Page 12 2. SKC-LB1820C for PTA-L300/L150F/L80F and SKC-LB1820B for PTA-L150/120/L70/L50F is recommended,Please contact to your local agents for more informat 3. The use of other than genuine KILEWS batteries or screwdrivers can’t be active due to the build-in protection system enforce no charging.
- Page 13 b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Page 14 c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
- Page 15 b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Page 16 5) Battery tool use and care a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- Page 17 .Sound power level & Vibration : . Weighted surface sound pressure level L pfA according to EN ISO 3744: 81.9 dBA . Uncertainty K pA: 0.566 dBA . A-weighed sound power level L WA according to 8.6 of EN ISO 3744 : 92.9 dBA .
- Page 18 4.0~5.0 (mm) screw Weight (Kg) 2.85kg 1.9kg 1.25kg 530mm＊122 mm 460mm＊92 mm 400mm＊92 mm Length (mm) L＊H w/o battery L＊H w/o battery L＊H w/o battery KILEWS KTM- KTM- KTM- KTM- KTM- KTM- KTM- KTM- KTM- torque meter 1000 1000 1000 W 1/2"sq W 1/2"sq W 3/8"sq W 3/8"sq...
