Summary of Contents for Kilews SKC-PTA-BS20P

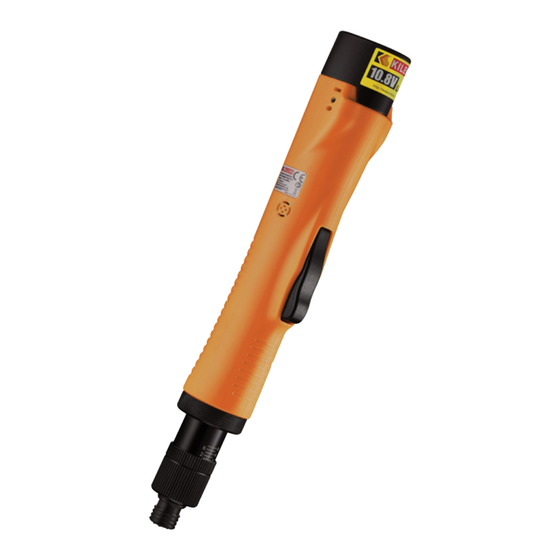

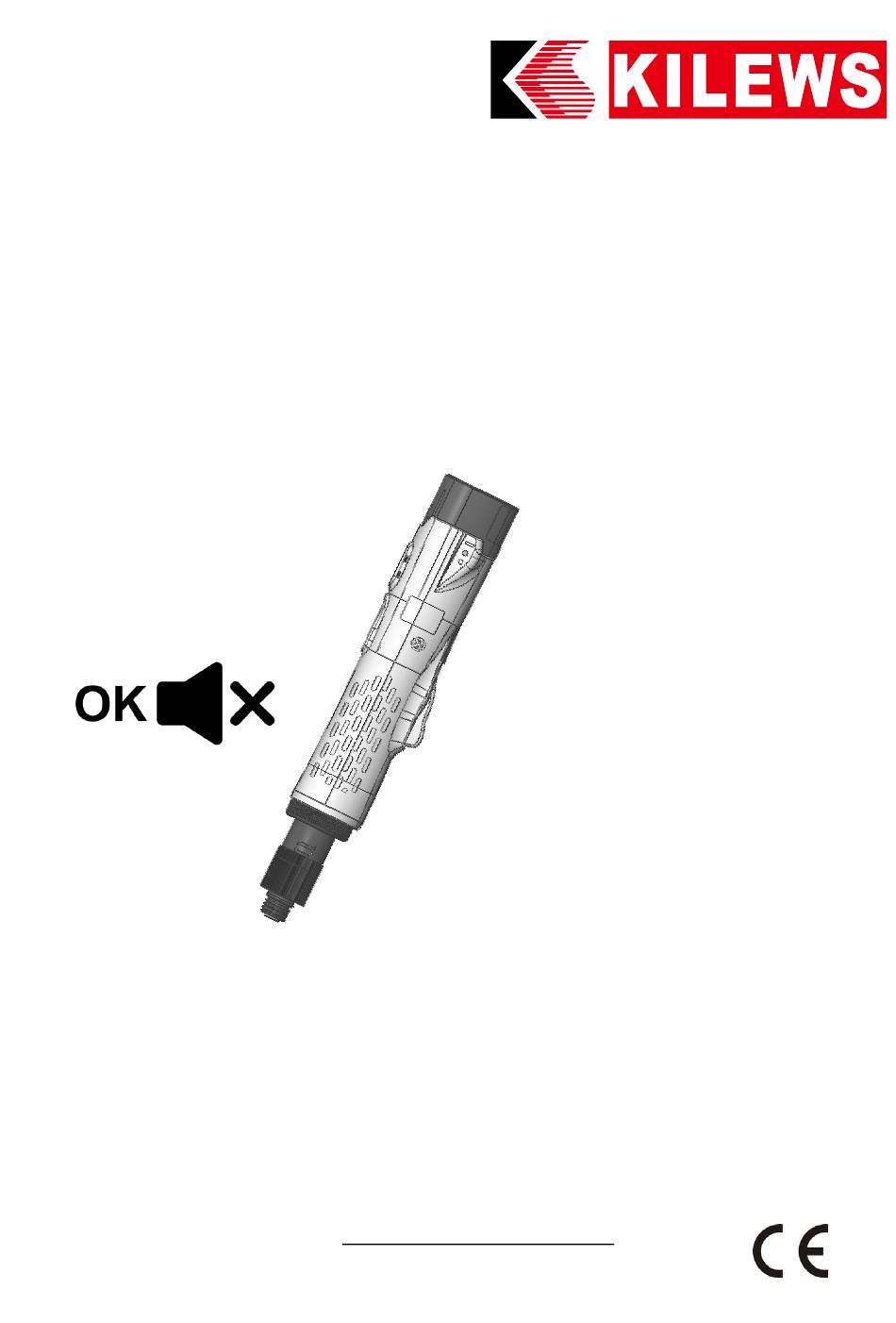

- Page 1 Automatic Industrial Cordless Brushless Power Torque Screwdrivers Series OPERATION AND MAINTENANCE MANUAL SKC-PTA-BS20P SKC-PTA-BS30P SKC-PTA-BS45P Rechargeable -TYPE Automatic Brushless Series KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F151A-13E-007...
-
Page 2: Icon Instructions
Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely (including the spare parts view). The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1. - Page 3 16. To prevent parts in gearbox from damage, replace the grease at least once for every year. 17. It is necessary for the operators to read and follow up all the operating instructions in this manual. KILEWS is not responsible for any personal injury that might cause of disobeying the safety advices.
- Page 4 2. Do not attempt to disassemble or reassemble the device it may result in poor performance or danger of injury, the warranty applies only to initial package. 3. Do not repair the device with other than genuine KILEWS replacement parts may result in poor performance or danger of injury, the warranty will be considered void.
- Page 5 Operating Instructions 1. Charge the battery in the charging station before first use to make sure operates at its highest capacity. To ensure operators against injuries, Don't Press Pressure plate trigger before start or disassemble the device and push down screwdriver. 2.
-
Page 6: Function / Operating Introduction
Function / Operating Introduction Function Name Figure Description push down the screwdriver to start Trigger Switch Bit Sleeve Torque Fixing Ring Torque Fixing Ring/Coupler Driver Hook S waist Screw Hole S Waist Hook OK/NG/Power/Hi&Lo Indicating Light Manual / Function 1. Full Auto Shut-Off Screwdriver It stops automatically when the screw has been tightened up and reached the set-up torque level. - Page 7 (3) Bit Sleeve To Switch the bit and compatibility, pull the head of the type B screwdriver, and install the bit according to the diagram below, and push it in following the arrow indicated on the diagram. (4) Torque Adjustment Ring: Turn torque adjust ring counter clock wise to increase torque output, on the other hand decrease torque output by turning torque adjust ring clock wise.
- Page 8 (9) OK/NG/Beep Sound Indicating Light Explanation Signal Indicator Release switch Screw reaches Current Start Screw NG Sound Judgment to stop running set torque Protection Running No lights Signal green Indicator Stop No lights No lights No lights No lights No lights Beep Sound 1 short 3 short...
-
Page 9: Other Cautions
11. The torque range of SKC-PTA-BS20P series must be measured by the KILEWS torque meter KTM-150. 12. Kilews cordless screwdriver torque output is generated by clutch mechanism, and it is... -
Page 10: Specifications
Specifications MODEL (SKC- PTA-) BS20P BS30P BS45P INPUT VOLTAGE(DC) DC 10.8V hard joints 0.5-2 2-4.5 TORQUE soft joints (N.m) 0.5-1.6 1-2.4 2-3.6 80%↓ Torque accuracy (%) ±3% Torque adjustment Stepless Duty cycle 1.0s ON 3.0s OFF 1200 1200 Unloaded Speed (min )±10% Machine... -
Page 11: Torque Adjustment Operation
In reverse rotation, the clutch is turned off when a screw is tightened at large torque, set same or higher torque to unscrew. The number from zero to eight on the Torque Scale are reference number only and not an indication of actual torque output. Please refer to Kilews website http://www.kilews.com for the detail component list..
