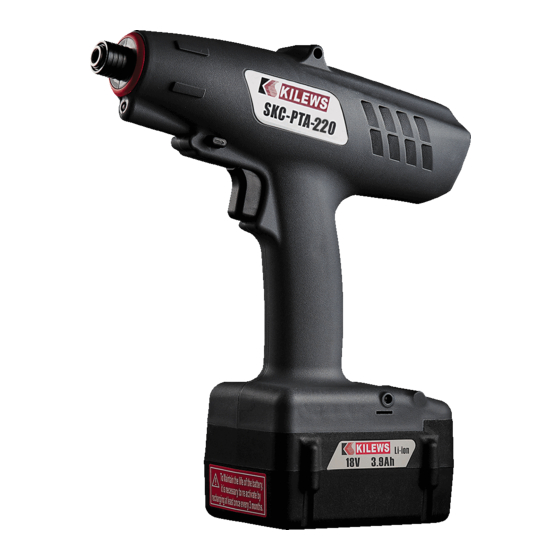

Automatic Industrial Cordless
Brushless Power Torque
OPERATION AND MAINTENANCE MANUAL
CAUTION!!
SKC-PTA SERIES IS ADVANCEMENT IN HIGH TORQUE MOTORS DESIGN.
TO BE MORE SAFTY, ASSEMBLE THE AUXILIARY HANDLE BEFORE OPERATION.
KILEWS INDUSTRIAL CO., LTD.
Screwdrivers Series
http://www.kilews.com
SKC-PTA-220B
SKC-PTA-220W
SKC-PTA-150B
SKC-PTA-150W
SKC-PTA-120B
SKC-PTA-80B
SKC-PTA-50B
Y2F102A-E-007
Advertisement
Related Manuals for Kilews SKC-PTA-220B
Summary of Contents for Kilews SKC-PTA-220B

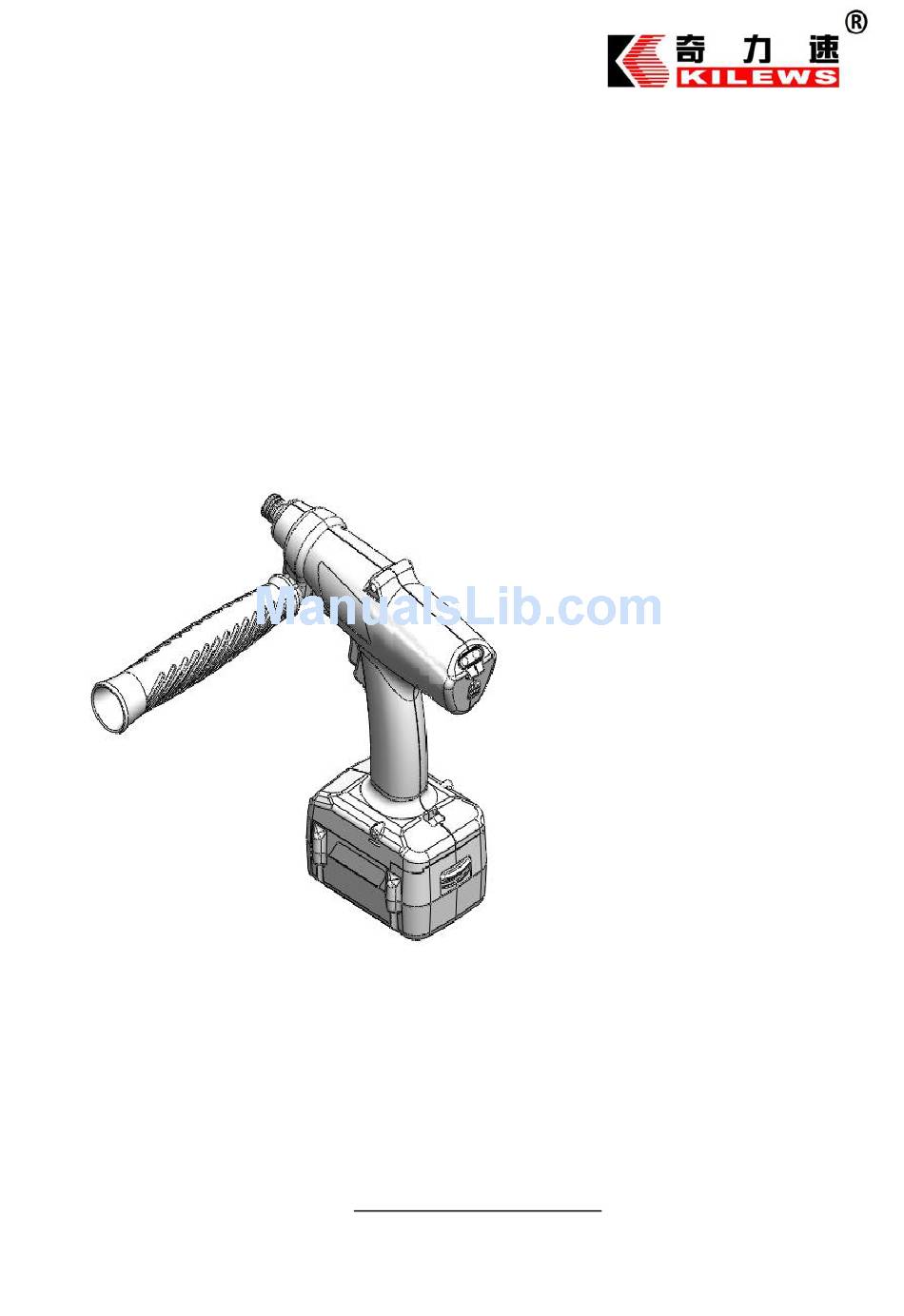

- Page 1 Brushless Power Torque Screwdrivers Series OPERATION AND MAINTENANCE MANUAL SKC-PTA-220B SKC-PTA-220W SKC-PTA-150B SKC-PTA-150W SKC-PTA-120B SKC-PTA-80B SKC-PTA-50B CAUTION!! SKC-PTA SERIES IS ADVANCEMENT IN HIGH TORQUE MOTORS DESIGN. TO BE MORE SAFTY, ASSEMBLE THE AUXILIARY HANDLE BEFORE OPERATION. KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F102A-E-007...
- Page 2 9. CE certification. 5. Do not expose to wet or rain conditions. Accessories Item Quantity Unit Auxiliary handle base Auxiliary handle Adjusting Wrench Manual Guarantee Card Torque rings ass’y Package Waist hook Driver hook Screw M3*0.5P*10LT Screw M6*50 Socket Extension (SKC-PTA-220B/150B/120B/80B/50B) (SKC-PTA-220B/150B/120B/80B/50B)
- Page 3 Warning Read all instructions and make sure the appearance of the device has no damage before you use it. Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. 1. Keep the working area nice and clean. 1.1 Mess and dark areas may cause of accidents.
- Page 4 2. Do not attempt to disassemble or reassemble the device at will which may result in poor performance or danger of injury, the warranty applies only to initial package. 3. Do not repair the device with other than genuine KILEWS replacement parts may result in poor performance or danger of injury, the warranty will be considered void.
- Page 5 2.1 Below illustration is showing the process of correct install & disassemble the rechargeable battery. The beep sound comes along with a flash while the screwdriver is supplied genuine battery installation. It could be operated once the battery has been identified. 2.2 Too slow to install the battery may cause error identification so the beep sound and flash would be continuing.
- Page 6 Function / Operating Introduction (11) (10) Function Name Table Description Description Trigger Switch S waist hook Forward/Reverse Lever Indication light LED Light Torque wrench Bit Sleeve (10) Speed adjustment Torque Ring (11) Wrist strap hole Driver Hook Hole...
- Page 7 Manual / Function 1. Full auto shut-off screwdriver It stops automatically when the screw has been tightened up and reached the set-up torque level. The device will not cause damage of task since no continue running after screws are tightened. (1) Trigger switch The LED lights on when the trigger switch has been pressed about one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;...
- Page 8 (5) Torque ring The purpose of the color ring is to have the torque level visible; there are 5 different types in total, follow the diagram below for installation/removal. Dismantle Removal 1. Remove the color torque ring 2. Tilt the screwdriver slightly upwards 3.
- Page 9 (8) Functional light and the status indicator Whenever the remaining power in the rechargeable battery is fewer than 20%, the tool is still alive but with red flash lights on. Once the remaining power is towards 10% or even fewer it may result in poor performance with the continuing red lights on.
- Page 10 (10) Hi/Lo Switch When the rotating speed needs to be changed, set up the switch to Hi for the fastest rotation, and set up the switch to Lo for slowest rotation. It's possible that the uncompleted shut-off occurs when the switch is setup to Lo and the presetting torque is more than 50% of torque range.
- Page 11 Be sure the small pack model (SKC-LB1815/LB1820) battery is not allow to apply to the power torque tools.(SKC-PTA-150/SKC-PTA-220) 2. The use of other than genuine KILEWS batteries or screwdrivers can’t be active due to the build-in protection system enforce no charging.
-
Page 12: Specifications
Specifications MODEL SKC-PTA-220 SKC-PTA-150 SKC-PTA-120 SKC-PTA-80 SKC-PTA-50 INPUT VOLTAGE(DC) DC 18V TORQUE (N.m) 8~22 4~15 6~12 Torque accuracy (%) ±3% Torque adjustment Internal adjustment Unloaded 1200 2100 Speed n0 (r/min)±10% 1370 Screw size Machine ≤10 ≤8 ≤6 5.0~6.0 4.0~5.0 (mm) screw Weight (Kg)
