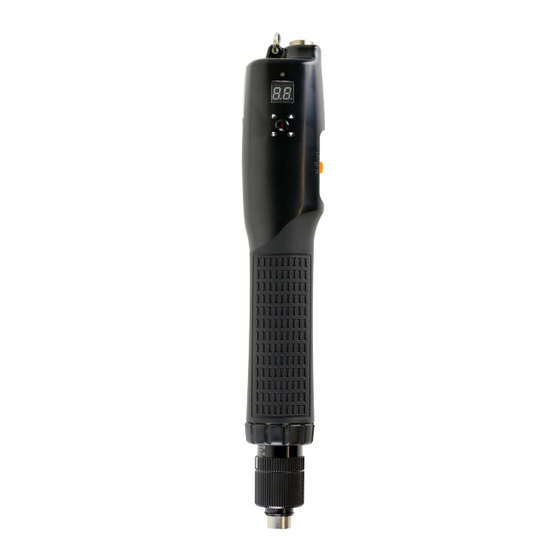

Kilews SKD-BE830PF Operation And Maintenance Manual
Hide thumbs
Also See for SKD-BE830PF:
- Operation and maintenance manual (22 pages) ,
- Operation and maintenance manual (15 pages) ,
- Operation and maintenance manual (15 pages)
Table of Contents
Advertisement
Quick Links
OPERATION AND MAINTENANCE MANUAL
SKD-BE830L
SKD-BE850L
SKD-BE830LF
SKD-BE830P
SKD-BE830PF
SKD-BE850P
Ver. 3.0
DC-TYPE Non-Carbon-Brush Electric Screwdrivers
KILEWS INDUSTRIAL CO., LTD.
www.kilewswest.com
KILEWS WEST USA INC. - 6945 LTC PKWY - PORT ST LUCIE, FL 34986
Y2F055A-E-004
PHONE (772) 293-0071 FAX (772) 465-4368 EMAIL SALES@KILEWSWEST.COM
Advertisement
Table of Contents
Related Manuals for Kilews SKD-BE830PF
Summary of Contents for Kilews SKD-BE830PF
- Page 1 SKD-BE830L SKD-BE850L SKD-BE830LF SKD-BE830P SKD-BE830PF SKD-BE850P Ver. 3.0 DC-TYPE Non-Carbon-Brush Electric Screwdrivers KILEWS INDUSTRIAL CO., LTD. www.kilewswest.com KILEWS WEST USA INC. - 6945 LTC PKWY - PORT ST LUCIE, FL 34986 Y2F055A-E-004 PHONE (772) 293-0071 FAX (772) 465-4368 EMAIL SALES@KILEWSWEST.COM...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed.
-
Page 3: Important Safety Rules
Important Safety Rules Read all instructions Failure to follow all instructions listed below may result in electric shock WARNING! fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 4) Power tool Use and Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use power tool if switch does not turn it on or off.
-
Page 5: Do Not Operate This Tool Without Protective Earth Connected
WARNING！ DO NOT OPERATE THIS TOOL WITHOUT PROTECTIVE EARTH CONNECTED Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE ! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. -
Page 6: Description Of Operation
Operations Cautions 1) Whenever changing a bit, make certain the Forward / Reverse Switch is in the “ OFF “ position and tool is unplugged. 2) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the screwdriver housing as damage will result. -
Page 7: Do Not Attempt To Repair This Electric Screw Driver
2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. -
Page 8: Specifications
1 Pce. Each SKD-BE850 with BIT 2 Pcs. SKD-BE830F with BIT 1# & 2# 1 Pce. Each 2.Suspension rack and Torque fixing ring acceptable for use with the tool are available from KILEWS catalogue. 3.Torque Fixing Ring KC-7C 1 Pce. ... -
Page 9: Panel Specifications
Panel Specifications Name Function To Show operating is OK, N.G or in the mode Three-Color Light condition. To show set value, set screws number and other Panel value Push five seconds: to delete COUNT Power Switch CLEAR Push three seconds: CLEAR SELECT Key Push three seconds: Enter the system Up Key... - Page 10 (1)GND (2)OK ONE (3)N.G (4)OK All Open Collector 接點 (3) OK All (3) N.G (2) OK ONE (1) GND (1) GND (1) GND Push both UP + DOWN set up the buzzer： Fasting a screw, completing work and mistaken operation, buzzer will be on. Wrong operation will be buzzed.
-
Page 11: Torque Adjustment Operation
※LED light flash in simulate-learning.( means under simulate- learning condition), push P key to record value after simulate -learning. ). ※When the screwdriver is left unused: Press “Up” then press “P”, set up the waiting time. Press again “P” to set up the total finishing time 00~99. - Page 12 4. The power supplier will generate low power when the button of the power controller is switched to "LO." Also, the electric screwdriver's torque output setting value should be adjusted to middle torsion value accordingly. 5. Please refer to Kilews website http://www.kilews.com for the detail component list. ...
- Page 14 BE830LF(CE) NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty AA50001-21 CORD ASSEMBLY 2M 電源線 2M 30 GG21515 GEAR SEAT 三點齒盤 AA50001-58N CORD ASSEMBLY 電源線 31 GA81101 GEAR CASE 上離合器筒 CJ20011 SUSPENSION RING 起子吊環...
