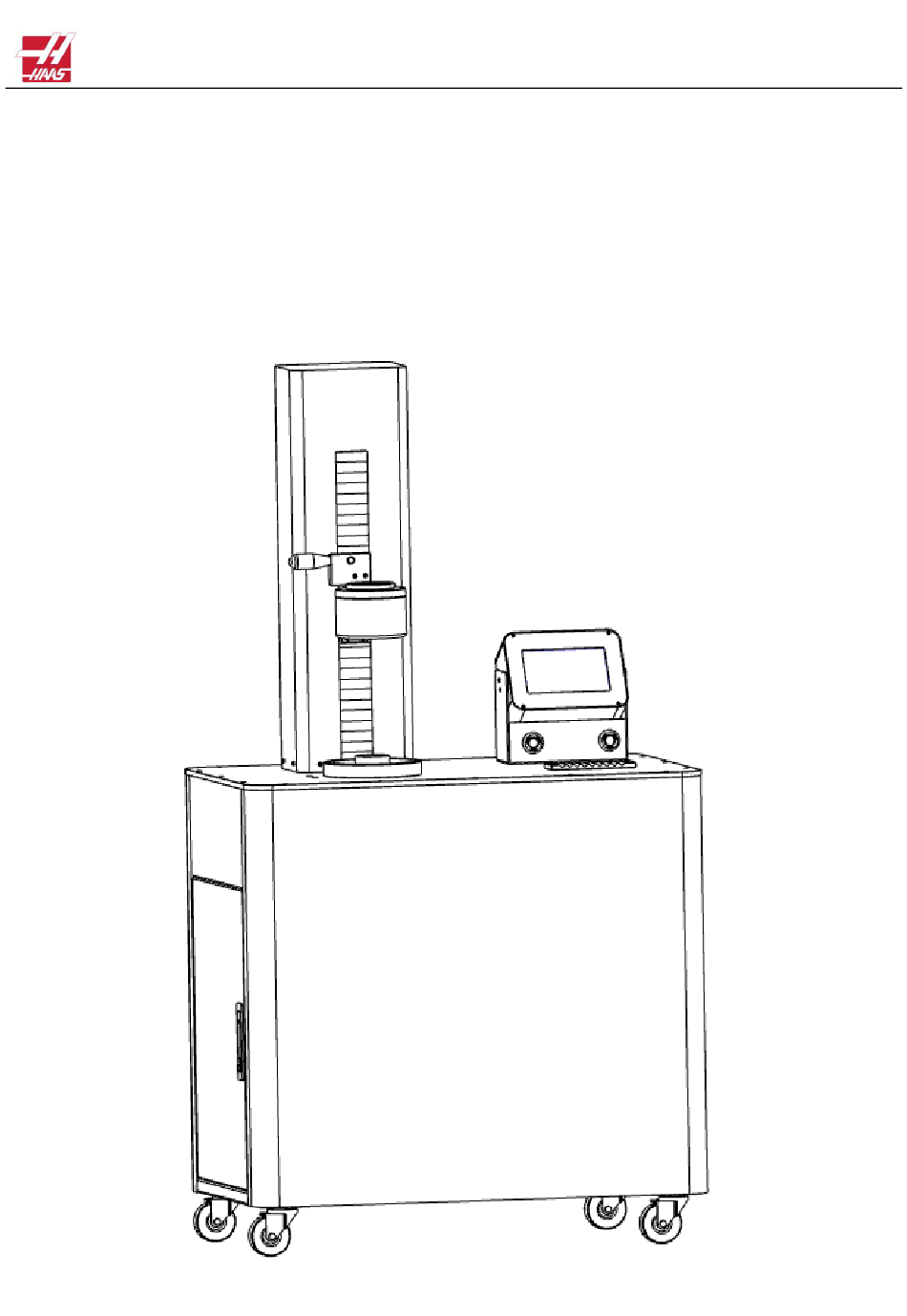

- Page 1 SHRINK FIT MACHINE MANUAL HSF-450...
- Page 2 HSF-450 SHRINK FIT MACHINE 1. SAFETY INSTRUCTIONS 1) HAZARDS OF SHRINK FIT MACHINE The product has passed the functional test and safety test and meets the relevant requirements for use. However, there are certain safety risks for operators who have not...
- Page 3 HSF-450 SHRINK FIT MACHINE ensure that their clothes and body are dry and must not work in a humid environment. Once someone gets an electric shock, please stop working and turn off the power immediately. When operating the machine, please wear protective shoes to ensure safety.
- Page 4 HSF-450 SHRINK FIT MACHINE well-ventilated place. Do not block the air inlet and outlet of the device to ensure the smooth flow of the air duct. 4.2. Environment Requirements Environment temperature: -5℃~40℃. Relative humidity: ≤85%. Power supply: 3-phase 208/240V/15A/50/60Hz ...
- Page 5 2. EQUIPMENT INTRODUCTION APPLICATION HSF-450 functional Shrink fit machine is an electromagnetic induction heating equipment designed for clamping tools with shrink fit tool holders. With heating and cooling system, it is easy and safe to operate. φ3-φ5，h5；φ6-φ32，h6。Tool shank diameter: φ3-φ32 carbide tools, tool shank tolerance: φ3-φ5, h5;...
- Page 6 HSF-450 SHRINK FIT MACHINE HSF-450 (Functional Shrink Fit Machine) Serial number Name Serial number Name Main body Handle Dock interface Operation panel Upright Emergency stop switch Heater Water pump switch Button 4 / 15...
- Page 7 HSF-450 SHRINK FIT MACHINE DEVICE SCHEMATIC 3. INSTALLATION POWER SUPPLY The customer provides the power cord from the equipment to the electric box (three-phase five-wire, single-core cross section not less than 4 square). Cable installation comes with industrial plugs.
- Page 8 HSF-450 SHRINK FIT MACHINE power cord is not less than mm2/piece (copper core) Three-phase five-wire system input 208/240V/50/60Hz (voltage/frequency) External circuit breaker PNEUMATIC COMPONENT Φ12。The customer prepares the air pipe from the air source to the equipment. The outside diameter of the air pipe where the equipment is connected: Φ12.
- Page 9 HSF-450 SHRINK FIT MACHINE 1.3 Parameter selection: The default parameters are the data set at the factory and cannot be changed. User parameters are parameters set by the user according to the actual situation and can be changed. 1.1 Heating time: The default parameter state cannot be changed. When the user parameter state, you can click the white box, enter the heating time value on the pop-up keyboard, and click the save button to save it, which is convenient for the next time.
- Page 10 HSF-450 SHRINK FIT MACHINE ( Total six specifications from Ø3 to Ø32) Insert the toolholer into the base(item2) Press the button 5 and pull the heater handle (item 6), so that the clamping head of the toolholder enters the heating head (item 4). Please note that the length from the end face of toolholder to the bottom of disc is almost 10mm.
- Page 11 Tips: When shrinkfit holder is not used for a long time, the anti-rust oil is needed to avoid rust. SHRINK ATTENTIONS The default parameters are only suite for Haas shrinkfit holder It is forbidden to press the heating button without placing the shrinkfit holder in the heater ...
- Page 12 HSF-450 SHRINK FIT MACHINE wet cloth. During the cleaning process, do not allow liquid to penetrate into the inside of the equipment. Avoid the risk of electric shock due to moisture. Abrasive methods to clean the equipment is not recommend.
- Page 13 HSF-450 SHRINK FIT MACHINE Equipment in contact with liquid； Equipment mechanical failure； Only the professionals can repair the equipment and install the power system, others are prohibited from operating which are not authorized. Warning ! Within 5 minutes of turning off the device, there may still be residual current.
- Page 14 HSF-450 SHRINK FIT MACHINE Tap the screen 20 times continuously, Dislocation of Procedural issues the screen turns blue, display buttons click the coordinate point as instructed Turn on the water pump switch No water when The water pump switch is not ...
- Page 15 HSF-450 SHRINK FIT MACHINE 6. TECHNICAL PARAMETER Theoretical voltage……………………………………………………3 phase 208/240V/50/60HZ Theoretical current…………………………………………15A The length of the installed knife………………………………80~300mm Heating knife diameter…………………………………………Ф3~Ф32mm Heating power……………………………………10KW Heating time………………………………………………4~14 seconds Cooling time…………………………………………30 seconds Cooling method…………………………………………steam cooling + water cooling Water tank capacity…………………………40L Air supply pressure……………………………………………………more than (bar) Dimensions………………………………………………800×650×1600 mm...
