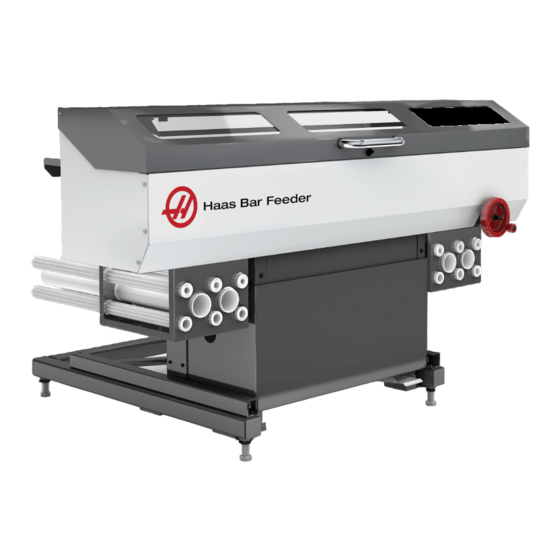

Haas Bar Feeder - Installation - NGC - AD0406
Introduction
Haas Bar Feeder - Installation - NGC
AD0406
Applies to machines built from: June, 2017
The Haas Bar Feeder is for ST10/15/20/25/30/35
and DS-30 lathes. It is not for ST-30/35 or DS-30
lathes with a gearbox. This procedure tells you
how to install a bar feeder that was made after
June, 2017. If you have CHC machine please
follow the procedure below.
Machine Compatibility:
brackets before the bar feeder installation.
Page 1 of 13 pages
HAAS BAR FEEDER - INSTALLATION -
CHC
• NGC software 100.17.000.2030 or
higher
• Haas Bar Feeder installation kit
• ST-10/15/20/25/30/35 NGC lathes built
after Jan 14, 2019 are equipped with I/O
PCB (34-3490B). This I/O PCB does not
have the circuitry to power the Bar
feeder DC motor. Bar feeders built after
Jan 14, 2019 will have a tool changer
PCB kit included in the bar feeder
electrical installation kit. If you receive
a bar feeder that does not have the tool
changer PCB kit you need to order P/N:
(93-32-5502)
• Liner guide adapter kit
•
HAAS CONTROL KEY
Note: Do not remove the red shipping
Note: Do not discard the anchor kit.
LAST UPDATED: 01/28/2020
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Haas Bar Feeder
Summary of Contents for Haas Bar Feeder
- Page 1 DS-30 lathes. It is not for ST-30/35 or DS-30 lathes with a gearbox. This procedure tells you how to install a bar feeder that was made after June, 2017. If you have CHC machine please follow the procedure below.
- Page 2 Haas Bar Feeder - Installation - NGC - AD0406 Haas Bar Feeder - Installation Page 2 of 13 pages...
-
Page 3: Installation
[2] of the lathe. Remove the shipping brackets [3] from the frame of the bar feeder. Pull the bar feeder [1] forward until it locks into position. Find the end of the bar feeder [2]. If the lathe is an ST-35, find the end of the coolant-collector extension [3]. - Page 4 Haas Bar Feeder - Installation - NGC - AD0406 Haas Bar Feeder - Electrical Installation Page 4 of 13 pages...
- Page 5 Haas Bar Feeder - Installation - NGC - AD0406 Find the access door [2] at the bottom of the control cabinet [1]. Open the access door. Install the conduit bracket [3] to the bottom of the control cabinet. Use (2) screws to attach the bracket.
- Page 6 Connect the current command cable, included with the bar feeder, to the connector [1] at the top of the amplifier. Connect the other end of the cable: • Connect to channel 10 (P10) [2] on the Maincon PCB.
- Page 7 Haas Bar Feeder - Installation - NGC - AD0406 For Lathes equipped with the 34-348xA, 34-348xC I/O PCB: Connect these cables from the conduit to the I/O PCB: • Cable 200 to P62 [1] • Cable BF Input to P59 [2] •...
- Page 8 Haas Bar Feeder - Installation - NGC - AD0406 Haas Bar Feeder - Alignment Page 8 of 13 pages...
- Page 9 Set the main circuit breaker to the ON position. Press [POWER ON]. Find the "Parameters" decal on the right rear panel of the bar feeder. Use a Service Key to set this parameter in the Factory parameter tab: •...
- Page 10 Haas Bar Feeder - Installation - NGC - AD0406 Press [EMERGENCY STOP]. Install the 0.75" push rod [2] on the push rod assembly [1]. Refer to the operator's manual for instructions to install the push rod. Turn the adjustment wheel [3] for the transfer table until the table is at the bottom.
- Page 11 Return the push rod to its home position. Step on the release pedal. Push the bar feeder backward to the end of its travel. If the bar feeder is correctly leveled, the gas shock holds the bar feeder in the rear location.
- Page 12 Haas Bar Feeder - Installation - NGC - AD0406 Haas Bar Feeder - Anchor Instructions Turn the rear feet [1] until they are parallel to the bottom rails, as shown. The front feet [2] must remain perpendicular to the bottom rails, as shown.
- Page 13 Haas Bar Feeder - Installation - NGC - AD0406 Haas Bar Feeder - Calibration Instructions Perform this procedure one time at installation. The Run/Setup Key Switch must be in Setup Mode to calibrate the EOB Switch. Press [RECOVERY] button to enter the bar feeder recovery mode.
