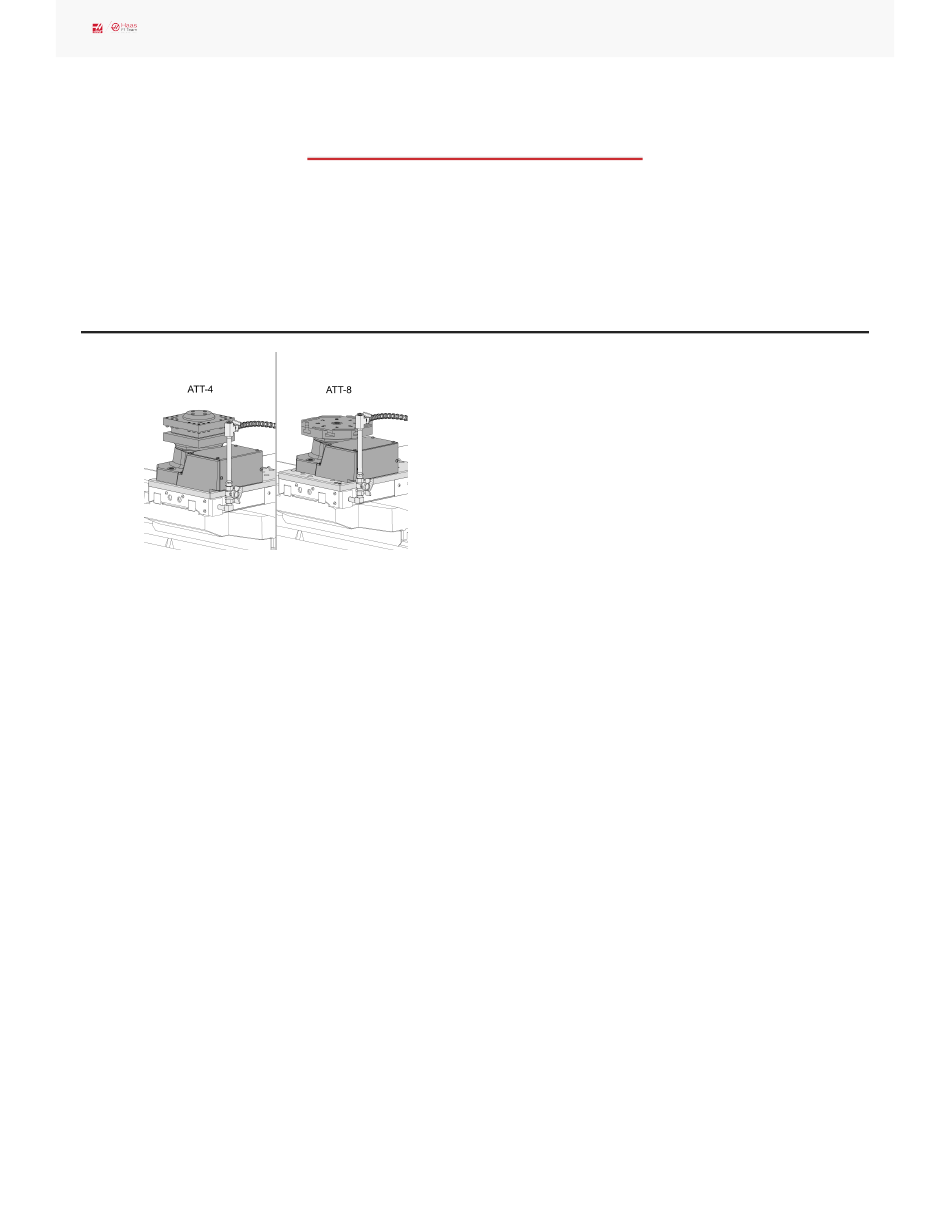

TL-1/2 - ATT-4/8 Turret - Installation and Alignment - AD0304 LAST UPDATED: 02/18/2019 TL-1/2 - ATT-4/8 Turret - Installation and Alignment AD0304 Applies to machines built September 2014 and after Introduction This procedure tells you how to install a ATT-4/8 turret on a TL-1 or TL-2 lathe.
TL-1/2 - ATT-4/8 Turret - Installation and Alignment - AD0304 Installation Page 2 of 10 pages...
Page 3
TL-1/2 - ATT-4/8 Turret - Installation and Alignment - AD0304 Move the cross-slide approximately 10" (25 cm) away from the spindle. Move the cross-slide forward to get access to the way cover. Use the air hose to clean the table and the way cover.
Page 4
TL-1/2 - ATT-4/8 Turret - Installation and Alignment - AD0304 Remove the cover [1] on the top of the electrical cabinet. Open the control cabinet door. Install the air solenoid [2] into the air manifold. Connect the air hoses to the air fittings [3].
Page 5
TL-1/2 - ATT-4/8 Turret - Installation and Alignment - AD0304 Install the 30-Amp servo amplifier [1] into the amplifier bank section that has the label "Tool Turret." Route the servo motor power and encoder cables from the top of the electrical cabinet [2].
Page 6
TL-1/2 - ATT-4/8 Turret - Installation and Alignment - AD0304 Remove the cross-slide way cover [4]. Remove the cover plate [9] for the coolant hose. Remove the breakout tab [8] from the cover plate. Remove the coolant hose assembly [7].
Page 7
TL-1/2 - ATT-4/8 Turret - Installation and Alignment - AD0304 For Classic Haas Control: • Set Setting 7, Parameter Lock, to OFF. • Set Parameter 710, Tool Changer Type, to 4. • Change Setting 113, Tool Change Method, to AUTO.
Page 8
TL-1/2 - ATT-4/8 Turret - Installation and Alignment - AD0304 Test Operate this code in MDI mode: For the ATT-4: M99; For the ATT-8: M99; Important: Once clamped at each tool #, verify that the load is always below 5%.
Page 9
TL-1/2 - ATT-4/8 Turret - Installation and Alignment - AD0304 Turret - Alignment Page 9 of 10 pages...
TL-1/2 - ATT-4/8 Turret - Installation and Alignment - AD0304 Make sure the mounting screws are sufficiently loose to do the alignment procedure. Put the tip of the indicator on the horizontal surface [1]. Jog the X axis to measure along the horizontal surface.
