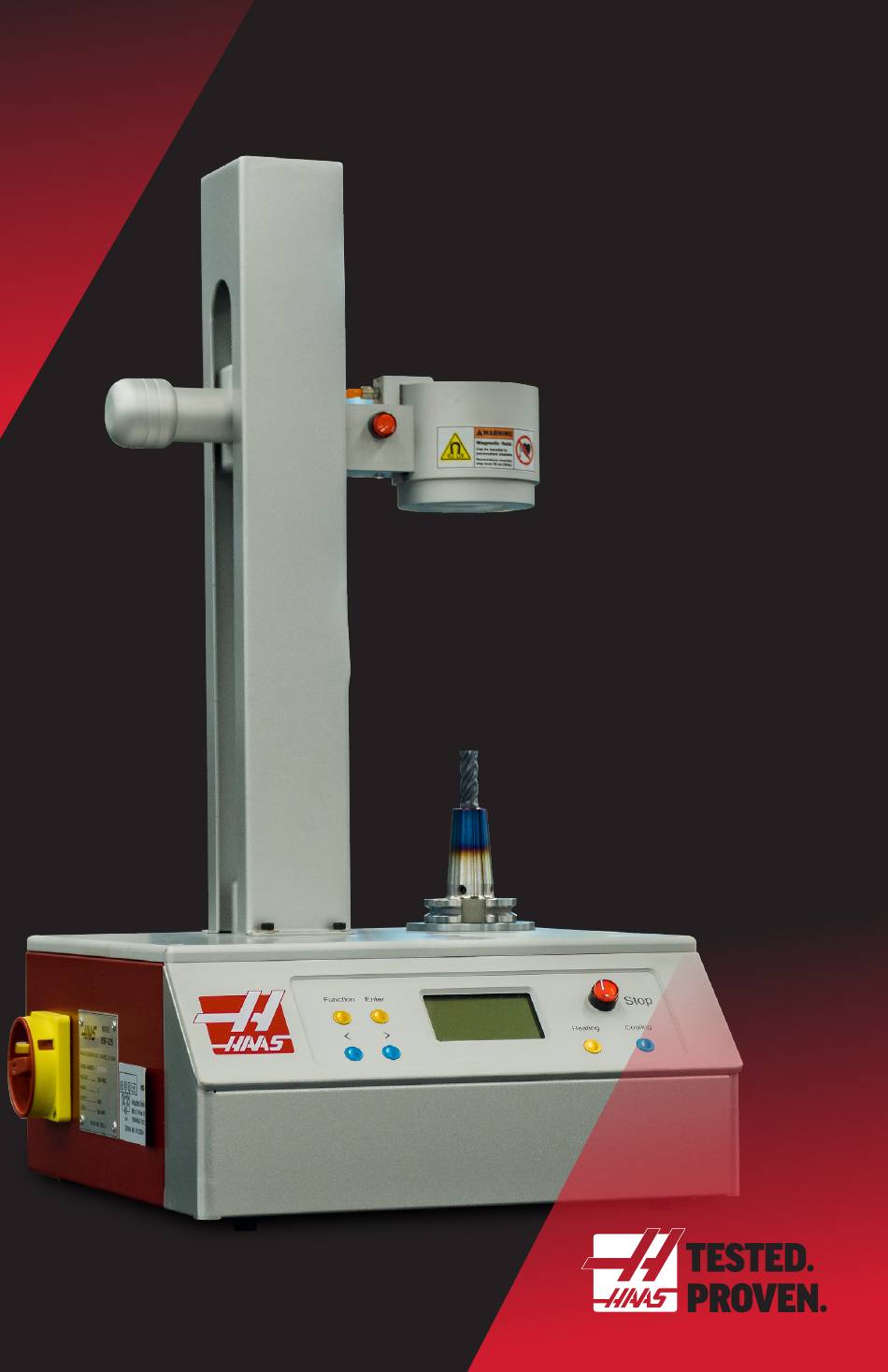

- Page 1 HSF-325 Induction Shrink Fit Machine USER’S GUIDE Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746...
- Page 2 1. Install the up/down guide rail. Fasten the rail to the base with the provided screws. 2. Attach the heating head to the holder on the guide rail, and connect the wires. 3. Connect the hose for the cooling air. 4. Install the toolholder sleeve. Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746...
- Page 3 2. Tool sleeves (as ordered) 3. Main power supply cable ×1 4. Spare fuse 5. Pickup springs: 4 mm ×2; 6 mm ×2; 8 mm ×2; 10 mm ×2 6. User’s Guide ×1 Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746...
- Page 4 If the fit between the toolholder and cutting tool is too loose, the tool is more likely to pull out of the holder during cutting operations. Please choose cutting tools with the appropriate precision. Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746...
- Page 5 If you are experiencing issues, contact your local HFO for service. DO NOT approach or operate this machine if you are wearing a pacemaker or other device that can be affected by electromagnetism. Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746...
- Page 6 3. Induction Heating Head 10. Heating Key (Start) 4. Tool Sleeve 11. Cooling Key (Cooling) 5. Main Power On/Off Switch 12. Stop Button (Stop) 6. Function Key 13. Manual Heating Button 7. Left/Right Arrow Keys Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746...
- Page 7 (use a rag/cloth to remove oil residue). • Lower the induction heating head over the clamping portion of the toolholder. The table below shows the recommended heights: Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746...
- Page 8 Push the Cooling key to start the air blast cooling; push the Stop button to turn off the air blast. ! Notice: This machine has a fast heating capacity! The maximum recommended heating temperature is 400°C. Temperatures higher than 400°C may damage the toolholders. Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746...
- Page 9 Once the heating cycle is complete, insert/remove the cutting tool. Push the Cooling key to start cooling; it will stop after the set time reached. Push the Stop switch to stop heating/cooling at any time. Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746...
- Page 10 ! Notice: This machine has a fast heating capacity! The maximum recommended heating temperature is 400°C. Temperatures higher than 400°C may damage the toolholders. Please contact your toolholder supplier for detailed heating specifications. Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746...
-
Page 11: Additional Information
1. Power Supply: 220V AC 60 HZ, 3 phase + ground terminal 2. Max. consumption power: 10,000 Watts 3. Dimensions (W x D x H): 15" x 16" x 25.75" (380 x 405 x 655 mm) Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746... - Page 12 HSF-325 USER’S GUIDE ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ Haas Automation, Inc. | www.HaasCNC.com | 800-331-6746...
