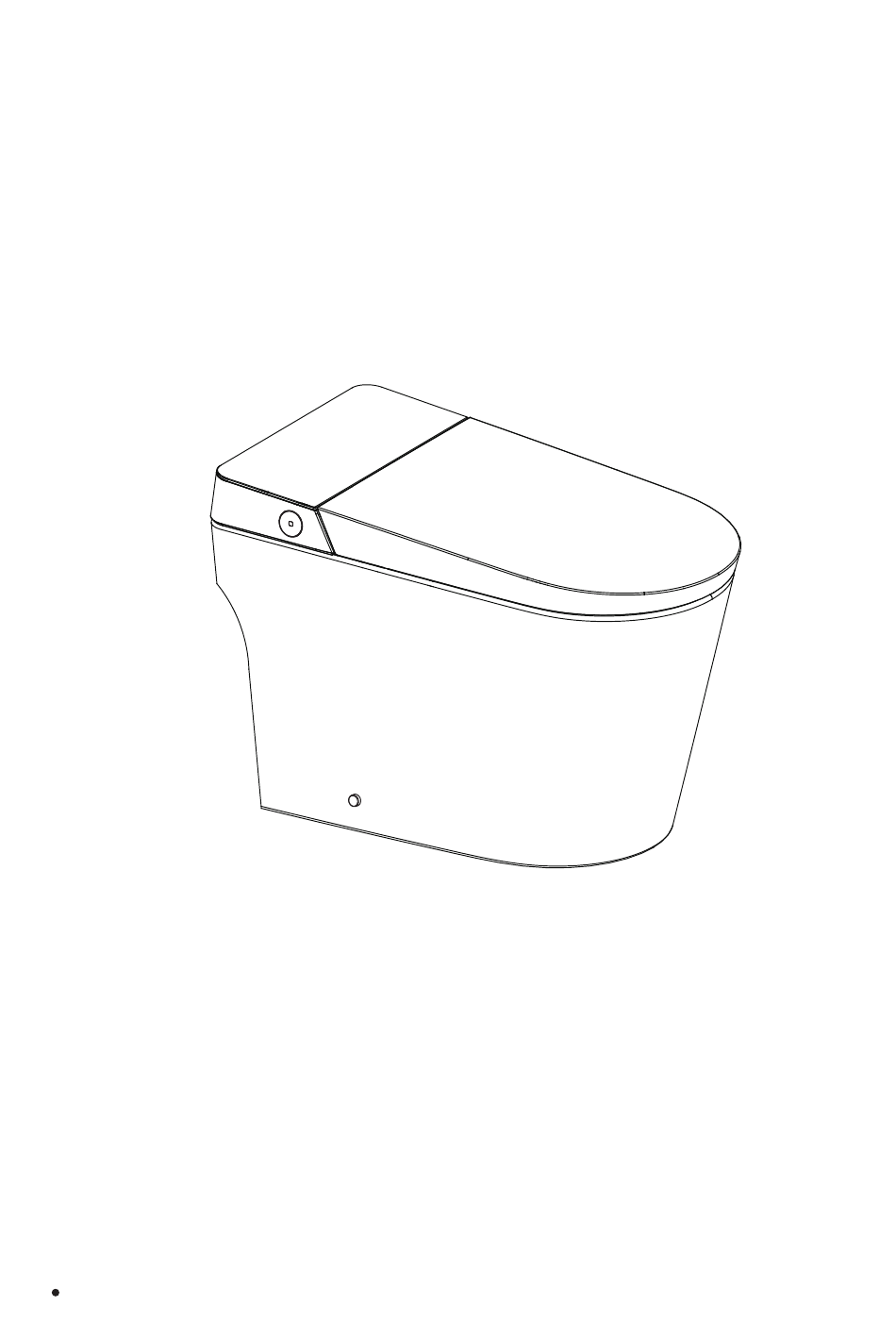

- Page 1 Model: WC-G19 Installation Manual Thank you for choosing our products. Please read the instructions carefully before installation and keep it available for future maintenance or reference.
- Page 2 Content Safety instructions Technical specification List of materials Technical drawing FCC Statement IC Statement Parts identification Toilet installation Preparation Lid auto open/close Foot sensor Maintenance 1. Main unit care and maintenance 2. Filter maintenance 3. Spray nozzle maintenance and care Emergency troubleshooting 1.
- Page 3 IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
- Page 4 Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the product to a service center for examination and repair. Keep the cord away from heated surfaces.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS Indicates that failure to follow the instruction may cause CAUTION – body injury or property damage. Do not install or use the product in wet places as steam room etc. It is recommended to use water-proof electrical outlet which should be installed in a place where is not easily to get wet.
- Page 6 10. N'utilisez pas de produits chimiques agressifs ou de brosses pour nettoyer ce produit. 11. L'exposition directe au soleil est interdite. 12. Utilisez uniquement de l'eau du robinet ou de l'eau potable, sinon vous risquez de causer des éraflures. 13. Ne raccordez pas l'alimentation en eau à la sortie de l'appareil de chauffage. S'assurer que la température de l'eau d'entrée est comprise entre 3~35℃/37.4~95℉.
- Page 7 Technical specification Rated voltage 110V-120V, 50-60Hz Rated power 865W Main Unit Water proof IPX4 Power cord length About 2.2m Flush volume 1.6/1.1Gpf, 6.0L(full flush)/4.1L(half flush) Flushing mode Siphonic jet Rough-in 305mm Toilet Outlet outside diameter ≤100mm Drainage method S-trap 0.09MPa (dynamic pressure, flow rate of Water pressure range 3.96+Gal/min or 15.0+L/min) - 0.8MPa (static pressure)
- Page 8 Warm air volume Over 0.2m /min Warm air temperature 6-level adjustment Drying device Heating power 250W Thermal fuse, Temperature sensor, Safety device Thermostat Deodorization Deodorization method Photocatalyst-free Surface temperature 6-level adjustment Heating power Heated seat After 10 minutes of use, the seat temperature Burn protection will automatically drop slowly to a low level Seat sensor, Temperature sensor, Thermal...
- Page 9 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 10 List of materials Main Unit Remote Control Components Sealing Flange Installation Cardboard Installation Manual Braided hose Installation Manual (Installed) NPT 1/2 Angle Valve Mounting Kit Battery box (optional)
- Page 11 Technical drawing 700mm 1. The drawing is for reference only, and we reserve the right to modify the product appearance. 2. Product appearance is subject to change in kind.
- Page 12 Parts identification Left side Bumper Button Seat Ceramic toilet Right side Nozzle shield Dryer shield Rear Front washing Remote control washing sensor Spray nozzle Touch the sensing area with foot (optional)
- Page 13 Toilet installation Precaution before installing 2. Installation of battery box (Suitable for fuction with power off flush.) Minimum dynamic working water Before activating the power-off flushing pressure: 0.09+MPa (3.96+Gal/min or function, install a 9V alkaline battery (not 15+L/min), failure to meet this pressure supplied) into the battery box in advance.
- Page 14 3. Cardboard installation 5. Mounting bracket installation Assemble the mounting bracket with Align cardboard with the centerline of bolts and then install them to the drain outlet. pre-installed flange plate on the ground Draw contour line according to cardboard. and lock tight with nuts. Mounting bracket Drain outlet Washer...
- Page 15 6. Ceramic toilet installtion 7. Screw installation Install a sealing flange into drain outlet. Put the screw through the fixing sleeve and then install it through the holes (on Install ceramic toilet on the corresponding both sides of the toilet ceramic) to the position.
- Page 16 Preparation 1. Turn on the angle valve Check the threaded connection for leaks to ensure complete sealing. Turn the angle valve counterclockwise to the full open position. (Note: The angle valve opens with a large torque for the first time.) Angle valve 2.
- Page 17 Lid auto open/close The intelligent toilet can achieve the function of auto lid open/close. On closed situation, so please function the auto lid open/close function by using remote controller. 1. Approaching the toilet When user enters the sensing range, the seat lid opens automatically.
- Page 18 Foot sensor If the model you purchased is with foot sensor, 1. When the lid and seat are both closed, touch the sensing area with foot to open the lid. Seat 2. When the lid is open and seat closed, touch the sensing area with foot to open the seat. Seat 3.
- Page 19 Maintenance Main unit care and maintenance Spray nozzle maintenance and care 1. Shut off power supply before doing 1. Nozzle self-cleaning maintenance. When no one is seated, short press 2. Use only a soft, damp cloth to clean. “REAR/MOVE” Button on the main unit, Avoid using harsh chemicals.
- Page 20 Emergency troubleshooting Power and water failure Product unused for a period of time Put around 2.1Gal (8L) water into a barrel When the product is left unused for a and flush the ceramic bowl. long time, especially in cold weather, it is highly recommended to drain the Note: Avoid water spilling from bowl.
- Page 21 Failure of remote control If the toilet with power off flush function. 1. Operate via buttons on the main unit. 1. No power Short press "Flush" Button on the main unit to flush. Short press “Flush” button Button 2. Battery replacement Unplug DC connector and remove the battery box.
- Page 22 Description of the button function 1. When no one is seated, press and hold Stop Button to enter shutdown mode (white light off), press Stop Button again to return to functional mode (white light always on). In shutdown mode, all functions and buttons (with the exception of the Stop Button) will not operate.
- Page 23 Troubleshooting guide Problem Cause Solution Water supply hose is kinked Straighten the hose to remove the kink No water Angle valve is off Turn on the angle valve from nozzle A water failure occurred Restore the water supply Water supply hose is kinked Straighten the hose to remove the kink Poor water Angle valve is not fully...
- Page 24 The picture of product may not be entirely consistent with actual appearance and color because of product improvements, please in kind prevail. ASVFA72710003A-1.3...
