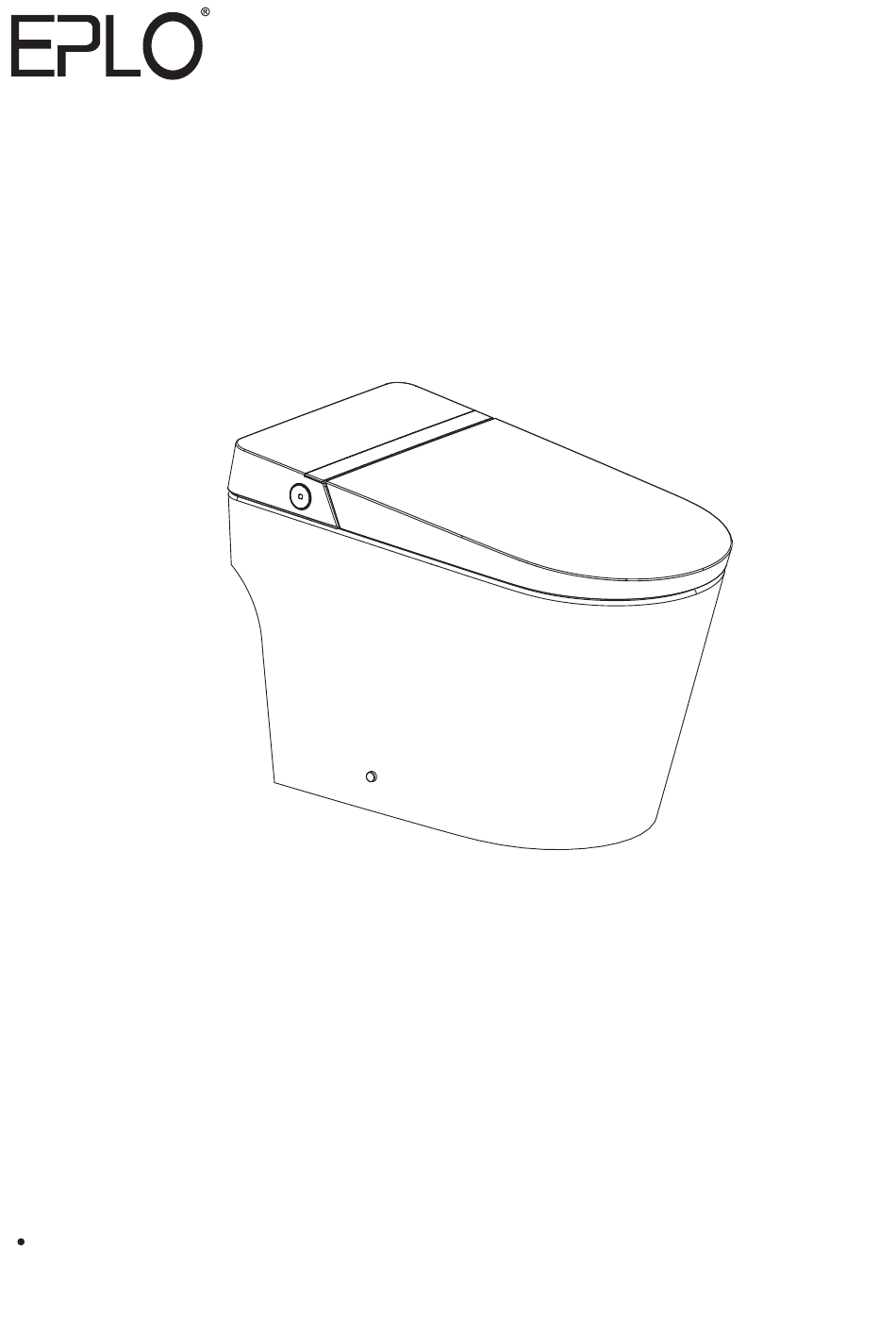

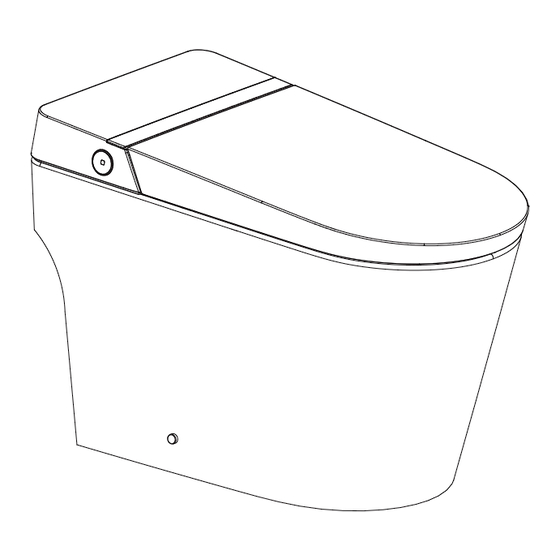

- Page 1 Model : EP-G18 Installation Manual Thank you for choosing our products.Please read the instructions carefully before installation and keep it available for future maintenance or reference.
-
Page 2: Table Of Contents
Content Safety instructions Technical specification List of materials Technical drawings Parts identification Toilet installation Previous preparation Auto lid open/close Foot sensing Daily maintenance 1. Main unit care and maintenance 2. Maintenance of filter net 3. Spray nozzle maintenance and care Emergency troubleshooting 1. - Page 3 IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: 1. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
-
Page 4: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION – Indicates that failure to follow the instruction may cause body injury or property damage. 1. Do not install or use the product in wet places as steam room etc. 2. It is recommended to use water-proof electrical outlet which should be lnstalled in the place where is not easily got wet. -
Page 5: Technical Specification
Technical specification Model EP-G18 Rated voltage 110V-120V,50/60Hz Rated power 1170W Main Unit Overall unit Waterproof IPX4 Electrical wire Length is about 2.2m Flush volume 1.6/1.1Gpf（full flush6.0L/half flush4.1L） Flushing mode Siphonic jet Rough-in distance 305mm Toilet Outlet outside diameter ≤100mm Drainage method Down-drain 0.09MPa (dynamic water pressure, flow rate... - Page 6 Model EP-G18 Deodorization Deodorization Method Lightless catalyst Surface temperature 6 different level adjustment Heating power Heated burning Heated seat The seat temperature will automatically lower to level 1 in 10 minutes after using protection Sensed area,Temperature senor, Thermal fuse, Safety device...
-
Page 7: List Of Materials
List of materials Main Unit Remote controller components Sealing Flange Installation Cardboard Installation Manual Thank you for choosing our products.Please read the instructions carefully before installation and keep it available for future maintenance or reference. Installation Manual Flange NPT 1/2 15/16-14UNS Angle Valve option 1 Angle Valve option 2... -
Page 8: Technical Drawings
Technical drawing 27 1/2" 1.The product drawing is for reference only, and we reserve the right to modify the appearance of the product. 2.If the appearance of the product is changed, the actual product shall prevail. -
Page 9: Parts Identification
Parts identification Left side Bumper Display button Seat Ceramic toilet Right side Spray rod baffle Warm-air baffle Rear Front Remote washing washing sensing window Spray nozzle Use the foot to touch the sensing area... -
Page 10: Toilet Installation
Toilet installation Precaution before installing Installation Method 2: Minimum dynamic working water pressure: 5/8′′ 0.09MPa or more (3.96Gal/min(15L/min) or more), failure to meet this pressure will not achieve the best flushing effect. Remark: Apply the methods below if you don’t have water pressure testing device. 2. - Page 11 4.Mounting bracket installation 6.Screw installation Put the screw through the fixing sleeve and Assemble the mounting bracket with bolts then install it through the holes(on both sides and then secure them to the pre-installed of the toilet ceramic) to the mounting bracket flange on the ground and tighten with nuts.
-
Page 12: Previous Preparation
Previous preparation 1. Turn on the angle valve Check thread connection, make sure no leakage is found, unscrew angle valve anticlockwise to maximum opening. (Tips: When opening for the first time, the angle valve handle has a larger torque) Angle valve 2.Power Connection Insert power line leakage protection plug into the power socket, press the reset switch, plug indicator lights on indicating that the power is on. -
Page 13: Auto Lid Open/Close
Auto lid open/close The intelligent toilet can achieve the function of auto cover open/close. on closed situation, so please function the auto cover open/close function by using remote controler. 1.Approaching the toilet When approaching the toilet, the mechanism will detect the movement and the cover will open automatically. -
Page 14: Foot Sensing
Foot sensing The toilet is equipped with foot sensor cover-open function, it can make cover auto-open by sensing foot movement. 1.When the cover and seat are both closed, put the foot within the sensing area and then cover opens automatically. Cover Seat The effective distance of sensor foot function is less than 3±1cm,... -
Page 15: Daily Maintenance
Daily maintenance Spray nozzle maintenance and care Main unit care and maintenance 1. Shut off power supply before doing 1. Nozzle self-cleaning maintenance. While not sitting on the unit, short press 2. Wipe the stain with a soft damp cloth. the “REAR/MOVE”... -
Page 16: Emergency Troubleshooting
Emergency troubleshooting When the product is left unused for Electricity and water cut off long time Put around 2.1Gal (8L) water into a barrel and flush the bowl of ceramic. Especially in winter when no one at home for a long time, please drain out the water Note: Avoid water spilling from bowl. -
Page 17: Description Of The Button Function
Description of the button function 1. Press and hold the “Stop” button on the unit, the unit enters the shutdown mode (white light off), press the “Stop” button again, the unit returns to the working mode (White light normally on).[In the shutdown mode, except for the “Stop”... -
Page 18: Display Led Description
Display LED description intelligent water temperature temperature display seat temperature ECO energy saving night light Description of display LED light: 1. During the power on self-test stage, the icons of intelligent night light, water temperature, seat temperature and ECO are all on, and the temperature is displayed at 88 ℉. -
Page 19: Troubleshooting Guide
Troubleshooting guide Problem Cause Solution Water supply hose buckling Solve the buckling causes block No flushing Turn on the angle Valve Angle Valve is off Connect water supply and Water supply is cut off wait for the water Water supply hose buckling Solve the buckling causes partial block Angle Valve is not fully... - Page 20 Due to the product improvement, the picture in this description may not be completely consistent with the real product. So the appearance and color shall be subject to the real product. AQVF040100002A-1.0...
