Intercoax ECP-101R Quick Start Manual page 2

Installation Guide
1. Other than automatic IP setting (i.e. DHCP), set the IP address on
the camera following the camera manufacturer's manual.
2. Set the Data Rate (10M / 100M) of the ECP-101T (transmitter) and
the ECP-101R (receiver) to the same.
3. Set ON the PoE switch of ECP-101T (transmitter) to supply power to
the camera.
IF use a device such as a PC instead of a camera, set the PoE switch
Î
to the OFF position.
4. Connect BNC connectors of coaxial cable to each ECP-101T (Tx)and
ECP-101R(Rx).
5. Connect 57V DC power to ECP-101R(Rx) first and then to AC outlet.
The total distance may vary with the type and condition of cables,
Î
and power consumption of PoE camera.
6. When they are connected without any problem, PWR and BNC LINK
LED are on.
7. Adhere the brackets in the package to ECP-101T(Tx)/ECP-101R(Rx)
and then fix up the products.
8. Connect the UTP(LAN) cable between ECP-101R(Rx)and NVR first
and then between ECP-101T(Tx) and camera.
9. Make sure that the ACT/LINK LED on ethernet interface and ACT
LED on BNC interface are on and flickering.
Both ECP-101T(Tx) and ECP-101R(Rx)send data and power together
Î
via BNC connector and ECP-101R(Rx)can be powered by PoE Switch
Device (PoE+ PD Supported) but for safe working, it recommeded to
use 57VDC Power supply on ECP-101R.(when using both PoE switch
Device and power supply at the same time, power supply works
preferentially.)
Ping test is recommended to confirm the whole network.
Î
10. Check the video image on the monitor.
Specification
Model
1 x 75Ω BNC (Female) - Ethernet over Coax
Coax
(B-LinX)
Interface
Ethernet 1x RJ45 - 10/100 Base-T with Manual selection
Transmission Rate 10/100Mbps Full Duplex
Ethernet up to 700 m (RG-6)
Transmission
Distance
PoE (PoC) up to 700 m (RG-6 / 15W output)
Ethernet 1 x Link / Act (Green) / 1 x PoE (Green)
LED
EoC 1 x Link (Blue) / 1 x Act (Green)
Indication
Power 1 x Power On(Green)
Input B-Linx or DC48V~57V
IEEE802.3af(PoE),
Power
PoE Output IEEE802.3at (PoE+),
Extra PoE up to 60W
PoE Input Not Supported
Dimension 66.4(L) x 61.6(W) x 24(H)mm
Mechanical
Weight 77g
Operating Temp -20 ~ 60°C
Environment Storage Temp -30 ~ 80°C
Relative Humidity 10% ~ 90%
Certification FCC, CE, KC, RoHS
Compliance
Surge Protection IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)
Optional Accessories 57VDC / 1.2A External Power Supply
ECP-101T ECP-101R
PoE Not Supported
PoC Only
Up to 25.5W (PD)

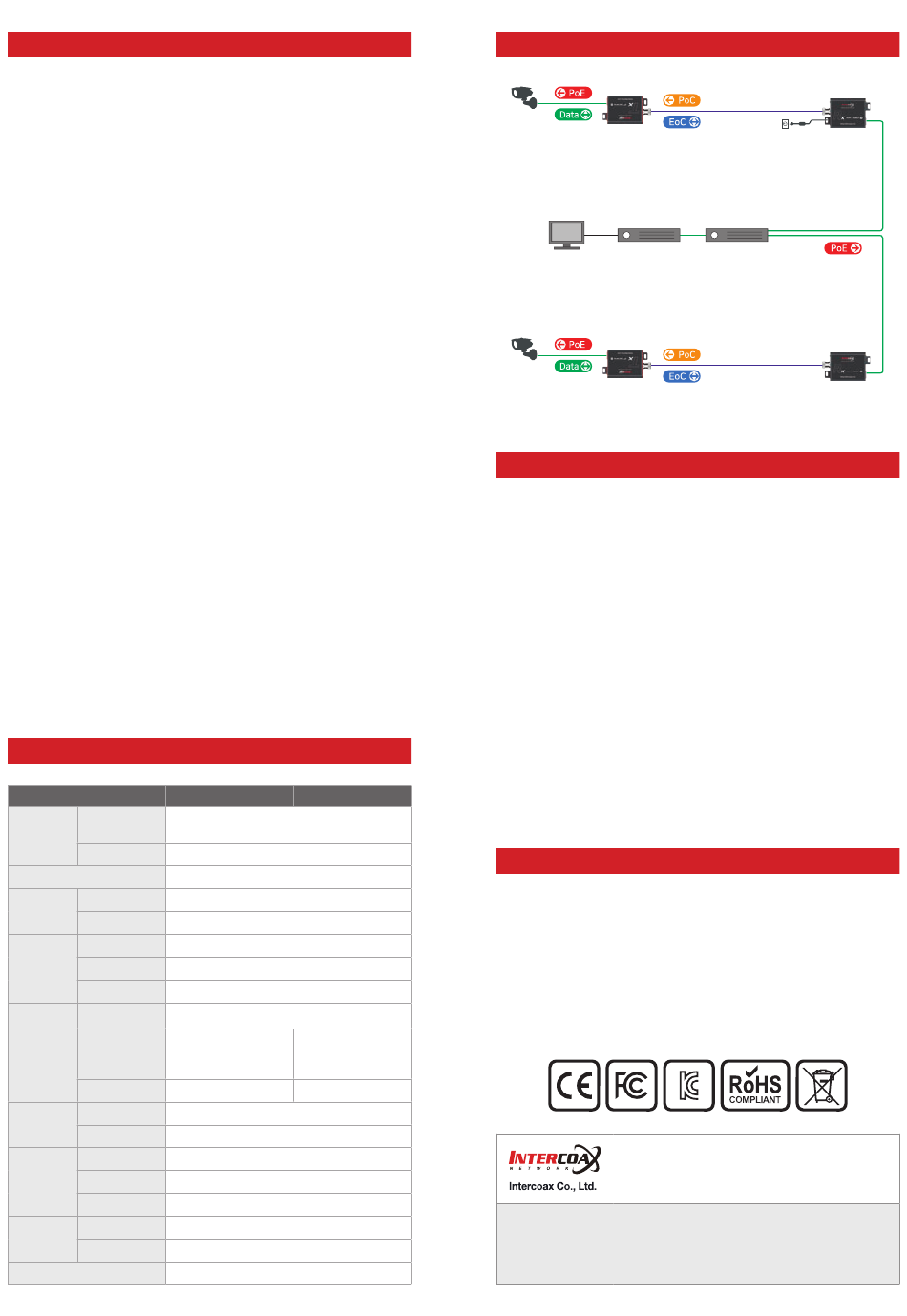

Applications
PoE
Camera
ECP-���T
NVR
PoE
Camera
ECP-���T
Caution
 Please install the device following the installation guide.
 Do not touch the device and cable with wet hands.
 Keep away from moisture and shock.
 Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus that produce heat.
 Indoor use only. (Use waterproof junction box when it is used in
outdoor)
 Do not use for other purposes.
 Do not disassemble or modify this device.
 Do not put any sticker or paint on it.
 If this device is defective or malfunctioning, please unplug the power
source immediately and contact dealer or service center.
 Please use the rated power supply for the product.
 Connect DC power to this device first and then to AC outlet.
 Recommend grounding(Earth) between the PoE camera and the
ECP-101T, ECP-101R and power adapter outlets.
Warranty
 This device has passed the quality control and product inspection.
 Please install and use according to the installation guide.
 The warranty period for this product is 24 months from the date of
purchase.
 If this device is defective or malfunctioning, please unplug the power
adapter immediately and contact dealer or service center.
 Any damages or breakage from user's abuse, accident, modification
or natural disasters will not be covered manufacturer's warranty.
Please visit below website for more detailed information.
Web: http://www.intercoax.com Tel: +82. 31. 365. 3133~4
E-mail: info@intercoax.com
This device complies with part 15 of the fcc rules. Operation is subject to the
following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference
that may cause undesired operation
Coaxial Cable
ECP-���R
��V DC/�.�A
Power Supply
PoE Switch
Coaxial Cable
ECP-���R
Fax: +82. 31. 365. 3135
© Intercoax Co., Ltd.
