Intercoax ECP-101R Quick Start Manual

Quick Start Guide
ECP-101T / ECP-101R
Please read carefully the instruction manual before use.
Contents of this manual are subject to change without prior notice
for reasons such as functionality enhancements.

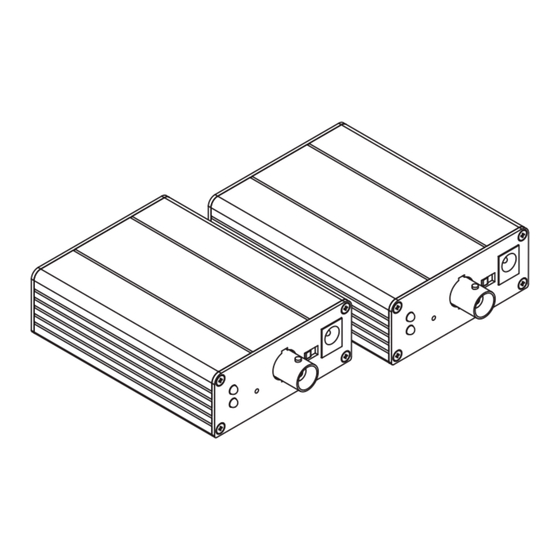

Package
ECP-101T (Transmitter)
ECP-101R (Receiver)
Overview
ECP-101 Series are High-Speed, long distance Ethernet & PoE
extender that makes possible to transmit the Ethernet signal and PoE
up to 700m through Coax cables in different situations.
It is cost-effective and time saving solution to migrate existing analog
system to IP based system since ECP-101 supports easy installation
utilizing the existing Coax cable.
With long distance transmission feature, the device makes to
overcome 100 meters distance limitation easily and reduces the
construction cost significantly compared with fiber optic configuration.
Features
 Ethernet Extension over existing coaxial cable
 Data + Power over Coaxial cable
 Data and PoE distance up to 700m
 Max. 100Mbps Bandwidth
 10/100 Full Duplex
 Multicast supported
 PoE, PoE+, Extra PoE (Max. 60W output) (ECP-101T only)
 PoE ON/OFF Switch (ECP-101T only)
 Quality LED (Data & Power)
 Plug & Play
 Surge Protection
 Support PoE+ Input (25.5W) from PSE devices – ECP-101R Only
 Compact design
Rev.2.0
Bracket Quick Start
Guide

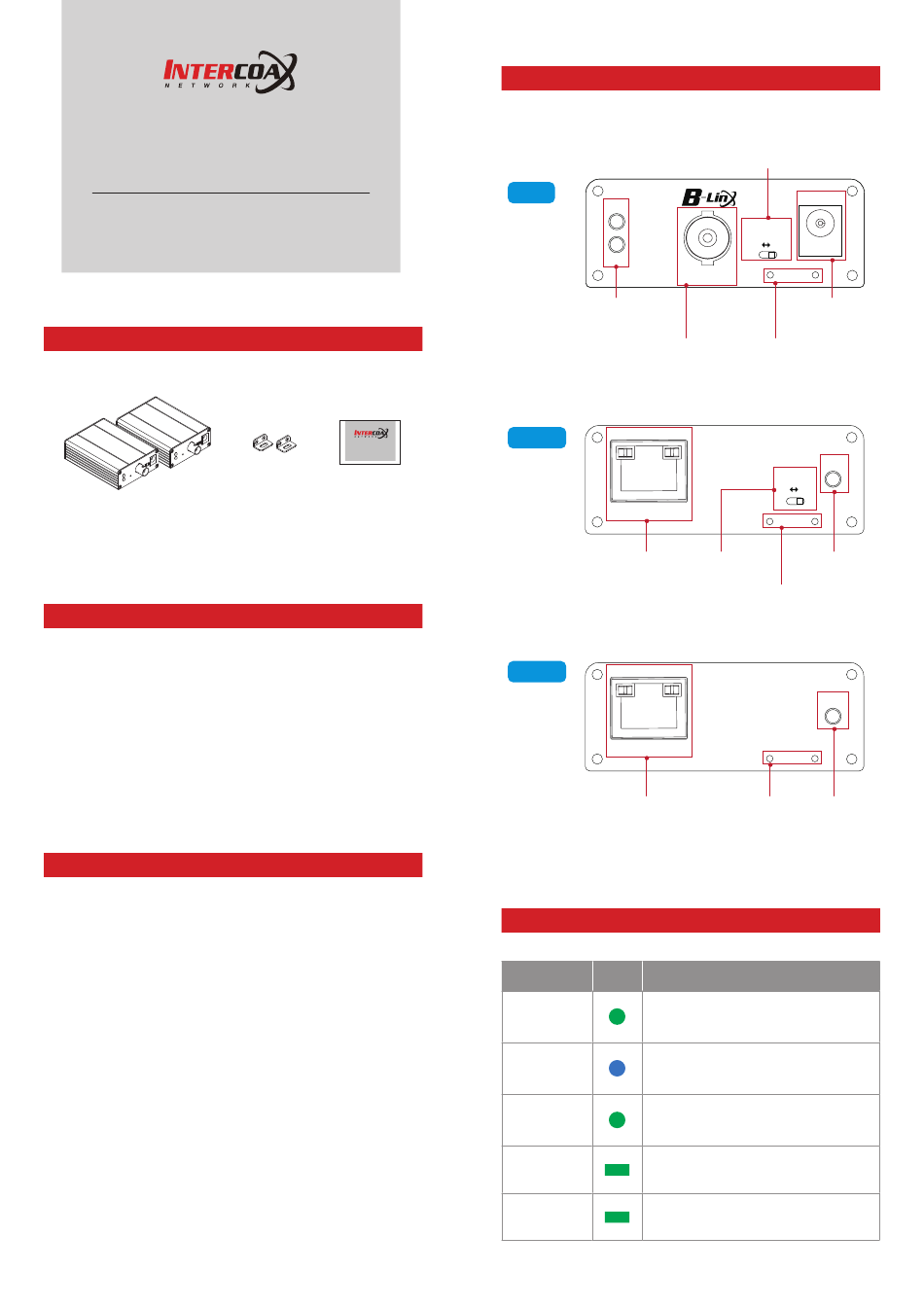

Hardware Overview
Left
ACT
LINK
NO ANALOG
Status LED
상태 표시등
indicator
BNC connector
BNC 커넥터
LINK/ACT PoE
Tx_Right
Ethernet
RJ45
Rx_Right
LINK/ACT PoC
Ethernet
RJ45
LED Indicators
Indicator Color
PWR
LINK
ACT
LINK / ACT
PoE / PoC PoE Output On / Power over Coax On
Data Rate 스위치 Data Rate Switch
57V DC
Data Rate
10M 100M
Bracket
CAMERA
DC Power Jack
DC 전원 어댑터
Bracket Hole
브라켓 홀
PWR
PoE
ON OFF
Bracket
PoE Switch Power LED
PoE 스위치 전원 LED
Bracket Hole
브라켓 홀
PWR
Bracket
Bracket Hole Power LED
브라켓 홀 전원 LED
Function
57V DC Link
ECP-Product Link
Data Act [BNC Line]
Data Act [Ethernet Line]
