Intercoax EUP-101 Series Quick Start Manual

Quick Start Guide
EUP-101T / EUP-101R
Please read carefully the instruction manual before use.
Contents of this manual are subject to change without prior notice
for reasons such as functionality enhancements.
Package

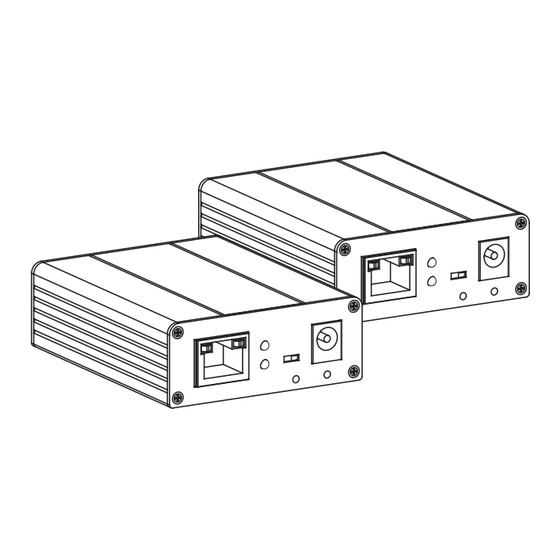

EUP‑101T (Transmitter)
EUP‑101R (Receiver)
Overview
EUP‑101 Series are High‑Speed, long distance Ethernet & PoE
extender that makes possible to transmit the Ethernet signal and PoE
up to 600m through UTP cables in different situations.
It is cost‑effective and time saving solution to migrate existing analog
system to IP based system since EUP‑101 supports easy installation
utilizing the existing UTP cable.
With long distance transmission feature, the device makes to
overcome 100 meters distance limitation easily and reduces the
construction cost significantly compared with fiber optic configuration.
Features
 Ethernet Extension using UTP cable (Cat.5e or better)
 Data + Power over UTP cable
 Data and PoE distance up to 600m
 Max. 100Mbps Bandwidth
 10/100 Full Duplex
 Multicast supported
 PoE, PoE+, Extra PoE (Max. 60W output) (EUP‑101T only)
 PoE ON/OFF Switch (EUP‑101T only)
 Quality LED (Data & Power)
 Plug & Play
 Surge Protection
 Support PoE+ Input (25.5W) from PSE devices – EUP‑101R Only
 Compact design
Rev.2.0
Braket Quick Start
Guide

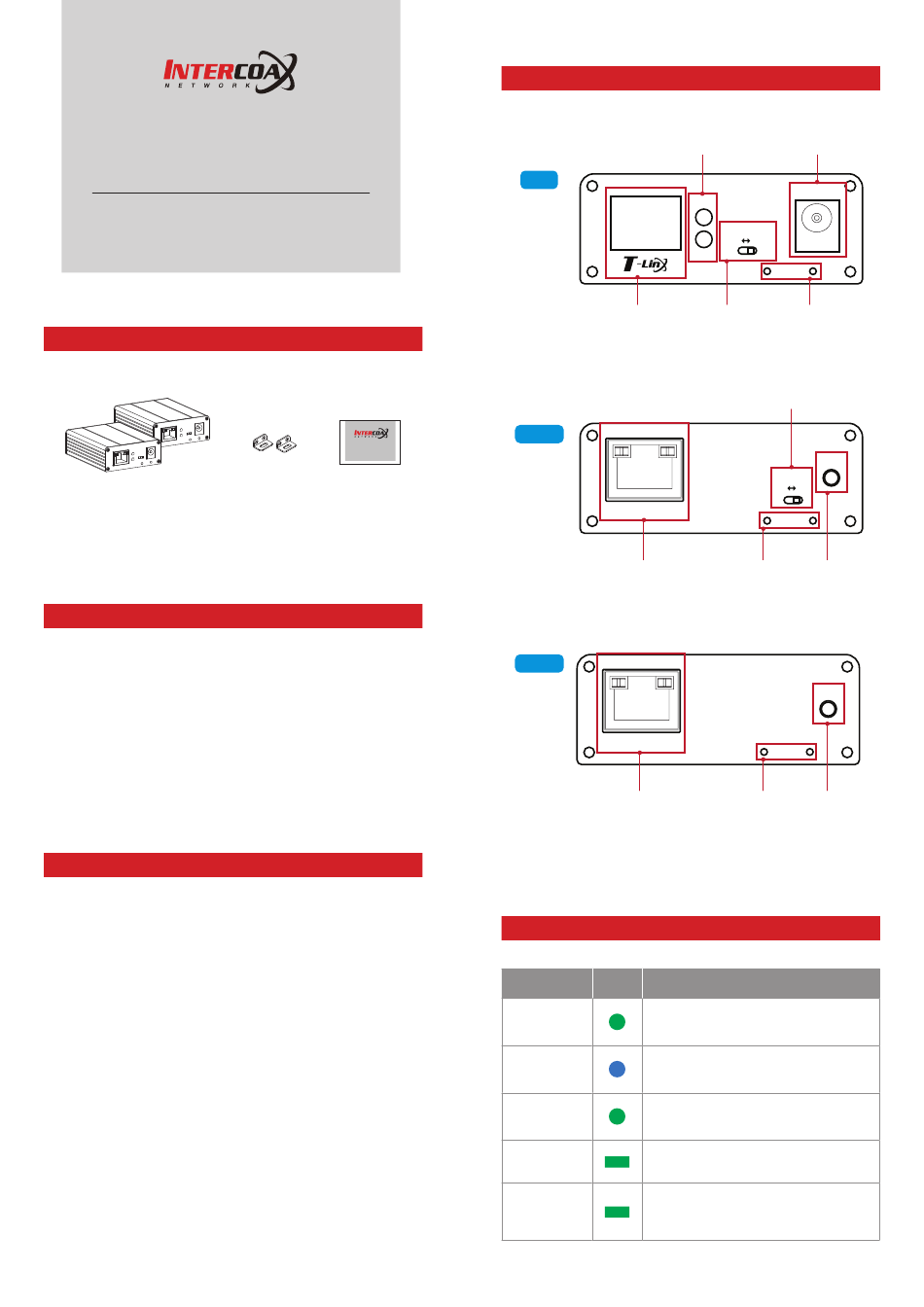

Hardware Overview
상태 표시등
Status LED indicator
Left
RJ45
LINK/ACT PoE
Tx_Right
Ethernet
RJ45
Rx_Right LINK/ACT PoE
Ethernet
RJ45
LED Indicators
Indicator Color
PWR
LINK
ACT Data Act (UTP T‑LinX Line)
LINK / ACT
PoE
Power over UTP(T‑LinX) On
DC 전원 어댑터
DC Power Jack
57V DC
ACT
Data Rate
10M 100M
LINK
Bracket
Data Rate Bracket
Data Rate
브라켓 홀
Switch Hole
스위치
PoE Switch PoE 스위치
PWR
PoE
ON OFF
Bracket
Bracket Hole Power LED
브라켓 홀 전원 LED
PWR
Bracket
Bracket Hole Power LED
브라켓 홀 전원 LED
Function
57V DC Link
EUP‑Products Linked
Data Act (Ethernet Line)
PoE Output On /
