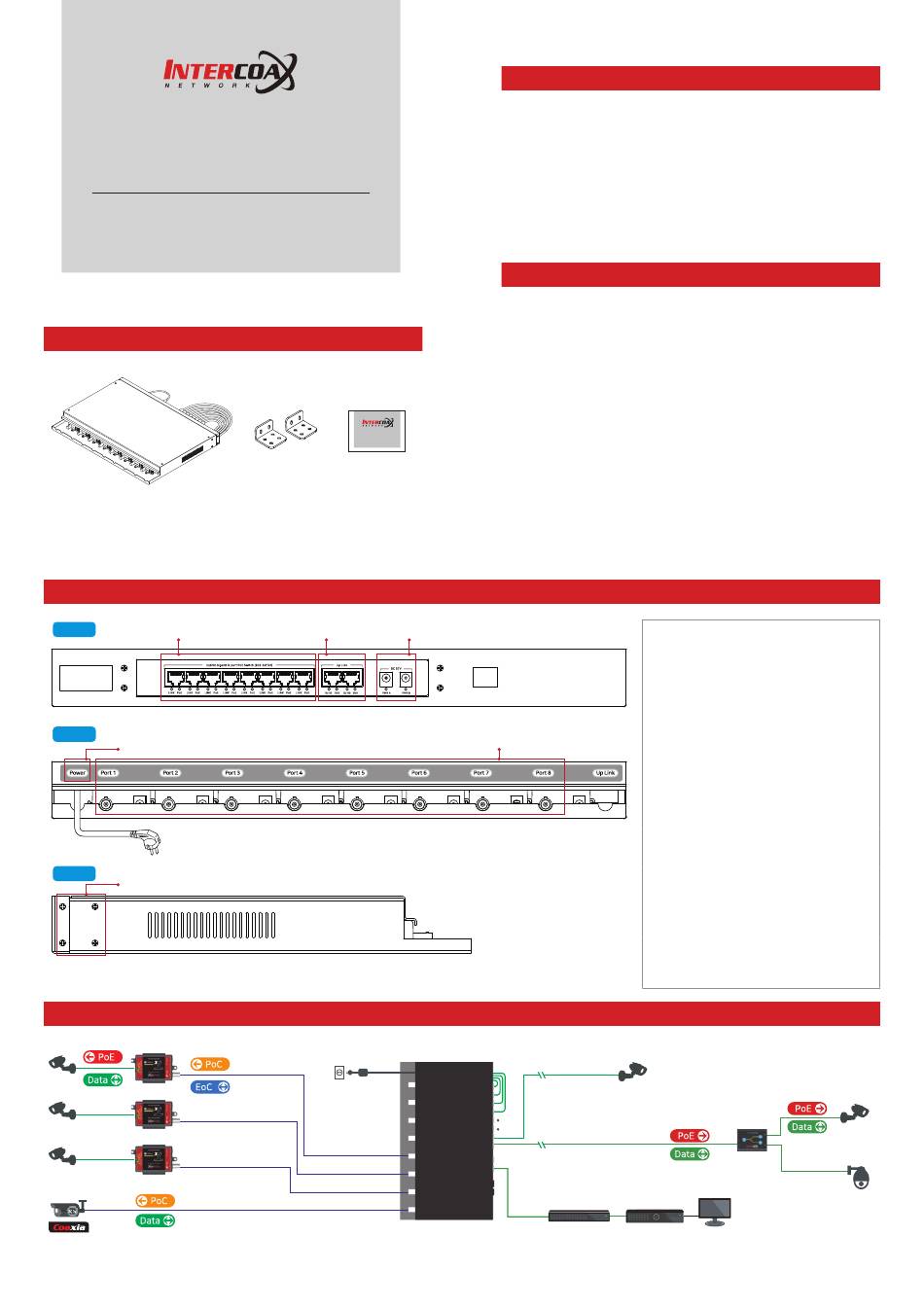

Intercoax ECP-08R Quick Start Manual

Quick Start Guide
ECP-08R
Please read carefully the instruction manual before use.
Contents of this manual are subject to change without prior
notice for reasons such as functionality enhancements.
Rev.1.5
Package
ECP-08R
Front
 RJ45
Front
Back
 POWER
Side
 Bracket Holes
PoE
Camera
ECP-01T
PoE
Camera
ECP-01T
PoE
Camera
ECP-01T
IP over Coax Camera
(S Series Only)
Bracket Quick Start
Guide
Hardware Overview
 RJ45 Uplink  DC IN
Applications
Max.400m
100V~220V AC
ECP-08R
Overview

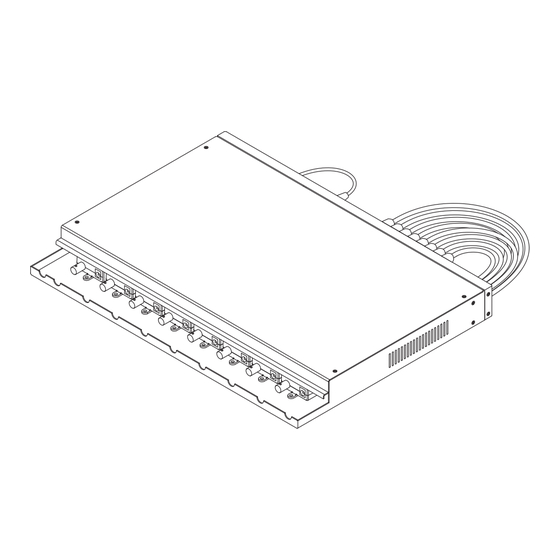

ECP-08R is an all-in-one 8-port Ethernet over Coax receiver and Hybrid
switch that simultaneously transmits network data and supplies PoC
power at high speed and long distance via coaxial cable, while also
supporting existing Ethernet and PoE+ for short and long distances. It
is a cost-effective and time-saving solution to migrate from an existing
analog system to an IP-based system. Network cameras are easy to
install with re-use of the existing analog coaxial cables. At the same
time, it is possible to use general Ethernet, and if combined with the
HPS-01 switch, transmission can be extended up to 200m at a speed
of up to 100Mbps. Premium 150W single power supply is included.
Features
 Simultaneous use of regular Ethernet and PoC
 Ethernet Extension over existing coaxial cable
 Data + Power over Coaxial cable (PoE, PoC)
 Data + PoE up to 400m over Coax
 100Mpbs Full Duplex over Coax
 PoE, PoE+, Extra PoE (Max.60W Output) - Use of additional power
adaptor
 Quality LED (Data, Power)
 Plug & Play
 Surge protector
 10/100/1000 Base-T Ethernet (Full Duplex) 8+2 Hybrid PoE Switch
 8 Port POE (IEEE802.3af standard) / PoE+ (IEEE802.3at standard)
 Extended Ethernet distance up to 200m (10/100 Base-T Ethernet
standard / With the HP-01 Switch)
 150W Single power supply included
 19" Rack
 RJ45:
10/100/1000 Bse-T Ethernet Port /
8 Ports PoE+ (IEEE 802.3 af/at / Max.
25.5W)
 RJ45 Uplink:
10/100/1000 Base-T Ethernet Uplink
 PORT
Port
 DC IN:
DC Power Input
Î
 POWER:
Recommended use : 100V~220V AC
 PORT:
Each port of the ECP-08R connects
to an ECP-01T via coaxial cables (3C,
RG58 or better)
 Bracket Holes:
Used to fix the product to the rack
Max. 100m
PoE Camera
Max. 200m
PoE/Non-PoE Switch
NVR
ECP-08R uses only one big power
supply.
PoE
Camera
HPS-01
Max. 100m
PTZ IP PoE
Camera
