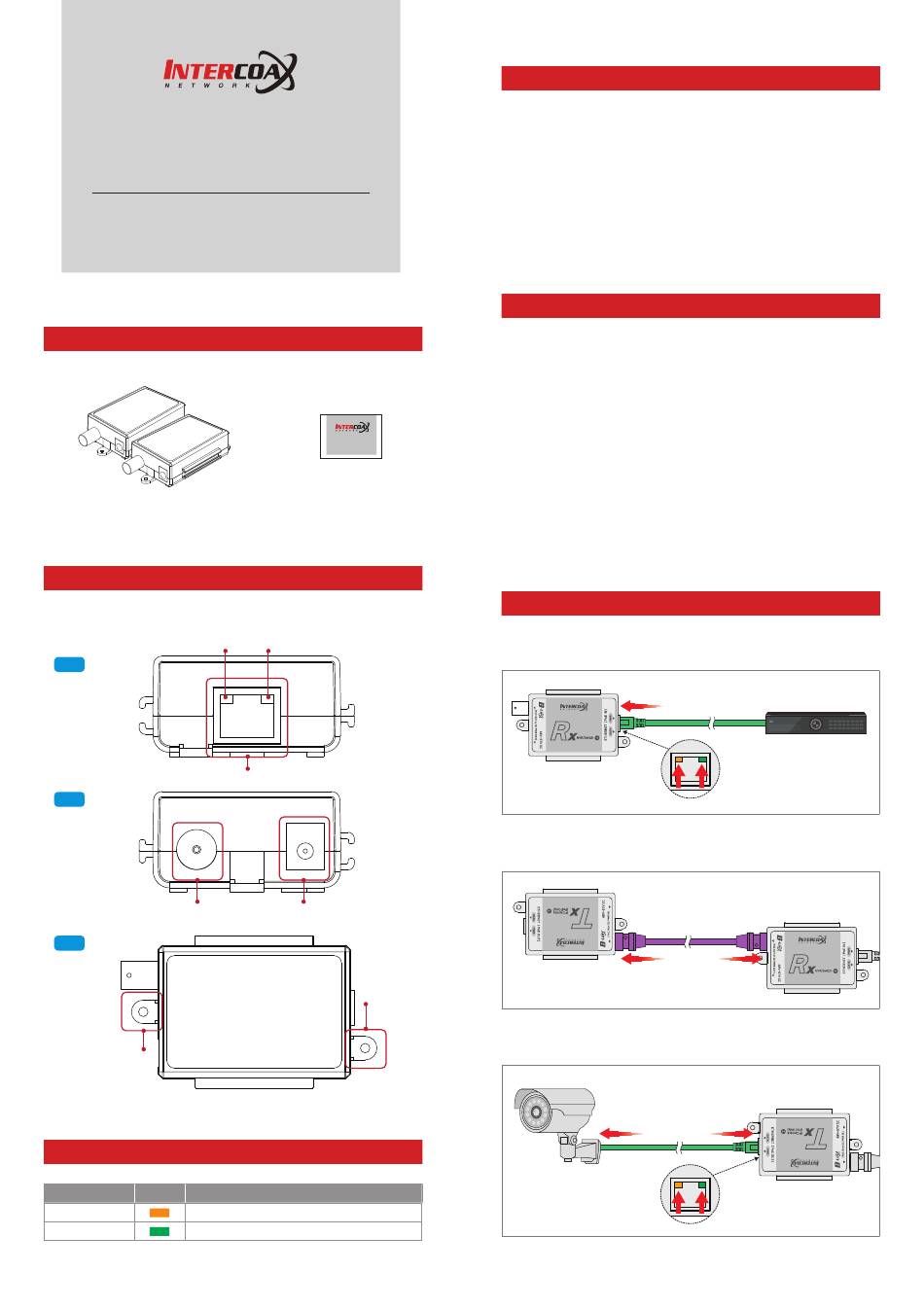

Intercoax 01R-ECP Quick Start Manual

Quick Start Guide

ECP-01T / ECP-01R
Please read carefully the instruction manual before use. Depending
on the model, the image and the actual look of the product may vary.
[Rev.2.0]
Package
ECP-01T (Transmitter)
ECP-01R (Receiver)
Hardware Overview
Status LED Indicator
상태 표시등
DATA
DATA
Right
Left
BNC connector BNC 커넥터
Top
제품 고정
Mounting
나사용 홀
Screw Hole
LED Indicators
Indicator Color
DATA
PWR DC Link (PoE or DC Power adapter)
Quick Start
Guide
Status LED Indicator
상태 표시등
PWR
PWR
RJ45
DC Power Jack DC 전원 어댑터
제품 고정 Mounting
나사용 홀
Screw Hole
Function
Blinking : Ethernet Data Act
Overview
ECP-01 Series are High-Speed, long distance Ethernet & PoE extender
that makes possible to transmit the Ethernet signal and PoE up to
400m through coaxial cables in different situations.
It is cost-effective and time saving solution to migrate existing
analog system to IP based system since ECP-01 series support easy
installation utilizing the existing coaxial cable.
With long distance transmission feature, the device makes to
overcome 100 meters distance limitation easily and reduces the
construction cost significantly compared with fiber optic configuration.
Features
 Long reach Ethernet & PoE extension over existing coaxial cable
 Data + Power over coaxial cable
 Data and PoE distance up to 400 m
 100Mpbs Full Duplex
 PoE, PoE+, Extra PoE (Max. 60W PoE output, ECP-01T model only
with DC Power adapter)
 LED Indication (Data, Power)
 Plug & Play
 Surge Protection
 Support PoE, PoE+ Input (25.5W) from PoE Switch / PoE NVR
(ECP-01R model only)
 Slim design
Installation Guide
1. Connect Ethernet cable (Cat5e or better) from PoE Switch/NVR to
ECP-01R. Check LEDs on ECP-01R.
2. Connect coaxial cable (RG58 or better) to ECP-01R.
Connect coaxial cable from ECP-01R to ECP-01T.
Coaxial cable
Coaxial cable
(RG58 or better)
(RG58 or better) Coaxial cable
(RG58 or better)
3. Connect Ethernet cable (Cat5e or better) from ECP-01T to IP
Camera (PoE Model Only). Check LEDs on ECP-01T.
Ethernet cable
Ethernet cable
(Cat5e or better)
Ethernet cable
(Cat5e or better)
(Cat5e or better)
Ethernet cable
PoE Switch/NVR
Ethernet cable
PoE Switch/NVR
(Cat5e or better)
(Cat5e or better)
Ethernet cable
PoE Switch/NVR
(Cat5e or better)
Check LEDs
Check LEDs
Check LEDs
Check LEDs
Check LEDs
Check LEDs
