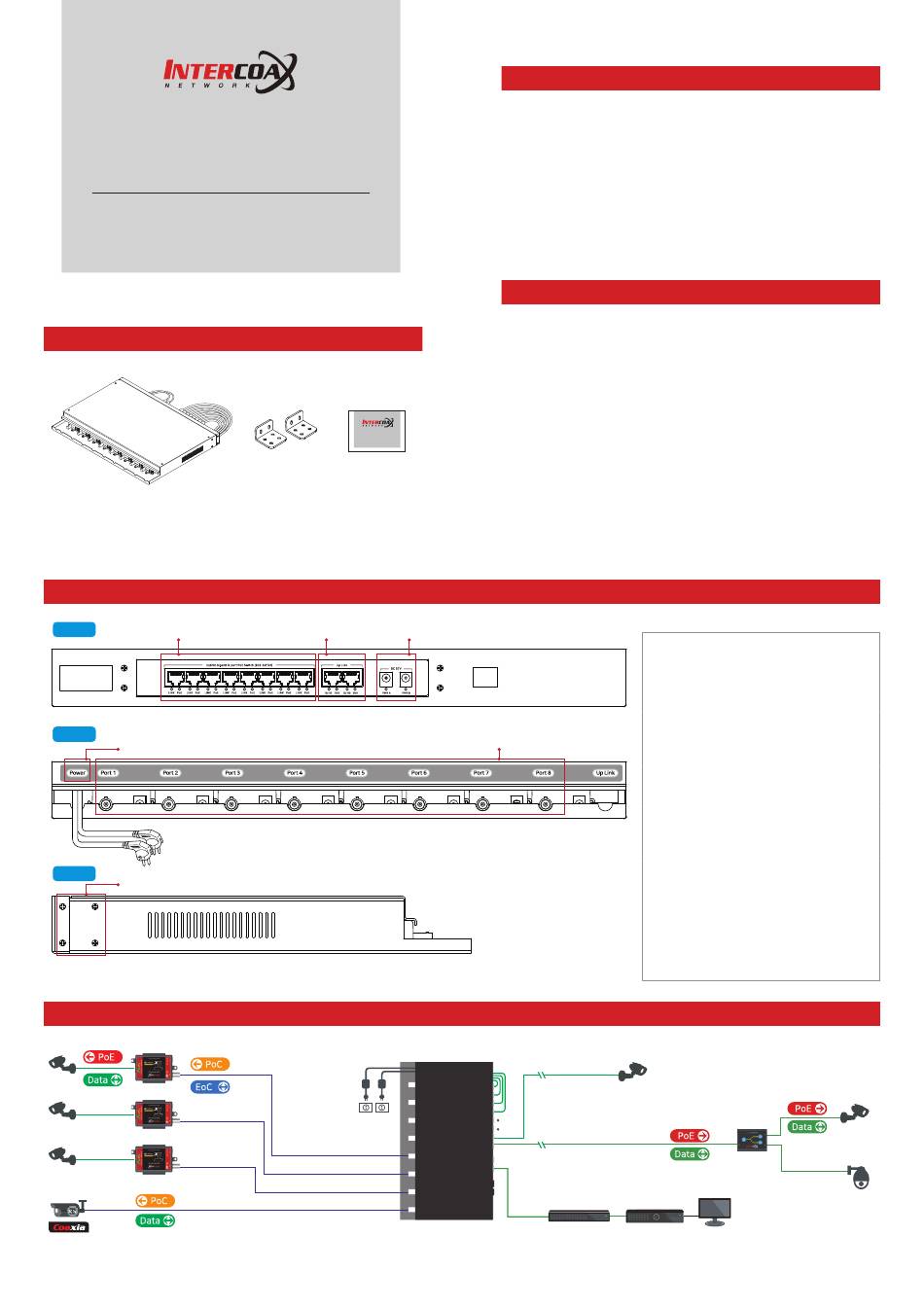

Quick Start Guide
ECP-08R
Please read carefully the instruction manual before use. Depending
on the model, the image and the actual look of the product may vary.
Package
ECP-08R
❶ RJ45
Front
Front
Back
❹ POWER
Side
❻ Bracket Holes
PoE
Camera
ECP-01T
PoE
Camera
ECP-01T
PoE
Camera
ECP-01T
S Series
IP Camera
Rev.1.1
Bracket
Quick Start
Guide
Hardware Overview
❷ RJ45 Uplink
❸ DC IN
Applications
DC 57V (When using PoE
DC48-57V adapter applied)
ECP-08R
Overview
ECP-08R is an all-in-one 8-port Ethernet over Coax receiver and Hybrid
switch that simultaneously transmits network data and supplies PoC
power at high speed and long distance via coaxial cable, while also
supporting existing Ethernet and PoE+ for short and long distances.
It is a cost-effective and time-saving solution to migrate from an
existing analog system to an IP-based system. Network cameras are
easy to install with re-use of the existing analog coaxial cables. At
the same time, it is possible to use general Ethernet, and if combined
with the HPS-01 switch, transmission can be extended up to 250m
at a speed of up to 100Mbps. Two power supplies are included for
redundancy and power sharing.
Features
 Simultaneous use of regular Ethernet and PoC
 Ethernet Extension over existing coaxial cable
 Data + Power over Coaxial cable (PoE, PoC)
 Data + PoE up to 400m over Coax
 100Mpbs Full Duplex over Coax
 PoE, PoE+, Extra PoE (Max.60W Output) - Use of additional power
adaptor
 Quality LED (Data, Power)
 Plug & Play
 Surge protector
 10/100/1000 Base-T Ethernet (Full Duplex) 8+2 Hybrid PoE Switch
 8 Port POE (IEEE802.3af standard) / PoE+ (IEEE802.3at standard)
 Extended Ethernet distance up to 250m (10/100 Base-T Ethernet
standard / With the HP-01 Switch)
 19" Rack
❶ RJ45:
10/100/1000 Bse-T Ethernet Port /
8 Ports PoE+ (IEEE 802.3 af/at / Max.
25.5W)
❷ RJ45 Uplink:
❺ PORT
10/100/1000 Base-T Ethernet Uplink
Port
❸ DC IN:
DC Input ports (up to 57V DC input)
❹ POWER:
Recommended use :
100–240V ~ 50/60Hz 2.0A
❺ PORT:
Each port of the ECP-08R connects
to an ECP-01T via coaxial cables (3C,
RG58 or better)
❻ Bracket Holes:
Used to fix the product to the rack
Max. 100m
PoE Camera
Max. 250m
PoE/Non-PoE Switch
NVR
PoE
Camera
HPS-01
Max. 100m
PTZ IP PoE
Camera
