Summary of Contents for Ronix RH-4953

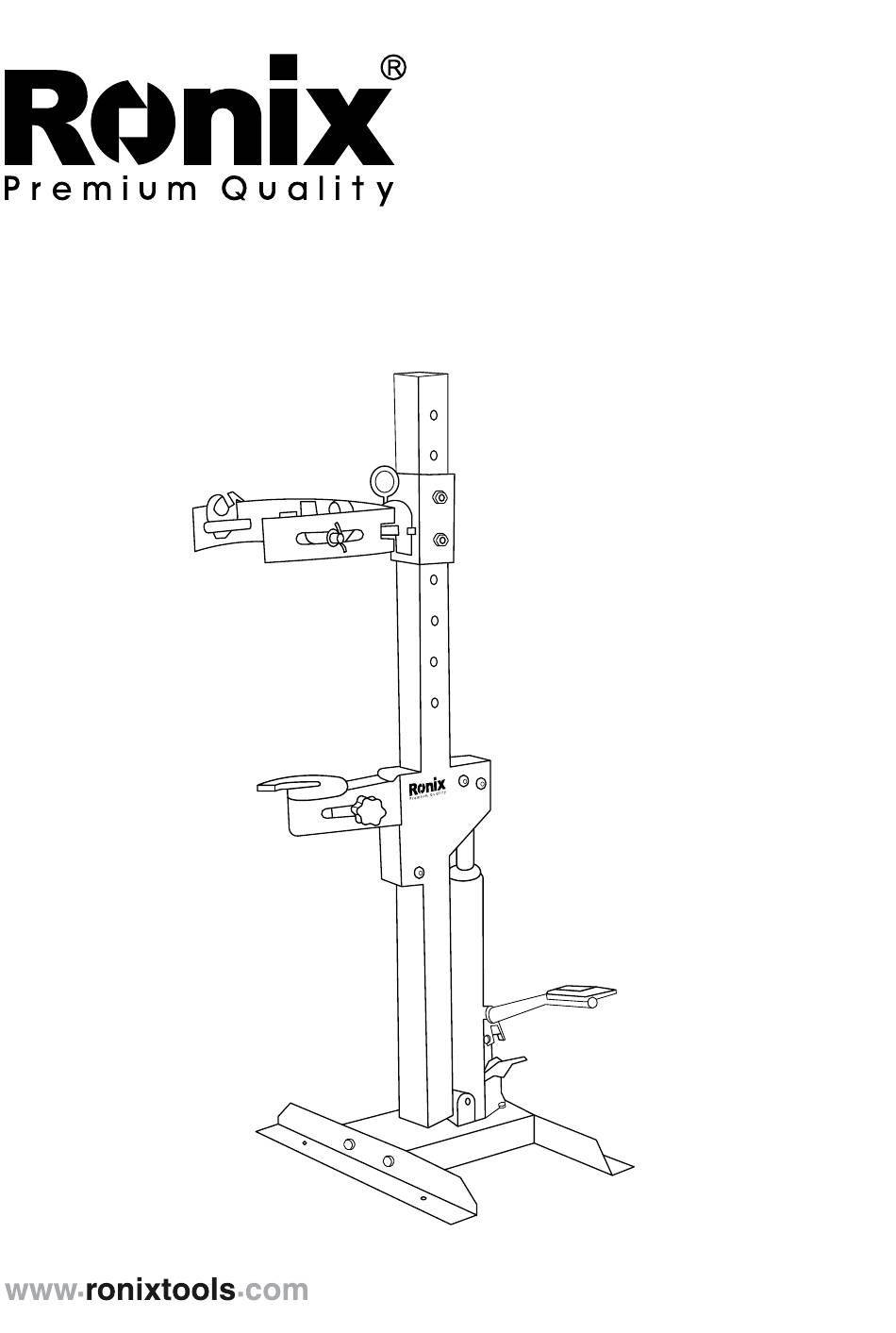

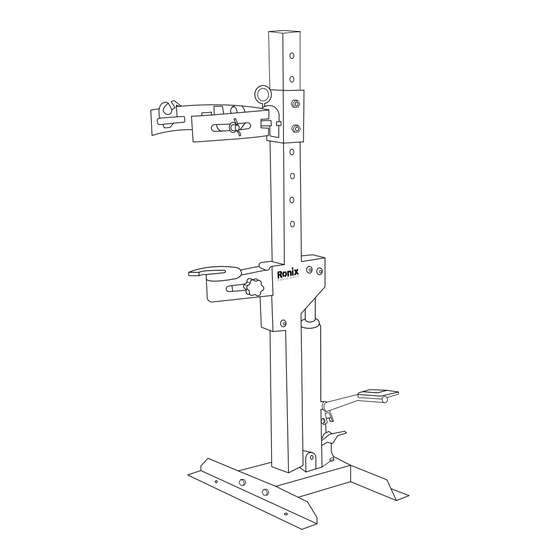

- Page 1 HYDRAULIC SPRING COMPRESSOR 1T RH-4953...
- Page 3 TECHNICAL SPECIFICATION RH-4953 Model Load Capacity 1 Ton (1000Kg) Spring Size 101.6-254mm Max Working Length 500mm Stroke 325mm Adjustment Height Level 7×60mm Net Weight 31Kg Gross Weight 36Kg Include No accessories Supplied In Wooden case USER MANUAL...
- Page 4 PART LIST Spring Clasp Spring Clasp Holder Lower Strut Lift Food Pedal Release Foot Pedal WARNING SYMBOLS AND DEFINTIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
- Page 5 IMPORTANT SAFETY INFORMATION WARNING Read all safety warnings and instructions. Failure to heed these markings may result in personal injury and/or property damage. Save all warnings and instructions for future reference. The warnings, precautions, and instructions discussed in this manual cannot cover all possible conditions and situations that may occur.
- Page 6 persons. A tool is dangerous in the hands of untrained users. 3- check for misalignment or binding of moving parts, breakage of parts, and any other condition that affects the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.
- Page 7 as this may cause failure and/or personal injury. 6- Before compressing, make visual inspection of machine to ensure pins are securely positioned and that there is no sign of wear or fatigue. If found, do not use the unit until it is replaced or repaired by a qualified technician.
- Page 8 must be supplied by the operator. OPERATING INSTRUCTIONS read the ENTIRE IMPRTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. 1- Lower the ram to its lowest position by Pressing and holding down pedal C.Hing the upper brackets back.
- Page 9 TROUBLE SHOOTING TO PREVENT SERIOUS INJURY: Use caution when troubleshooting a malfunctioning jack .completely resolve all problems before use. If the solutions presented in the Troubleshooting guide do not solve the problem, have a qualified technician inspect and repair the jack before use. USER MANUAL...
- Page 10 Problem Possible Cause Solution Release valve not tightly Firmly close the release closed valve The steel ball is Please follow the steps: immersed inside for too 1. Open the release long time valve by turning it counter-clockwise, pump Jack does not operate up the handle 15-10 times.
