Summary of Contents for Ronix RC-5012

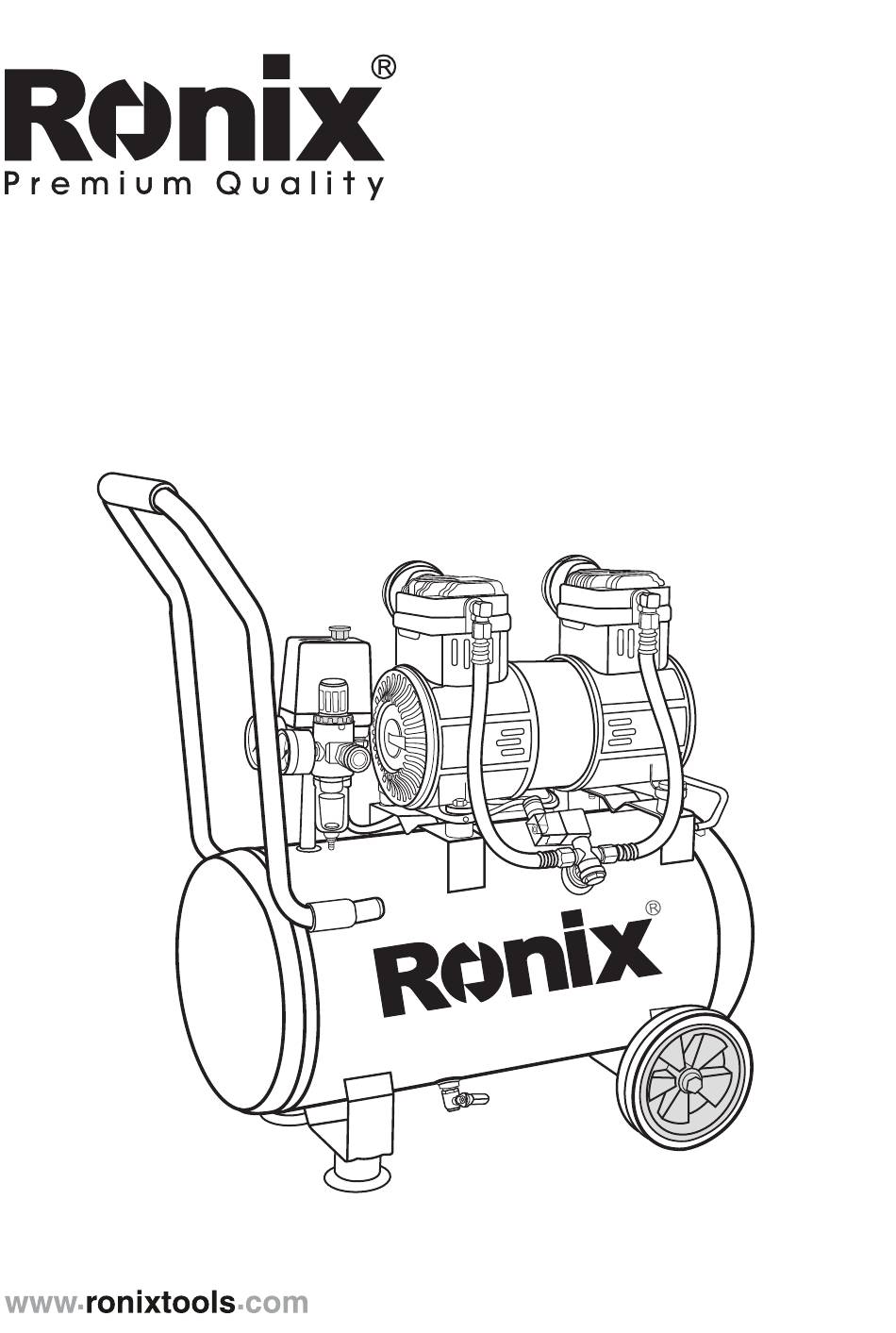

- Page 1 AIR COMPRESSOR 50LITER RC-5012...
-
Page 2: Product Specifications
0.88MPa 0-0.8MPa use pressure range 0.5MPa restart pressure 0.8MPa Max Pressure 2Air Filter, Two Wheels, 2 Includes Rubber base 1 pushrud Supplied in Ronix Color box PARTS LIST Handle On/Off Cylinder Silencer Capacitance Head Switch Adjusting pressure valve Reset Button... -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. - Save all warnings and instructions for future reference. - The term “power tool”... -
Page 4: Personal Safety
- If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. - Use of power supply via a RCD with a rated residual current of 30mA or less is always recommended. - Page 5 POWER TOOL USE AND CARE - Don’t force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. - Don’t use the power tool if the switch doesn’t turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 6: Special Safety Rules
AIR COMPRESSOR USE AND CARE - Do not exceed the pressure rating of any component in the system. - Protect material lines and air lines from damage or puncture. Keep hose and power cird away from sharp objects, chemical spills, oil, solvents, and wet floors. - Page 7 used. This will allow moisture to completely drain out and help prevent corrosion on the inside of tanks. - Risk of fire or explosion. Do not spray flammable liquid in a confined area must be well ventilated Do not smoke while spraying or spray where spark or flame is present.
- Page 8 - Always follow all safety rules recommended by the manufacturer of your air tool, in addition to all safety rules for the air compressor. Following this rule will reduce the risk of serious personal injury. - Never direct a jet of compressed air toward people or animals. Take care not to blow dust and dirt towards yourself or others.
- Page 9 - If the power supply cord is damaged, it must be replaced only by the manufacture or by an authorized service center to avoid risk. - Save these instructions. Refer to them frequently and use them to instruct others who may use this product. - If you loan someone this product, loan them these instructions also.
- Page 10 Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material unit you have carefully inspected and satisfactorily operated the product. WARNING! If any parts are damaged or missed, do not operate this product until the parts are replaced.
-
Page 11: Break-In Period
1) Facing the back of the air compressor, grasp the handle firmly with two hands. 2) Life the air compressor toward you until it balances on the wheels. 3) Push the unit along to the desired location. Lower their air compressor unit it sits securely on a flat surface. BREAK- IN PERIOD Before first use, run the air compressor at zero tank pressure with the drain valves fully open for 30minutes. -
Page 12: Using The Air Compressor
WARNING! Always ensure the switch is in the OFF (O) position and the regulator pressure gauge reads zero before changing air outlet. Failure to do so could result in possible serious personal injury. USING THE AIR COMPRESSOR 1) Ensure power switch is in OFF (O) position and air compressor is unplugged. 2) If not already installed, attach hose to compressor 3) Attach 6.35 mm (1/4 in.) NPT quick- connect air fitting to accessory or tool you intend to use. -
Page 13: Draining The Tanks
1) When finished, always drain the tank and unplug the unit. Never leave the unit plugged in and/or running unattended. 2) Recommended for the use of a residual current device with a rated residual current of 30mA or less. DRAINING THE TANKS To help prevent tank corrosion and keep moisture out of the air, used, the air tanks of the compressor should be drained daily. -
Page 14: Checking The Safety Valve
with local regulations. 1) If drain valves are clogged, release all air pressure, remove and clean valves, then reinstall. DANGER! Unplug the air compressor and release all air from the tanks before servicing. Failure to depressurize tanks before attempting to remove valve cause serious personal injury. -
Page 15: General Maintenance
MAINTENANCE WARNING! When servicing use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING! Always wear eye protection with side shields. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. WARNING! Always release all pressure, all pressure, disconnect from power supply, and allow unit to cool to the touch before cleaning or making repairs on... -
Page 16: Bearing Lubrication
this product for extended work on these types of materials. However, if you do work with any of these materials, it is extremely import- ant to clean the product using compressed air. BEARING LUBRICATION All of the bearings in this product are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating con- ditions. - Page 17 Loose connections (fitting Check all connection with soap and , tubing, etc.) water solution and tighten Loose drain valve Tighten drain valve Air tank pressure drops Take compressor to service center when compressor shuts DANGER Check valve leaking Do not disassemble check valve, tank drain valves or safety relief valve with air in tank- bleed tanks.
