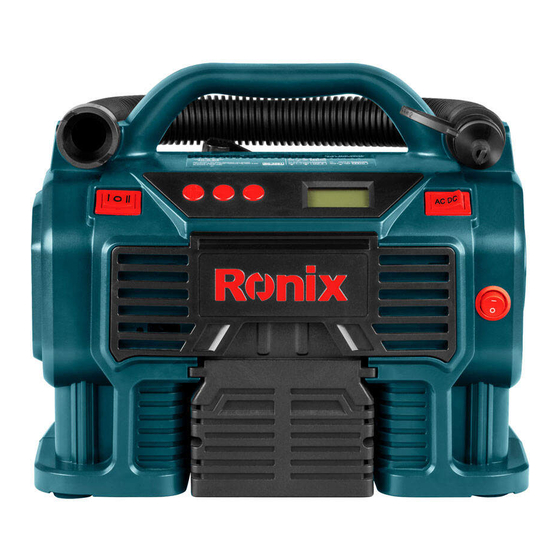

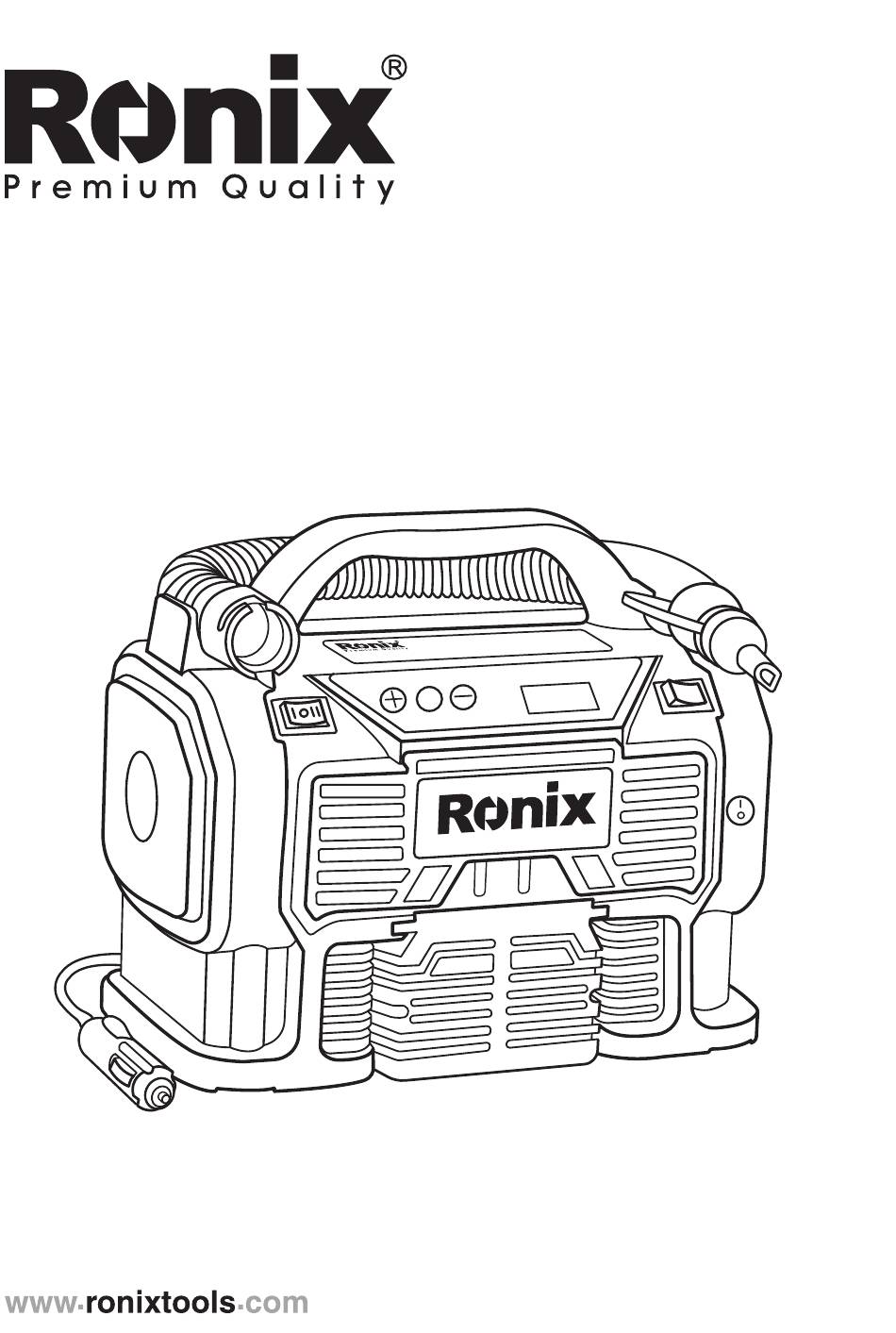

- Page 1 MINI DIGITAL AIR COMPRESSOR RH-4261B...
-
Page 2: Specification
SPECIFICATION Model RH-4261B Weight 2 Kg Power Cord Length 1.5m Pump Hose Length 36cm Inflator Hose Length 81cm Maximum Air Flow 360 Litre/Min Max Pressure 160 PSI /11 Bar /1100 Kpa AC 220-240V 50-60Hz/ DC 12 Power Source Cigarette Lighter... -
Page 3: Part List
PART LIST )+(Pressure )-( Pressure set set button Mode button button Digital gauge Inflator and AC and DC switch blower switch LED light switch Blower Hose Compressor Hose Outlet Air Blower LED light GENERAL POWER TOOL SAFETY WARNINGS WARNINGS! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. -
Page 4: Work Area Safety
WORK AREA SAFETY Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. - Page 5 -Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired by Ronix Service Center. -Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Page 6 Use of the power tool for operations different from those intended could result in a hazardous situation. SERVICE - Have your power tool serviced by Ronix Service Center using only iden- tical replacement parts. This will ensure that the safety of the power tool is maintained.
- Page 7 cause inflator to become unsafe. Never cut or drill holes in the inflator. 6-Make sure the hose is free of obstructions or snags. Entangled or snarled hoses can cause loss of balance or footing and may become damaged. 7-Use the inflator only for its intended use. Do not alter or modify the inflator from the original design or function.
-
Page 8: Intended Use
Wear ear protection Wear eye protection Wear dust mask OPERATING INSTRUCTIONS NOTE! Before using the tool, read the instruction manual carefully. INTENDED USE This tool is designed to be used in most vehicles from the standard 12-volt socket or in 220-240 volt cord to inflate car, motorcycle and bike tires, balls, rafts, air mattresses, swimming pool floats, etc. -
Page 9: Digital Gauge
To turn the inflator off, press the right part of the switch marked”DC” to cut off AC power supply. Press the left part of the mode switch marked “AC” to cut off DC power supply. LEDLIGHT SWITCH To turn the LED light on, press the upper part of the LED light switch marked”... - Page 10 pressure being applied to the item being inflated, pressure is indicated by PSI, BAR or KPA. Press the mode button to turn on the digital gauge. Press the mode button to switch between the different units )PSI, BAR or KPA( . Press the(+) or(·) button at the same time until the required units are displayed.
- Page 11 use. Operate your inflator only with the universal valve adaptor or with the included nozzles. Inflating with the high pressure hose The valve adaptor on the high pressure hose can be used without adaptors to inflate tires. WARNING! Do not operate the inflator when the car engine is running. WARNING! Do not leave unit running unattended.
- Page 12 Connect the universal valve adaptor to the item to be checked. The digital gauge will display the items pressure. HOSE AND CORD STORAGE When not in use, the high pressure hose are stored in the storage area on back of the lnflator. The low pressure hose are stored in the storage area on top of the lnflator.
