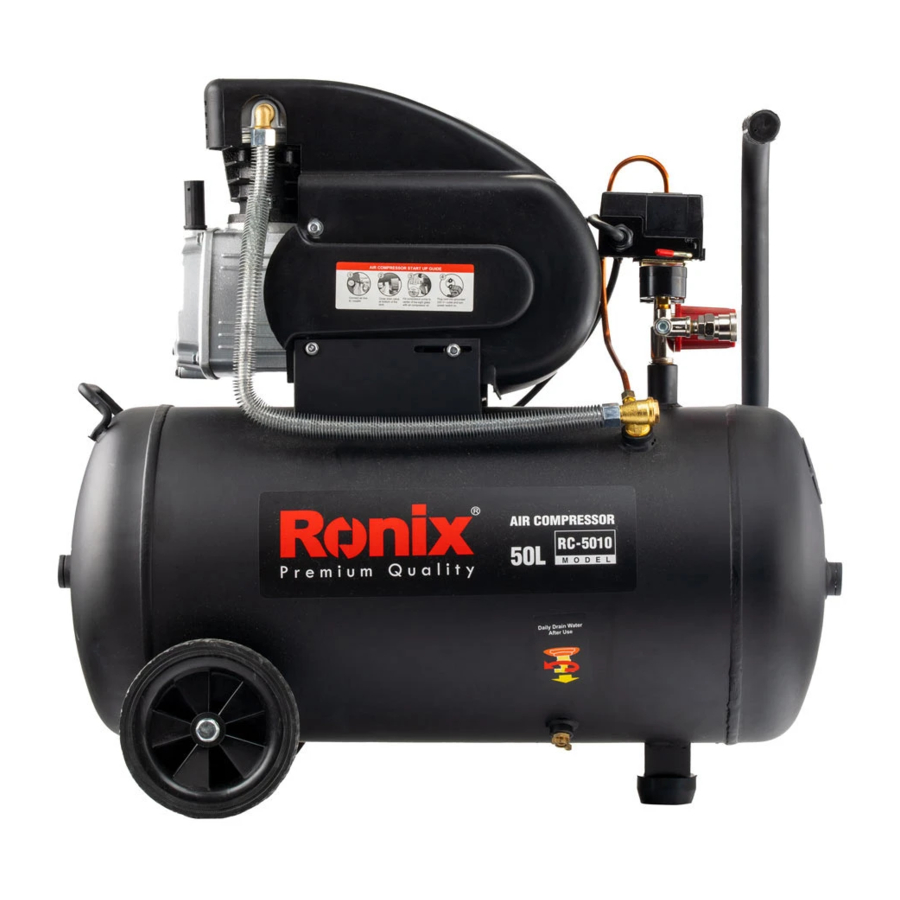

- Page 1 AIR COMPRESSOR 50LITER RC-5010...
-
Page 3: Parts List
PARTS LIST 1) ON/OFF switch 2) Handle 3) Safety switch 4) Power cord 5) Drain valve 6) Coupler 7) Pressure gauge 8) Pressure regulator 9) Filter 10) Motor housing 11) Sight glass 12) Oil fill hole USER MANUAL... -
Page 4: Product Specifications
PRODUCT SPECIFICATIONS Model RC-5010 Power 2HP or 1490W Voltage 220V Frequency 50Hz No Load Speed 2800RPM Air Tank Capacity Max Pressure 8.0BAR Air delivery 200L/Min Net. Weight 30KG GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. -
Page 5: Electric Safety
ELECTRIC SAFETY - Power tool plugs must match the outlet. Never modify the plug in any way. Don’t use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. - Avoid body contact with earthed or grounded surfaces such as pipe, radiators, ranges and refrigerators. - Page 6 - Prevent unintentional starting. Ensure the switch is in the off-po- sition before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fin- ger on the switch or energizing power tools that have the switch on invites accidents.
- Page 7 may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. - Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
-
Page 8: Special Safety Rules
of parts, and any other condition that may affect the product’s operation. If damaged, have the air compressor serviced before using. Many accidents are caused by poorly maintained prod- ucts. - Keep the exterior of the air compressor dry, clean and free from oil and free from oil and grease. - Page 9 - Make sure the hose is free of obstructions or sangers. - Entangled or snarled hoses can cause loss of balance or footing and may become damaged. - Use the air compressor only for its intended use. Do not alter or modify the unit from the original design or function.
- Page 10 - Following this rule will reduce the risk of shock, fire, or serious injury. - Make sure your extension cord is in good condition. When using an extension cord, sure to use one heavy enough to carry the current your product will draw. A wire gauge size (A.W.G) of at least 14 is recommended for an extension cord 7.5 m or less in length.
- Page 11 children) with reduced Physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be su- pervised to ensure that they do not play with the appliance. ASSEMBLY UNPACKING This product requires assembly.
-
Page 12: Checking The Oil
leading to possible serious personal injury. WARRNING! Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury. CHECKING THE OIL Always check the oi; when the unit is sitting on a level surface and before first use. -
Page 13: Break-In Period
APPLICATIONS Air compressors are utilized in a variety of air variety of air system applications. Match hoses, connectors, air tools, and accessories to the capabilities of the air compressor. You may use this product for the purposes listed below: - Operating some air-powered tools - Operating air accessories such as air nozzles and tire inflators. -
Page 14: Using The Air Compressor
TURNING THE AIR COMPRESSOR ON/OFF 1) With the air compressor plugged in, pull the power switch to the ON position to power the compressor on. 2) To turn the air compressor off, push the power switch to the OFF position. NOTE: When the compressor is in the ON position, the air compressor will automatically turn back on when the designated tank air... - Page 15 3) Attach 6.35 mm (1/4 in.) NPT quick- connect air fitting to accessory or tool you intend to use. 4) Insert the other end of the quick connect air fitting to the quick coupler on the open end of hose. 5) Connect the power cord to the power supply.
-
Page 16: Draining The Tanks
1) When finished, always drain the tank and unplug the unit. Never leave the unit plugged in and/or running unattended. 2) Recommended for the use of a residual current device with a rated residual current of 30mA or less. DRAINING THE TANKS To help prevent tank corrosion and keep moisture out of the air, used, the air tanks of the compressor should be drained daily. -
Page 17: Checking The Safety Valve
to remove valve cause serious personal injury. Rotate drain valves clockwise until tightly closed. CHECKING THE SAFETY VALVE WARNING! Do not attempt to tamper with the safety valve. Anything loosened from this device could fly up and hit you. Failure to heed this warning could result death or serious personal injury. -
Page 18: General Maintenance
WARNING! Always wear eye protection with side shields. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. WARNING! Always release all pressure, all pressure, disconnect from power supply, and allow unit to cool to the touch before cleaning or making repairs on the air compressor. -
Page 19: Bearing Lubrication
BEARING LUBRICATION All of the bearings in this product are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions. Therefore, no further lubrication is required. REPLAING THE AIR FILTER 1) Turn the air filter cover counterclockwise approximately one- quarter turn. -
Page 20: Environmental Protection
NOTE: Avoid refilling with too much oil. Ensure that the level of the oil does not exceed the top of the red dot at sight glass. The recommended amount of oil for refilling is 250ml. 1) Tighten the cap securely into the fill hole. ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing of as waste. - Page 21 Check all connection with Loose connections (fitting , soap and water solution and tubing, etc.) tighten Loose drain valve Tighten drain valve Take compressor to service Air tank pressure drops when center compressor shuts off DANGER Check valve leaking Do not disassemble check valve, tank drain valves or safety relief valve with air in tank- bleed tanks.
