Summary of Contents for Ronix RC-8010

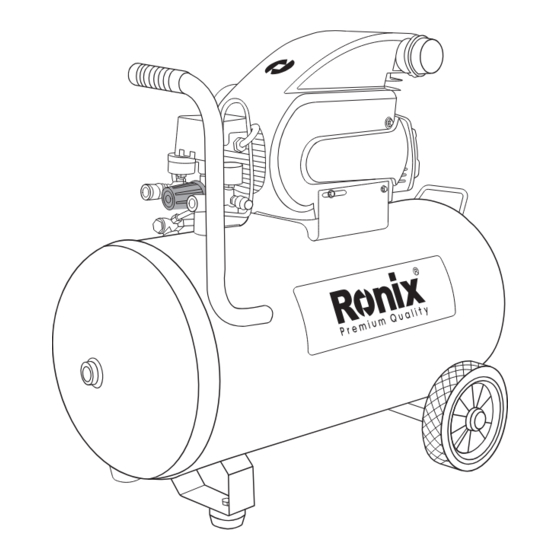

- Page 1 AIR COMPRESSOR 80LITER RC-8010...
-
Page 2: Product Specifications
Speed 2800RPM Weight 42kg Max Pressure 8bar/116psi Air Delivery 230L/min Tank Capacity Supplied In Ronix Color box Air Filter, Oil Bottle, Two Wheels, 2 air Includes couplers PARTS LIST Safety switch Pressure gauge Motor housing Coupler Pressure regulator USER MANUAL... -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. - Save all warnings and instructions for future reference. - The term “power tool”... -
Page 4: Personal Safety
- If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. - Use of power supply via a RCD with a rated residual current of 30mA or less is always recommended. - Page 5 POWER TOOL USE AND CARE - Don’t force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. - Don’t use the power tool if the switch doesn’t turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 6: Special Safety Rules
AIR COMPRESSOR USE AND CARE - Do not exceed the pressure rating of any component in the system. - Protect material lines and air lines from damage or puncture. Keep hose and power cird away from sharp objects, chemical spills, oil, solvents, and wet floors. - Page 7 - Risk of fire or explosion. Do not spray flammable liquid in a confined area must be well ventilated Do not smoke while spraying or spray where spark or flame is present. Keep compressors as far from the sparing arras as possible, at least 4.5m (15 feet) from the spraying area and all explosive vapors.
- Page 8 - Never direct a jet of compressed air toward people or animals. Take care not to blow dust and dirt towards yourself or others. Flowing this rule will reduce the risk of serious injury. - Do not use this air compressor to spray chemicals. - Your lungs can be necessary in dusty environments or when spraying paint.
- Page 9 instruct others who may use this product. - If you loan someone this product, loan them these instructions also. - The machine shall be connected to a circuit protection device (fuse or circuit breaker). The protection device shall be set at 8 A current, and the use shall do necessary test according to clause 18.2.2 of EN 60204-1:2006 to check if the protection device is suitable for use.
-
Page 10: Checking The Oil
WARRNING! If any parts are damaged or missed, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury. WARRNING! Do not attempt to modify this product or create accessories not recommended for use with this product. - Page 11 To Add Oil: 1) Unscrew the cap of oil fill hole. 2) Using a funnel, carefully pour oil into the oil fill hole. 3) Tighten the cap securely into the oil fill hole. NOTE: Avoid too much oil. Ensure that the level of the oil does not exceed the top of red dot at sight glass.
-
Page 12: Break-In Period
BREAK- IN PERIOD Before first use, run the air compressor at zero tank pressure with the drain valves fully open for 30minutes. TURNING THE AIR COMPRESSOR ON/OFF 1) With the air compressor plugged in, pull the power switch to the ON position to power the compressor on. -
Page 13: Using The Air Compressor
USING THE AIR COMPRESSOR 1) Ensure power switch is in OFF (O) position and air compressor is unplugged. 2) If not already installed, attach hose to compressor 3) Attach 6.35 mm (1/4 in.) NPT quick- connect air fitting to accessory or tool you intend to use. -
Page 14: Draining The Tanks
NOTE: Always use the minimum amount of pressure necessary for your application. Using a higher pressure than needed will drain air from the tank more rapidly and cause the unit to cycle on more frequently. 1) When finished, always drain the tank and unplug the unit. Never leave the unit plugged in and/or running unattended. -
Page 15: Checking The Safety Valve
DANGER! Unplug the air compressor and release all air from the tanks before servicing. Failure to depressurize tanks before attempting to remove valve cause serious personal injury. Rotate drain valves clockwise until tightly closed. CHECKING THE SAFETY VALVE WARNING! Do not attempt to tamper with the safety valve. Anything loosened from this device could fly up and hit you. -
Page 16: General Maintenance
WARNING! Always wear eye protection with side shields. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. WARNING! Always release all pressure, all pressure, disconnect from power supply, and allow unit to cool to the touch before cleaning or making repairs on the air compressor. -
Page 17: Changing The Oil
REPLAING THE AIR FILTER 1) Turn the air filter cover counterclockwise approximately one- quarter turn. 2) Remove the cover 3) Remove the air filter. 4) Install new air filter. 5) Replace the air filter cover and secure it by turning it clockwise. CHANGING THE OIL Replace the oil after the first 10 hours of operation and every 100 hours following the oil change. -
Page 18: Environmental Protection
ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environmental-friendly recycling. TROUBLESHOOTING PROBLM CAUSE POSSIBLE SOLUTION Loss of power or Check for proper use of overheating extension cord Check to be sure unit is NO electrical power plugged in Blown shop/house fuse... - Page 19 Check all connection with Loose connections (fitting soap and water solution , tubing, etc.) and tighten Loose drain valve Tighten drain valve Air tank pressure Take compressor to drops when service center compressor shuts DANGER Check valve leaking Do not disassemble check valve, tank drain valves or safety relief valve with air in tank- bleed tanks.
