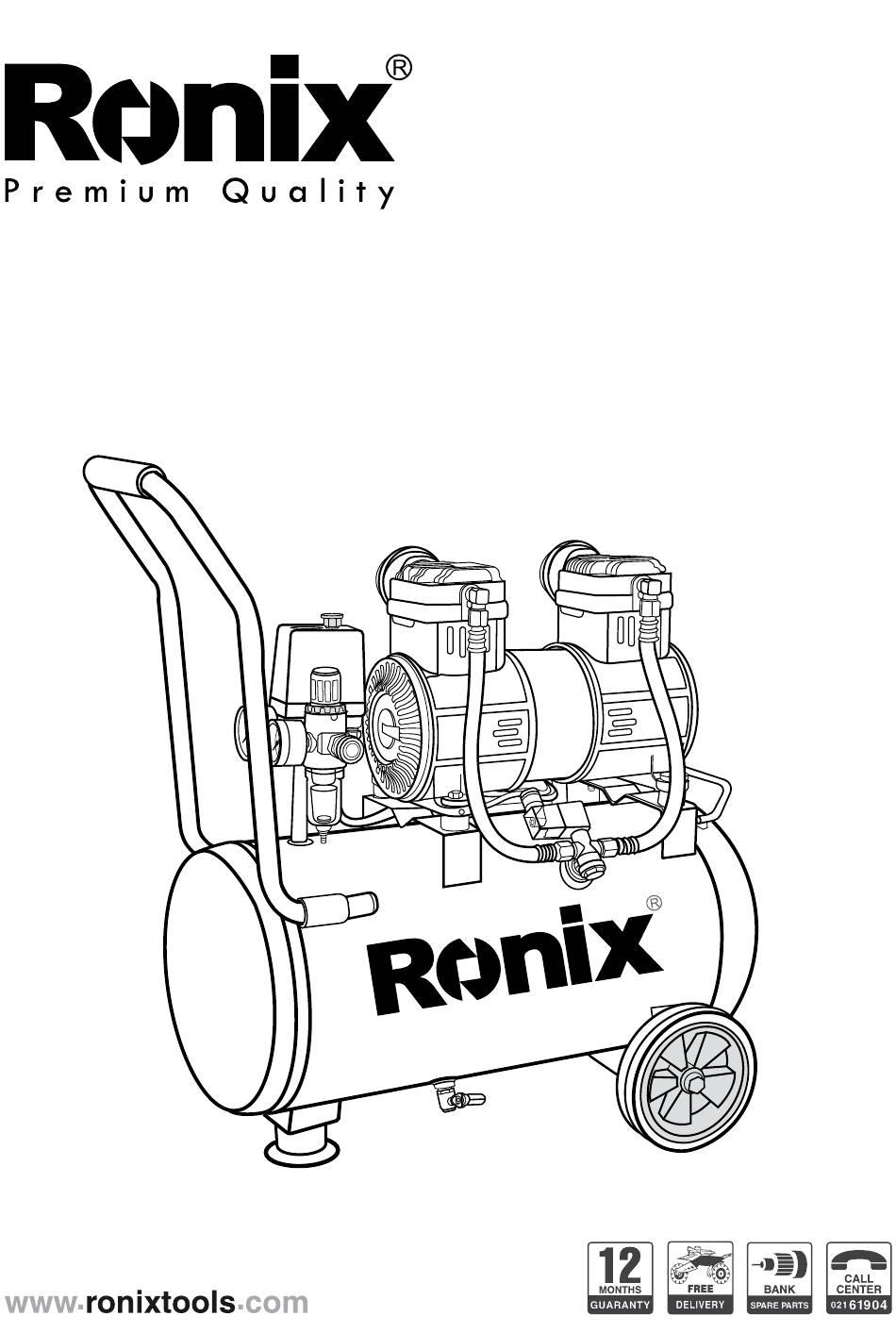

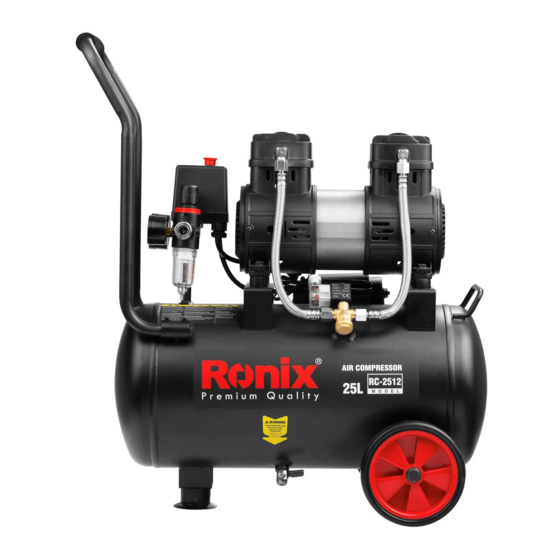

- Page 1 AIR COMPRESSOR 25LITER RC-2512...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS Model RC-2512 1380 W Power Voltage 220V Frequency 50Hz No Load Speed 2800rpm Air Tank Capacity Max Pressure 0.8MPa Air delivery 100L/Min Net. Weight 23Kg PARTS LIST Handle On/Off Cylinder Silencer Capacitance Head Switch Adjusting pressure valve Reset Button... -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. - Save all warnings and instructions for future reference. - The term “power tool”... -
Page 4: Personal Safety
- If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. - Use of power supply via a RCD with a rated residual current of 30mA or less is always recommended. - Page 5 POWER TOOL USE AND CARE - Don’t force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. - Don’t use the power tool if the switch doesn’t turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 6: Special Safety Rules
AIR COMPRESSOR USE AND CARE - Do not exceed the pressure rating of any component in the system. - Protect material lines and air lines from damage or puncture. Keep hose and power cird away from sharp objects, chemical spills, oil, solvents, and wet floors. - Page 7 used. This will allow moisture to completely drain out and help prevent corrosion on the inside of tanks. - Risk of fire or explosion. Do not spray flammable liquid in a confined area must be well ventilated Do not smoke while spraying or spray where spark or flame is present.
- Page 8 - Always follow all safety rules recommended by the manufacturer of your air tool, in addition to all safety rules for the air compressor. Following this rule will reduce the risk of serious personal injury. - Never direct a jet of compressed air toward people or animals. Take care not to blow dust and dirt towards yourself or others.
- Page 9 - If the power supply cord is damaged, it must be replaced only by the manufacture or by an authorized service center to avoid risk. - Save these instructions. Refer to them frequently and use them to instruct others who may use this product. - If you loan someone this product, loan them these instructions also.
- Page 10 Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material unit you have carefully inspected and satisfactorily operated the product. WARRNING! If any parts are damaged or missed, do not operate this product until the parts are replaced.
-
Page 11: Break-In Period
1) Facing the back of the air compressor, grasp the handle firmly with two hands. 2) Life the air compressor toward you until it balances on the wheels. 3) Push the unit along to the desired location. Lower their air compressor unit it sits securely on a flat surface. dehumidifier role: dehumidifier tank absorbs and gathers droplets of water mixed in the compressed air to longers the life of the component working by compressed air. -
Page 12: Using The Air Compressor
the manufacturer. When using this air compressor as an inflation device, always follow the maximum inflation guidelines stated by the manufacturer of the item being inflated. WARNING! Always ensure the switch is in the OFF (O) position and the regulator pressure gauge reads zero before changing air outlet. -
Page 13: Draining The Tanks
NOTE Always use the minimum amount of pressure necessary for your application. Using a higher pressure than needed will drain air from the tank more rapidly and cause the unit to cycle on more frequently. 1) When finished, always drain the tank and unplug the unit. Never leave the unit plugged in and/or running unattended. -
Page 14: Checking The Safety Valve
NOTE Condensate is a polluting material and should be disposed of in compliance with local regulations. 1) If drain valves are clogged, release all air pressure, remove and clean valves, then reinstall. DANGER! Unplug the air compressor and release all air from the tanks before servicing. -
Page 15: General Maintenance
MAINTENANCE WARNING! When servicing use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING! Always wear eye protection with side shields. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. WARNING! Always release all pressure, all pressure, disconnect from power supply, and allow unit to cool to the touch before cleaning or making repairs on... -
Page 16: Bearing Lubrication
this product for extended work on these types of materials. However, if you do work with any of these materials, it is extremely important to clean the product using compressed air. BEARING LUBRICATION All of the bearings in this product are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions. - Page 17 Loose connections (fitting , Check all connection with soap and water tubing, etc.) solution and tighten Loose drain valve Tighten drain valve Air tank pressure drops Take compressor to service center when compressor shuts DANGER Check valve leaking Do not disassemble check valve, tank drain valves or safety relief valve with air in tank- bleed tanks.
