Summary of Contents for Cognex In-Sight 3800 Line Scan

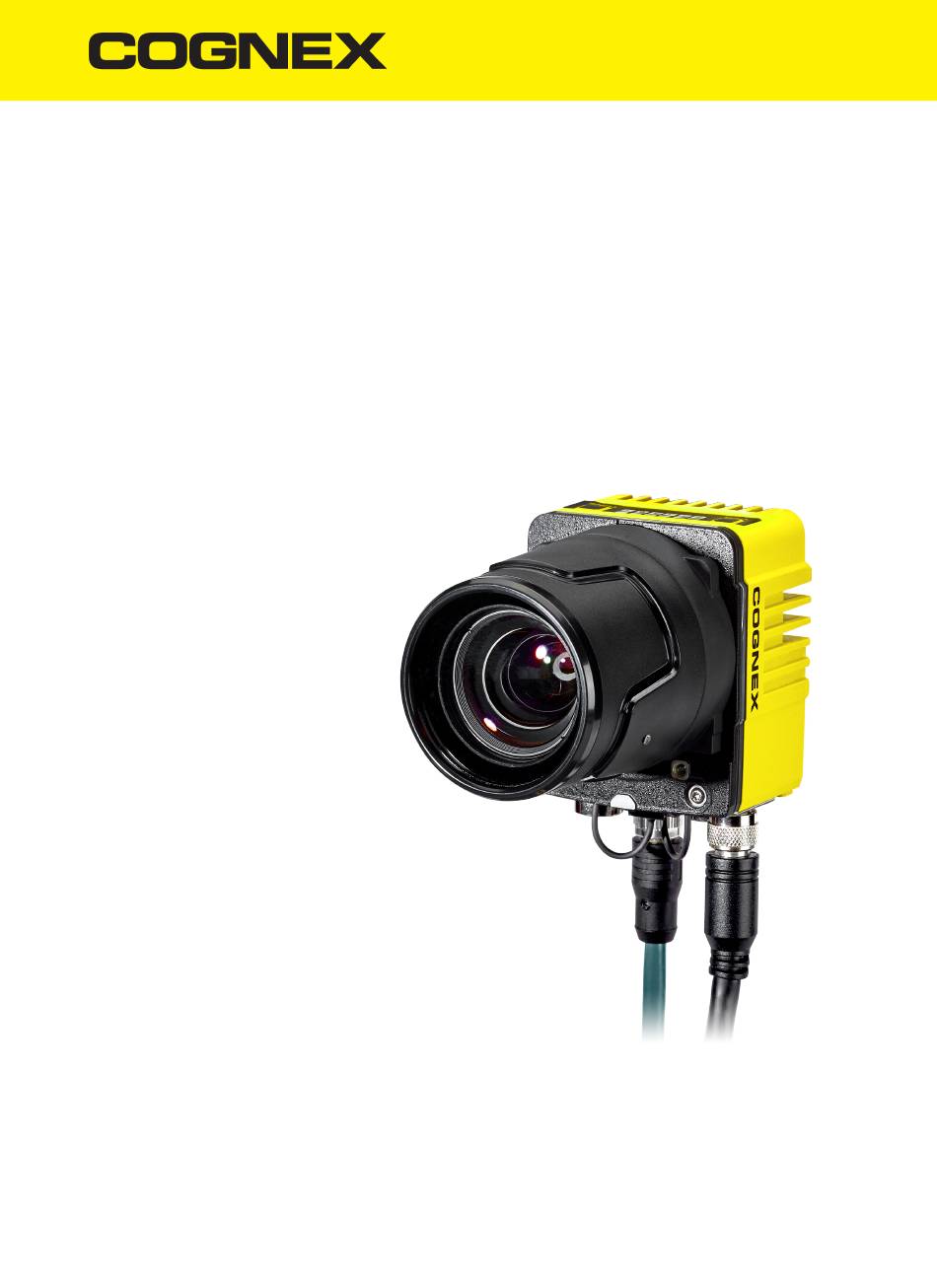

- Page 1 ® In-Sight 3800 Line Scan Reference Manual 2025 January 15...
- Page 2 Copyright © 2024. Cognex Corporation. All Rights Reserved. Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as well as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents.
- Page 3 Precautions Precautions To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: The safety of any system incorporating this product is the responsibility of the assembler of the system. Do not install Cognex products where they are exposed to environmental hazards such as excessive heat, dust, moisture, humidity, impact, vibration, corrosive substances, flammable substances, or static electricity.
- Page 4 Symbols Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.
- Page 5 Installing the In-Sight Vision Suite Trigger Types External Triggers Industrial Protocols Specifications In-Sight 3800 Line Scan Vision System In-Sight 3800 Line Scan Vision System Image Sensor Spectral Response Diagrams Acquisition Trigger Input Encoder Inputs High-Speed Outputs Ethernet Cable Breakout Cable...
- Page 6 Table of Contents Clean the Vision System Image Sensor Window Clean the Vision System Lens Cover Regulations and Conformity 中 国 大陆 RoHS (Information for China RoHS Compliance) For European Community Users...

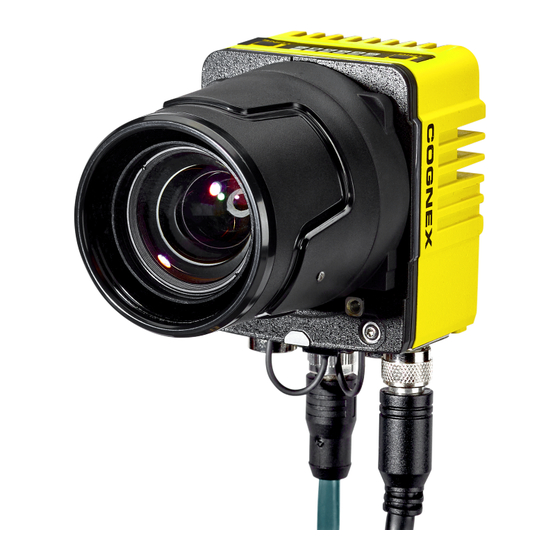

- Page 7 About the In-Sight 3800 Line Scan The In-Sight 3800 Line Scan is the first smart line scan vision system to offer embedded AI tools. With up to 4K resolution, the 3800 Line Scan can perform tasks such as imaging continuous web materials, fast moving parts, large parts, and cylindrical parts with great speed and accuracy.
- Page 8 Getting Started In-Sight 3800 Line Scan Series Accessories You can purchase the following components separately. For a list of options and accessories, contact your local Cognex sales representative. Lenses Accessory Product Number Illustration 6 mm Moritex SR series lens ML-U0618SR-18C...
- Page 9 Getting Started Cables Note: Cables are sold separately. Accessory Product Number Illustration Ethernet Cable, X-coded M12-8 to CCB-84901-2001-xx (straight, xx specifies length: 2m, 5m, 10m, RJ-45 15m, 30m) Ethernet Cable, X-coded M12-8 to CCB-84901-2RBT-xx (straight, xx specifies length: 2m, 5m, 10m) RJ-45 Breakout Cable, M12-12 to Flying CCB-PWRIO- xx (straight, xx specifies length: 5m, 10m, 15m)
- Page 10 Read this section to learn how the vision system connects to its standard components and accessories. Note: Cables are sold separately. If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are keyed to fit the connectors on the vision system.
- Page 11 Setting Up Your In-Sight Vision System Vision System Layout The image and table below shows the elements of the vision system. Number Description Integrated Illumination connector Note: Not supported for 3800 In-Sight Line Scan vision systems. Imager/C-mount flange Lens connector Note: Not supported for 3800 In-Sight Line Scan vision systems.
- Page 12 Setting Up Your In-Sight Vision System Error LED indicator Coglink/USB-C status LED Tune button Power I/O Breakout cable connector Ethernet connector 0 Micro-HDMI connector Coglink/USB-C connector Ethernet connector 1 Light connector Note: Not supported for 3800 In-Sight Line Scan vision systems. Indicator lights...
- Page 13 Setting Up Your In-Sight Vision System Dimensions The following sections list dimensions of the vision system. Note: Dimensions are in millimeters and are for reference purposes only. All specifications are for reference purposes only and can change without notice. In-Sight 3800 with 45 mm Lens Cover In-Sight 3800 with 60 mm Lens Cover...
- Page 14 Setting Up Your In-Sight Vision System In-Sight 3800 with 75 mm Lens Cover In-Sight 3800 - Smart Camera Only...
- Page 15 Setting Up Your In-Sight Vision System Mounting the Vision System The vision system provides mounting holes for attachment to a mounting surface. CAUTION: The vision system has to be grounded, either by mounting the vision system to a fixture that is electrically grounded or by attaching a wire from the mounting fixture of the vision system to frame ground or Earth ground.
- Page 16 Setting Up Your In-Sight Vision System Converter Mounting Bracket (ISB-7000-7K) 1. Align the converter mounting bracket with the mounting holes on the vision system. 2. Insert the M3 screws into the mounting holes and use a 2.5 mm hex wrench to tighten. The maximum torque is 0.90 Nm (8 in-lb).
- Page 17 Setting Up Your In-Sight Vision System Connection Options This section summarizes connection options. Connecting the Ethernet Cable CAUTION: The Ethernet cable shield has to be grounded at the far end. If the far end device is not grounded, add a ground wire in compliance with local electrical codes.
- Page 18 Follow the steps below to install and connect your vision system to the In-Sight Vision Suite. 1. Download the latest version of the In-Sight Vision Suite from support.cognex.com/ and follow the on-screen steps. 2. Connect the 3800 series vision system to your PC.
- Page 19 Specifications Specifications The following sections list general specifications for the vision system. In-Sight 3800 Line Scan Vision System Specification In-Sight 3800 Lens Type C-Mount only Trigger 1 opto-isolated, acquisition trigger input. Discrete Inputs 1 opto-isolated, acquisition trigger input. 2 encoder line inputs for quadrature support.
- Page 20 / 15 mm) with cables or cable plugs and a 150 gram or lighter lens attached. Regulations/Conformity CE, FCC, KCC, TÜV SÜD NRTL, EU RoHS, China RoHS In-Sight 3800 Line Scan Vision System Image Sensor Specification 1K Mode 2K Mode...
- Page 21 Note: The acquisition input is compliant to IEC 61131-2 Type 1, 2, 3. The current input limit is 2.5 mA. The voltage range is between 12 - 30 V. The maximum in put frequency is 500 kHz, and depends on the length of the cable. The 500 kHz is valid with up to 15 meters long Cognex cables. Number...
- Page 22 Note: The encoder inputs are compliant to IEC 61131-2 Type 1, 2, 3. The current input limit is 2.5 mA. The voltage range is between 10 - 30 V. The maximum input frequency is 500 kHz, and depends on the length of the cable. The 500 kHz is valid with up to 15 m long Cognex cables. Number...
- Page 23 Specifications High-Speed Outputs Specification Description Voltages : 26 VDC through external load : ≤ ± 3 V @ 50 mA Current : 50 mA maximum sink or source current Each line is protected against over-current, short circuits and transients from switching inductive loads. High current inductive loads require an external protection diode.
- Page 24 Specifications Ethernet Cable The Ethernet cable provides Ethernet connectivity to the vision system. The Ethernet cable is used to connect the vision system to other network devices. P1 Pin Number Wire Color Signal Name P2 Pin Number White/Orange TxRx A + Orange TxRx A - White/Green...
- Page 25 Specifications Breakout Cable The Breakout cable provides connections to an external power supply, the acquisition trigger input, general-purpose inputs, high-speed outputs, and RS-232 serial communications. The Breakout cable is not terminated. The Breakout cable can be connected to devices, such as a trigger sensor or strobe light. The Breakout cable is not terminated.
- Page 26 Cleaning and Maintenance Cleaning and Maintenance Clean the Housing To clean the outside of the vision system housing, use a small amount of mild detergent cleaner or isopropyl alcohol on a cleaning cloth. Do not pour the cleaner on the vision system housing. CAUTION: Do not attempt to clean any In-Sight product with harsh or corrosive solvents, including lye, methyl ethyl ketone (MEK) or gasoline.
- Page 27 Regulations and Conformity Regulations and Conformity Note: For the most current CE and UKCA declaration and regulatory conformity information, see the Cognex support site: cognex.com/support. In-Sight 3800 vision systems have the Regulatory Model number 50103 and meet or exceed the requirements of all applicable standards organizations for safe operation.
- Page 28 表 示用于本 部件的至 少一种 均 质 材料中所 含的危害 物 质超 过GB / T26572 - 2011 的限 制 要求 。 For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE).
- Page 29 Copyright © 2024 Cognex Corporation. All Rights Reserved.
