  • Page 1 ® DataMan 360 Series Quick Reference Guide 2020 October 05 Revision: 6.2.1.1...
  • Page 2 CAUTION - Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Do not attempt to service or repair this product -- return it to Cognex for service. Do not permit anyone other than Cognex Corporation to service, repair, or adjust this product.

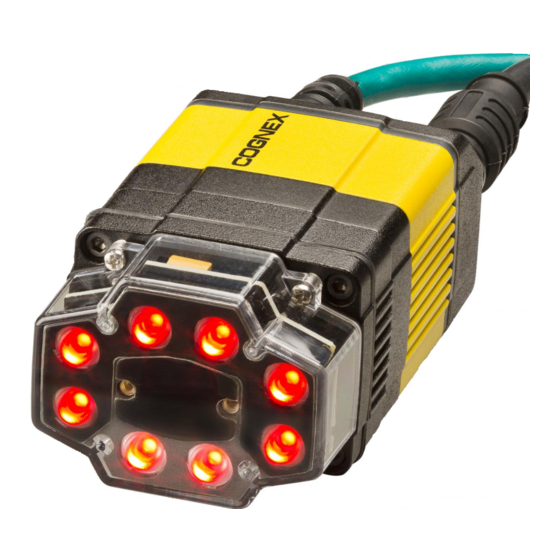

  • Page 3: Product Overview

    Product Overview Laser aimer Illumination LED clusters External illumination mounting point Mounting holes (M3 x 5 mm) Indicator light ring Trigger button Power Train status Read/no-read indicator Network Error Peak meter Tuning button Ethernet SD card slot External light control Power, I/O, and RS232...
  • Page 4 DataMan 360 Accessories LENS OPTIONS AND COVERS 10.3 mm M12 lens with locking DM300-LENS- 10.3 mm IR M12 lens with locking DM300-LENS- 10-IR Liquid lens module and pre-focused 10.3 mm or 10.3 mm DM300-LENS- IR M12 lens with wrench 10LL DM300-LENS- 10LL-IR 19 mm liquid lens module DM300-LENS-...
  • Page 5 8 mm F5.6 fixed aperture lens LEC-CFF08- F5.6 12 mm F8 fixed aperture lens LEC-CFF12-F8 16 mm F8 fixed aperture lens LEC-CFF16-F8 16 mm F11 fixed aperture lens LEC-CFF16-F11 25 mm F8 fixed aperture lens LEC-CFF25-F8 25 mm F11 fixed aperture lens LEC-CFF25-F11 35 mm F8 fixed aperture lens LEC-CFF35-F8...
  • Page 6 DM500 Lens cover extender DM500- LNSEXT-000 Blue, CKR-BP470 red, CKR-BP635 green, CKR-BP525 orange bandpass filters CKR-BP590 Clear lens cover DM300-CLCOV Clear lens cover with white LED illumination DM300-CLCOV- (Risk Group Exempt acc. IEC 62471) Diffuse lens cover with red LED illumination, DM300-DLCOV- with blue LED illumination, with IR LED illumination,...
  • Page 7 Red LED high-powered integrated light, 10.3 mm lens DM360-HPIL- (Risk Group Red LED Exempt acc. IEC 62471, Risk Group Green LED Aimer Exempt acc. IEC 62471) Polarized red LED high-powered integrated light, ESD DM360-HPIL- safe, 10.3 mm lens RE-P (Risk Group Red LED Exempt acc. IEC 62471, Risk Group Green LED Aimer Exempt acc.
  • Page 8 Back light CLRB-F100100G1 Coaxial (DOAL) light CLRO-K5050G1 Spot light CLRS-P14G1 Dark-field light CLRD-D120G1 Bar light, blue IVSL-LX520-470 Bar light, red IVSL-LX520-625 HPIA, Red narrow DM30X-HPIA3-625 HPIA, Red wide DM30X-HPIA3-625-W HPIA, Red narrow with polarizer DM30X-HPIA3-625P HPIA, Red wide with polarizer DM30X-HPIA3-625P-W HPIA, White narrow DM30X-HPIA3-WHI...
  • Page 9 Red narrow DM30X-HPIA-625 Red wide DM30X-HPIA-625-W Red narrow with polarizer DM30X-HPIA-625P White narrow DM30X-HPIA-WHI White wide DM30X-HPIA-WHI-W Blue narrow DM30X-HPIA-470 Blue wide DM30X-HPIA-470-W Infrared narrow DM30X-HPIA-IR Infrared wide DM30X-HPIA-IR-W OTHER Connection cable 24V, I/O, RS-232 (y straight/angled, xx specifies CCB-M12x12Fly-xx length) Connection cable 24V, I/O, RS-232 CCBL-05-01...
  • Page 10 Laser aimer (use with HPIA) DM300-AIMER-00 Connection module (4 or 1 camera) DMA-CCM-4X-xx or (xx can be US, EU, UK or JP) DMA-CCM-1-xx External light mounting brackets (xx specifies light type) DM300-ELMB-xx (may get used in combination with DM100-PIVOTM-00 or DM500- BRKT-000 if pivoting is required) Universal Mounting Bracket DM100-UBRK-000...
  • Page 11 Dimensions S-Mount (M12) Lens version C-Mount Lens version...

  • Page 12: Field Of View And Reading Distances

    Field of View and Reading Distances Note: Due to tolerances, ranges can vary by +/- 5 % from unit to unit. 10.3 mm lens (green) 16 mm lens (red) 25 mm lens (blue) inner: DM360 inner: DM360 inner: DM360 outer: DM362 , DM363 outer: DM362 , DM363 outer: DM362 , DM363...
  • Page 13 Device Distances in mm/2D min. code 10.3 mm Distances in mm/1D min. code 10.3 mm lens lens DM360 , DM362 0-75 5 MIL 0-215 7 MIL 0-210 10 MIL 0-409 13 MIL 0-374 20 MIL 0-500 18 MIL DM363 20-110 5 MIL 20-350 7 MIL 15-325...
  • Page 14 Device Distances in mm/2D min. code 19 Distances in mm/1D min. code 19 mm lens mm lens DM360 (inner, brown), DM362 61-97 2 MIL 59-173 2 MIL (outer, black) 58-167 4 MIL 56-322 4 MIL 58-310 8 MIL 56-471 6 MIL DM363 (outer, black) 61-109 2 MIL...
  • Page 15 24 mm lens, DM363 : green 24 mm lens, DM362 : brown 24 mm lens, DM360 : red Device Distances in mm/2D min. code 24 mm lens Distances in mm/1D min. code 24 mm lens DM360 , DM362 80-120 2 MIL 80-230 2 MIL 80-230 4 MIL...

  • Page 16: Connecting The Reader

    Connecting the Reader CAUTION: The Ethernet cable shield must be grounded at the far end. Whatever this cable is plugged into (usually a switch or router) should have a grounded Ethernet connector. A digital voltmeter should be used to validate the grounding.

  • Page 17: Installation

    Installation procedures and specifications are presented in detail in the DataMan 360 Series Reader Reference Manual, which is installed with the DataMan Setup Tool. From the Windows Start menu, select the following to access the manual: All Programs > Cognex > DataMan Software vx.x.x > Documentation. Note: Cables are sold separately.
  • Page 18 Mounting CAUTION: It is recommended the reader be grounded, either by mounting the reader to a fixture that is electrically grounded or by attaching a wire from the reader’s mounting fixture to frame ground or Earth ground. If a ground wire is used, it should be attached to one of the four mounting points on the back plate of the reader;...

  • Page 19: Connect The Ethernet Cable

    Connect the Ethernet Cable CAUTION: The Ethernet cable shield must be grounded at the far end. Whatever this cable is plugged into (usually a switch or router) should have a grounded Ethernet connector. A digital voltmeter should be used to validate the grounding.
  • Page 20 Never connect voltages other than 24 VDC. Always observe the polarity shown. 3. Attach the Breakout cable's M12 connector to the DataMan 360 series reader's 24 VDC connector. 4. Restore power to the 24 VDC power supply and turn it on if necessary.
  • Page 21 3. Connect the cable to a 24V power supply. To configure a DataMan 360 series reader, the DataMan Setup Tool software must be installed on a networked PC. The DataMan Setup Tool is available from the DataMan support site: http://www.cognex.com/support/dataman.
  • Page 22 DataMan 360 Series Specifications Specification DataMan 360 Reader Weight 165 g Operating 0ºC — 40ºC (+32ºF — 104ºF) 0ºC — 50ºC (+32ºF — 122ºF) Temperature Storage -10ºC — +60ºC (+14ºF — +140ºF) Temperature Maximum < 95% (non-condensing) Humidity Environmental IP65 (with cable or protection cap attached to all connectors, front cover properly installed)
  • Page 23 Specification DataMan 360 Reader Power Supply 24 V +/- 10% Options: Requirements Internal illumination (non-HPIL*): 250 mA maximum, 5 W Internal illumination (HPIL*): 2.2 A maximum, 6 W External illumination: up to 1.2 A average, 45 W, peak current according to illumination, these values depend on the illumination and its configuration Supplied by LPS or NEC class 2 only *HPIL denotes one of the DM360-HPIL-RE or DM360-HPIL-RE-P accessories...
  • Page 24 DataMan 360 Series Imager Specifications Specification DataMan 360 Series Imager Image Sensor 1/1.8 inch CMOS Image Sensor Properties 6.9 mm x 5.5 mm (H x V); 5.3 µm square pixels (DataMan 360 and 362 ), 4.5 µm square pixels (DataMan 363)
  • Page 25 To avoid accelerated aging of built-in illumination LEDs, which results in light intensity degradation, consider the following duty cycle limits above 25°C (77 °F): at 35 °C (95 °F): 4% duty cycle, for example, 750 µs exposure and 18493 µs interval at 45 °C (113 °F): 2% duty cycle, for example, 350 µs exposure and 18093 µs interval or 1000 µs exposure and 50000 µs interval...
  • Page 26 Please read these guidelines carefully before using your device. Regulator Specification Cognex Corporation Manufacturer One Vision Drive Natick, MA 01760 USA FCC Part 15, Class A...

  • Page 27: Laser Safety Statement

    2014/30/EU Electromagnetic Compatibility Directive. For further information please contact: Cognex Corporation, One Vision Drive, Natick, MA 01760, USA . Cognex Corporation shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE.

  • Page 28: Led Safety Statement

    Risk Group 1 (Low-Risk). No further labeling is required. For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE).
  • Page 29 The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration.
  • Page 30 中 国 大 陆 RoHS (Information for China RoHS Compliance) 根 据 中 国 大 陆 《 电 子 信 息 产 品 污 染 控 制 管 理 办 法 》 ( 也 称 为 中 国 大 陆 RoHS)， 以...
