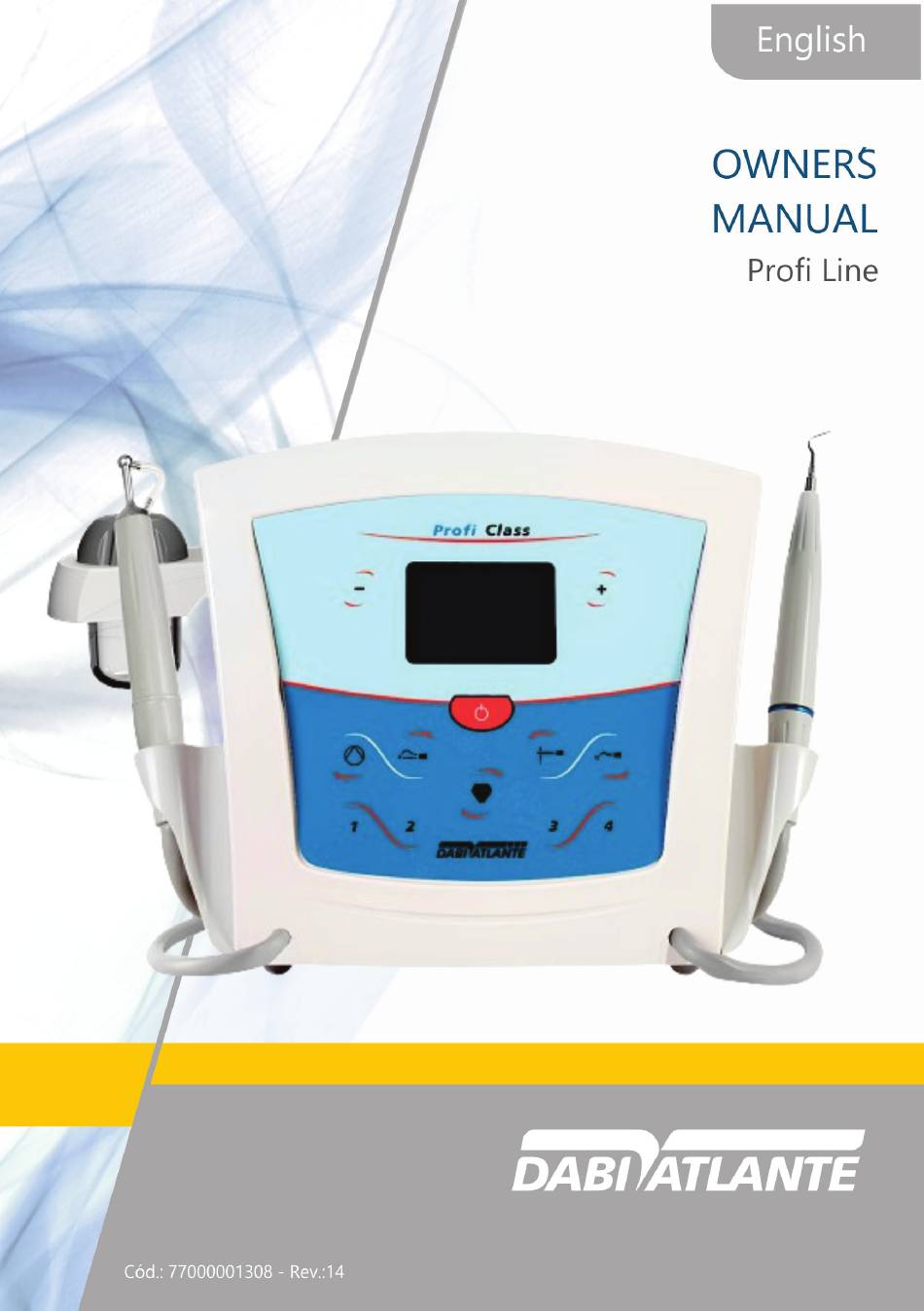

Dabi Atlante Profi Series Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Profi Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dabi Atlante Profi Series

Summary of Contents for Dabi Atlante Profi Series

  • Page 2 Technical Name: Equipment for Dental Prophylaxis Sodium Bicarbonate/Ultrasound Trade Name: Equipment for Prophylaxis by Ultrasound / Bicarbonate Jet Models: Profi Neo / Profi Neo LED / Profi Class / Profi Class LED Brand: Dabi Atlante Technical Responsible: Daniel R. de Camargo CREA-SP: 5062199650 ANVISA Registration Nº: 10069210086...
  • Page 3 TRADEMARKS All terms mentioned in this manual that are known trademarks, registered trademarks or service marks have been appropriately labeled as such. Other products, services or terms that are mentioned in this manual may be trademarks, registered trademarks or service marks of their respective owners.
  • Page 4 SUMMARY 1. GENERAL INFORMATION..................7 1.1.
  • Page 5 9. STANDARDS AND REGULATIONS ................45 10.
  • Page 6 GENERAL INFORMATION Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...
  • Page 7 1. GENERAL INFORMATION 1.1.DEAR CUSTOMER Congratulations on your excellent choice. When you buy ALLIAGE quality equipment, you can be sure of purchasing products with technology compatible with the best in the world in their class. This manual provides you with a general presentation of your equipment, describing important details that can guide you in its correct use, as well as in solving small problems that may eventually occur.
  • Page 8 Sterilizable in a steam sterilizer Catalog number ( a u t o c l a v e ) s p e c i f i e d temperature Indicates that the product must be taken to a special waste collection Type B applied parts site at the end of its useful life.
  • Page 9 Manufacturer Manufacturing date Model Periodontal ultrasound Bicarbonate jet Endo ultrasound P o w e r d o w n a n d l a n g u a g e Peristaltic pump selection Po we r i n c re a s e a n d l a n g u a g e Access to programming memory 1 selection Access to programming memory 2...
  • Page 10 WARNINGS, CAUTIONS AND RECOMMENDATIONS Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...
  • Page 11 2. WARNINGS, CAUTIONS AND RECOMMENDATIONS General warnings Read and understand all instructions contained in these instructions for use before installing or operating this equipment. Use only the equipment in perfect condition and protect yourself, patients and others against possible dangers. The Ultrasound / Bicarbonate Jet Prophylaxis Equipment has 4 different interactions with the user, they are: - Identification label: Located on the side of the equipment;...
  • Page 12 • The equipment must be installed only by authorized technical assistants. • The service manual's recommendations regarding the mandatory existence of protective earth must be followed. • The recommendations in the service manual regarding the mandatory existence of a protective circuit breaker must be followed.
  • Page 13 damaged, loose or removed enclosures or parts of the equipment before using the equipment again. • Do not touch the equipment or use it if it is being repaired or if the equipment's cabinets have been removed. • Do not open or remove any of the equipment's cabinets. No internal parts can be repaired by the user.
  • Page 14 Precautions for reducing environmental impact Alliage S/A aims to achieve an environmental policy to promote the supply of environmentally conscious medical and dental products that continually minimize environmental impact and are more friendly to the environment and human health. To maintain a minimal impact on the environment, observe the recommendations below: •...
  • Page 15 SYSTEM OVERVIEW Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...
  • Page 16 3.SYSTEM OVERVIEW 3.1.SYSTEM DESCRIPTION Equipment for prophylaxis by ultrasound and Bicarbonate Jet, modern and bold design, assembled together composed of body and cover made of ABS (Acrylonitrile, butadiene, styrene) and digital control panel in polycarbonate. Available in cart and bench models. Synchronized electropneumatic system, with valves that provide cuts and aspirations of water instantly, thus avoiding water contact with bicarbonate at the tip of the handpiece.
  • Page 17 3.2.2.Significant physical characteristics A generator of ultrasonic waves (with frequency from (24,000 to 30,000 Hz) which transmit mechanical vibration to active instruments in the same frequency by means of a transducer using ceramic pieces. Helps dentists perform different procedures in various dental fields such as periodontics, endodontics, prosthetics, surgery and others.
  • Page 18 3.3. MAIN PRODUCT COMPONENTS Profi Neo / Profi Neo LED fig. A Profi Class / Profi Class LED fig. B LEGEND 1 - Sodium bicarbonate jet handpiece (fig. A and B). 2 - Fixed support for the sodium bicarbonate and/or ultrasound jet handpiece (fig. A and B). 3 - Ultrasound handpiece (fig.
  • Page 19 Liquid reservoir cap Liquid reservoir Liquid reservoir fixing columns Foot control Electrical power cable Compressed air supply hose Motor shaft Peristaltic pump Silicone hose LED liquid reservoir lighting On-off key Compressed air control switch Air filter fig. C...
  • Page 20 Hose Liquid reservoir Hose Liquid reservoir fixing columns Hose connection Peristaltic Pump Stem Peristaltic Pump Peristaltic Pump Peristaltic Pump Stem fig. D...
  • Page 21 Painel Profi Neo / Profi Neo LED Painel Profi Class / Profi Class LED fig. F fig. E LEGEND 1 - On/Off switch and selection of ultrasound and sodium bicarbonate jet functions (fig. E) 2 - Ultrasound power selection switch (fig. E) 3 - Orange range indicator of recommended power limit for Endo Tips (fig.
  • Page 22 fig. G fig. H fig. I fig. J fig. L fig. K LEGEND 01 - Tip Endo/Perio/Retro (fig. G) 02 - Endo/Perio/Retro Tips installation key (fig. H) 03 - Ultrasound Handpiece Protective Cover (fig. H) 04 - Dental Tip Adapter (fig.I) 05 - Clamping nut (fig.
  • Page 23 3.4.SETS AND ACCESSORIES All parts, accessories and options described in the owner's manual are for exclusive use. The use of any parts, accessories or materials not specified in this manual is the sole responsibility of the user. Accessories, parts and pieces that accompany LEGEND 01.
  • Page 24 Accessories that do not accompany the product LEGEND 01. Tip Endo L 10. Tip Retro R3 02. Tip Remo C 11. Tip Retro R5 03. Tip Remo N 12. Tip Dent C1 04. Tip Endo G 13. Tip Dent C2 05.
  • Page 25 Consumables 01. Sodium bicarbonate 3.5.APPLIED PARTS The following item is used in the treatment of the patient Contact Type of parts Contact type Classification duration Mucous membrane/ Type B TIPs Removable <60s Bone structure Transducer cover Removable Mucous membrane <60s Type B Bicarbonate Jet Transducer cover...
  • Page 26 3.6.LABEL POSITIONING The following figure illustrates the location of the labels on the equipment components. Demonstrative image Demonstrative image Real dimensions diameter. 10 mm Real dimensions 50 x 23 mm Demonstrative image Real dimensions 63 x 48 mm LEGEND a. Identification label b.
  • Page 27 3.7.SYSTEM REQUIREMENTS 3.7.1.Compressor requirements The compressor is required to provide compressed air for clinical and laboratory use, having stable performance and flow capacity in accordance with the minimum requirements for the installation of the Dental Set, in addition to being oil and emission free, smoke, vapors or unpleasant odors. It must have a safety system with a valve that goes into operation to release the pressure in case the pressure switch fails and also an overload protector in order to protect the equipment from overheating.
  • Page 28 OPERATION Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...
  • Page 29 4.OPERATION 4.1.INITIAL PREPARATION To isolate the equipment from the mains, use the general switch. To start operating the equipment, follow the instructions below: 1. Check whether the equipment is properly connected to the electrical network; 2. Check that the equipment's ON/OFF switch is in the "ON" position; 3.
  • Page 30 4.2.2. Bicarbonate jet operation The bicarbonate jet removes dark stains from teeth, caused by cigarettes, coffee, tea, etc., associated with bacterial plaque and not calculus. To obtain the best result from the bicarbonate jet, we recommend that you respect the distance between the handpiece and the tooth (5mm), with an inclination of 30°...
  • Page 31 4.2.3.Techniques and applications All the tips of the ultrasound have the peculiarity of vibrating in a single plane (vibrations from front to back, and on the tip axis). The lateral vibrations common to other scalers do not exist, the straight displacement favors a more precise approximation of the tooth and gum.
  • Page 32 4.2.4.Supply of the bicarbonate jet To supply your equipment, we recommend using sodium bicarbonate that has characteristics similar to: Product composition: Sodium Bicarbonate (99.6%), Silicon Anhydrous, Essence - 105 microns spherical standard. For more information about the product, see the manufacturer's instructions on the product. 4.2.5.Filling the peristaltic pump reservoir Before filling the tank, check that the water to be used does not contain impurities or contaminants.
  • Page 33 CLEANING, DISINFECTION AND STERILIZATION Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...
  • Page 34 5.CLEANING, DISINFECTION AND STERILIZATION Before starting the cleaning and disinfection procedure, turn off the main switch of the equipment to avoid permanent damage. For your protection, during the cleaning and disinfection process of the equipment use PPE such as disposable gloves and goggles. 5.1.EQUIPMENT The cleaning and disinfection process must be performed at each patient change.
  • Page 35 After each day of use, place the equipment on a dry piece of cloth, incline it sideways at an angle of approximately 45°. Drain the air filter (fig. C, item 13) by pressing the depressurization pin until all the water has been eliminated. This procedure prevents clogging of the sodium bicarbonate jet tip.
  • Page 36 TROUBLESHOOTING Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...
  • Page 37 6.TROUBLESHOOTING 6.1.SOLUTION OF PROBLEMS Occasionally, malfunctions may occur during use. In the event of an error, restart the equipment and resume operation. If the problem persists, follow the instructions below. Failures Probable causes Solutions Not plugged in the power soure Plug it in outlet Fuse is burned out...
  • Page 38 INSPECTION AND MAINTENANCE Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...
  • Page 39 7.INSPECTION AND MAINTENANCE Maintenance or service procedures may only be carried out by a technical service authorized by the manufacturer. All instructions for using the equipment as intended are provided in this user guide. If a problem is detected and cannot be corrected with the instructions in the problem diagnostics section, contact the Alliage Service Department.
  • Page 40 Profi Class/Profi Class LED: O sistema identifica o desgaste da bomba e quando necessário sugere a troca da mesma por meio de um aviso no display. 7.3.CORRECTIVE MAINTENANCE The corrective maintenance that can be performed by the user Ultrasound / Bicarbonate Jet Prophylaxis equipment is limited to unblocking the bicarbonate jet pen.
  • Page 41 7.3.1.Equipment Alliage declares that the provision of circuit diagrams, component lists or any other information that provides technical assistance on behalf of the user, can be requested as long as previously agreed between the user and Alliage. The warranty will be void if the original parts are removed / replaced by unauthorized service technicians.
  • Page 42 WARRANTY Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...
  • Page 43 8.WARRANTY This equipment is covered by the warranty periods, terms and conditions contained in the Warranty Certificate that comes with the product.
  • Page 44 STANDARDS AND REGULATIONS Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...
  • Page 45 9.STANDARDS AND REGULATIONS This equipment has been designed and manufactured to meet the following rules: ABNT NBR IEC 60601-1:2010 Medical Electrical Equipment - Part 1: General requirements Amendment 1:2016 for basic security and essential performance. Medical Electrical Equipment, Par t 1-2: General basic safety requirements and essential performance - Collateral ABNT NBR IEC 60601-1-2:2017 standard: Electromagnetic interference - Requirements...
  • Page 46 TECHNICAL SPECIFICATIONS Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...
  • Page 47 10. TECHNICAL SPECIFICATIONS 10.1 EQUIPMENT CLASSIFICATION Characteristics Profi Neo / Profi Class / Profi Neo LED Profi Class Ultrasound Handpiece Sodium Bicarbonate Jet Handpiece 2 Handpieces: Ultrasound and Bicarbonate Jet Injected ABS Framework Frequency Stabilizer Electronic Circuit Piezoeletric Ceramic Transdutor Transdutor Removable Caps for sterilization Keys with protection for tips installation Air filter...
  • Page 48 10.2.APPLIANCE INFORMATION (GENERAL) Connection to suitable power supply External power supply Power supply voltage 127 / 220 V~ (Bivolt) Power supply frequency 50 / 60 Hz Allowable fluctuation +/- 10 % Number of phases Biphasic Stand-by rated current 2,6 mA - 127 V~ 1,5 mA - 220 V~ Rated current during load 3,5A (máx) - 127 V~...
  • Page 49 10.3.SPECIFIC INFORMATION Air pressure 80 PSI (5,52 BAR) Maximum air consumption 80 l/min Water tank capacity 1000 ml 10.4.ULTRASOUND SPECIFICATIONS Ultrasound Vibration Frequency 30.000 Hz Consumption of irrigating liquid 28 ml/min Power consumed 15 VA Transducer system Electric piezo ceramic Maximum tip temperature in normal use 114,2°C Maximum rate of temperature rise of tip...
  • Page 50 Recommended ambient temperature range +21ºC to +26ºC Operating relative humidity range (non-condensing) 30% to 75% Atmospheric pressure range 700 hPa to 1060 hPa (525 mmHg to 795 mmHg) Operating altitude ≤ 2000 m...
  • Page 51 ELECTROMAGNETIC COMPATIBILITY Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...
  • Page 52 11.ELECTROMAGNETIC COMPATIBILITY The Equipment for Prophylaxis by Ultrasound / Bicarbonate Jet is intended for use in the electromagnetic environment specified below. The buyer or user should ensure that it is used in such an environment. The Equipment for Prophylaxis by Ultrasound / Bicarbonate Jet is suitable for use in a professional health care environment, not including areas where sensitive equipment or sources of intense electromagnetic disturbances are present, such as the RF shielded room of a magnetic resonance imaging system.
  • Page 53 11.2.ORIENTATION AND DECLARATION FOR ELECTROMAGNETIC IMMUNITY Basic EMC standard or Phenomenon Immunity test level Compliance level test method Electrostatic discharge IEC 61000-4-2 ±8 KV contact ±8 KV contact ± 2 KV, ± 4 KV, ± 8 ± 2 KV, ± 4 KV, ± 8 KV, ±...
  • Page 54 NOTE 1 At 80 MHz and 800MHz, the higher frequency range is applicable. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. NOTE 3 UT is the AC mains voltage before applying the test level. Proximity fields from wireless RF communications equipment Test Band...
  • Page 55 11.3. LIST OF USED CABLES Cables Description Length Power Tripolar Power Cable 3x Gauge 2.50 mm², 250V AC, Male Plug 20A NBR 14136 2P + T, with female plug, INMETRO. The Equipment for Prophylaxis by Ultrasound / Bicarbonate Jet is intended to assist the health professional, and it is for exclusive dental use.
