Summary of Contents for Dabi Atlante eagle x-RAY

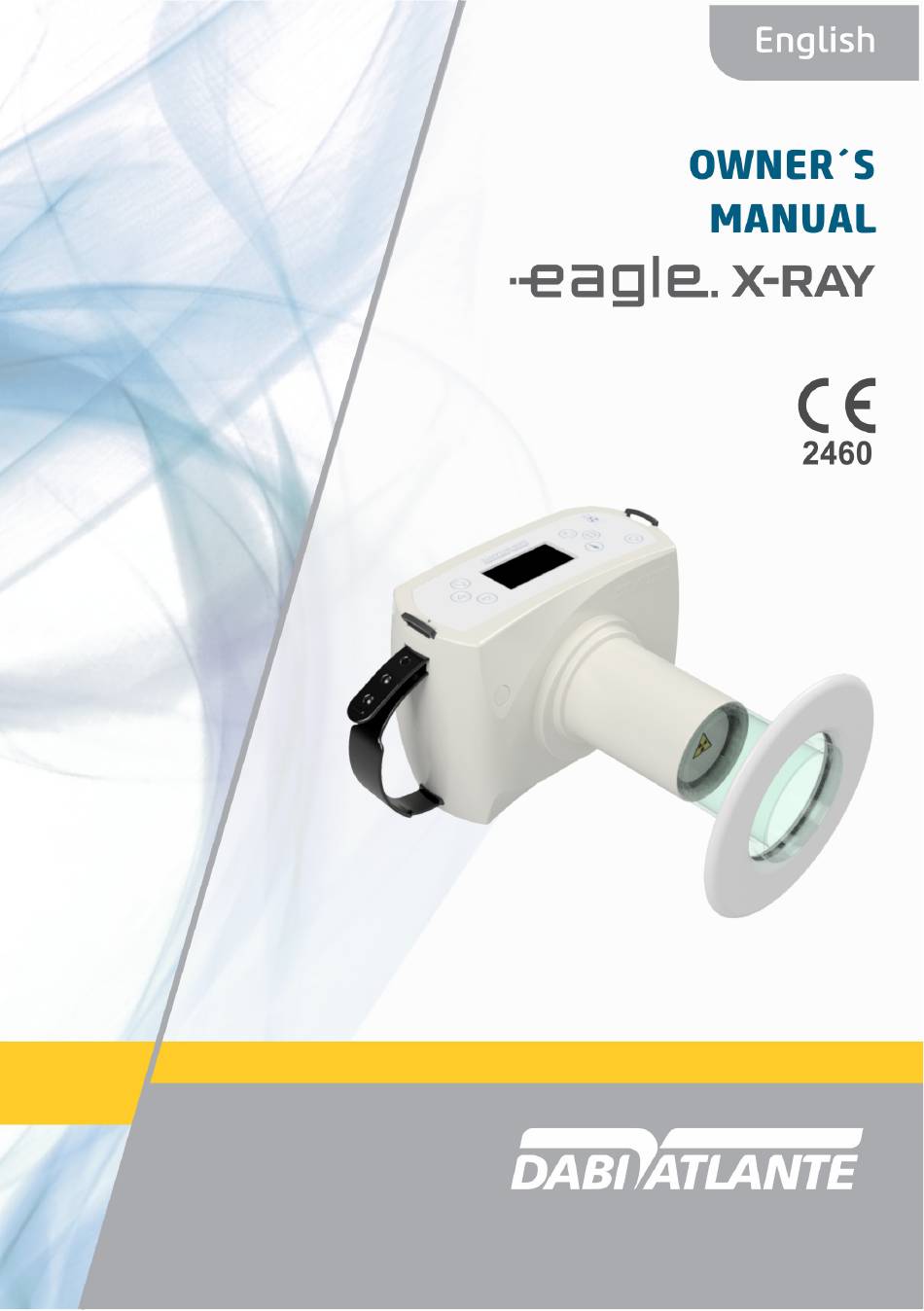

  • Page 2 GMDN: 44606 Hand-held intraoral dental x-ray system, digital Technical name: Dental X-ray Equipment Trade name: Portable Dental X-Ray Models: AXR60 S Brand: Eagle X-ray / Dabi Atlante Technical Responsible: Daniel R. de Camargo CREA-SP: 5062199650 ANVISA Registration nº: 10101130092 Alliage S/A Indústrias Médico Odontológica Rodovia Abrão Assed, Km 53 + 450m - CEP 14097-500...
  • Page 3 Eagle X-ray is a commercial trademark of Alliage S/A. Dabi Atlante is a commercial trademark of Alliage S/A. Copyright © 2019 Alliage S/A. All rights reserved.

  • Page 4: Table Of Contents

    SUMMARY 1. GENERAL INFORMATION............7 1.1.
  • Page 5 4.8. RECOMMENDATIONS FOR EXAMS........... 47 5.
  • Page 6 GENERAL INFORMATION Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 7: General Information

    1. GENERAL INFORMATION 1.1. DEAR CUSTOMER Congratulations on your excellent choice. By buying ALLIAGE quality equipment, rest assured you have bought technology products compatible with the best in its class. This manual offers you a general presentation of your equipment, describing important details that may guide you in its correct use, as well as in the solution of small problems that may eventually occur.

  • Page 8: Symbols

    1.4. SYMBOLS The following symbols are used throughout this manual and in the product itself. Make sure you fully understand each symbol and follow the accompanying instructions. Fragile, handle with care Maximum stacking Protect from rain Temperature limit This side up Protect from sunlight Authorized representative in the Model name...
  • Page 9 It indicates that the product should be taken to a special waste Class II collection site at the end of its useful life. It applies to both the device and accessories Presence or Potential presence of Ionizing Radiation/Physiological Focal Point Effect Focal Point Position General warning...
  • Page 10 Selection Patient profile Receiver Tooth profile Increases Decreases Trigger Emission of ionizing radiation Free configuration Error It indicates that the exposure time has been changed by the user Adult patient Child patient Digital sensor Analogue film...
  • Page 11 Phosphorous plate Occlusal Lower Molar / Lower Premolar Upper Molar / Upper Premolar Lower Incisor Upper Incisor Battery out of charge Battery with reduced charge Battery with medium charge Battery with full charge Decreasing temperature (cooling)
  • Page 12 WARNINGS, CAUTIONS AND RECOMMENDATIONS Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 13: Warnings, Cautions And Recommendations

    2. WARNINGS, CAUTIONS AND RECOMMENDATIONS General warnings Read and understand all instructions in these instructions for use before operating this equipment. Use only the equipment in perfect condition and protect yourself, patients and others from possible dangers. This equipment must be operated by personnel familiar with the necessary precautions to avoid excessive exposure to both primary and secondary radiation.
  • Page 14 During equipment handling • The equipment must not be subjected to excessive vibration or shock (including during transport and handling). • Use the equipment in a place where it will not be in contact with moisture, water, plants and animals. •...
  • Page 15 equipment together with other devices very sensitive to interference or with devices that create high electromagnetic disturbances. • This equipment is not recommended for the display of cartilage structures and soft tissue exposure. • Depending on local regulations, during exposure, the operator must position themselves at least 3 meters away from the X-ray unit, in order to reduce the amount of ionizing radiation absorbed, maintaining visual contact with the patient and the unit throughout the exposure.
  • Page 16 If the equipment is not to be used for long periods of time, it is recommended to charge the battery before use. After long periods of storage, it may be necessary to charge and discharge the batteries several times for maximum performance. DO NOT leave the battery charging for long periods when not in use.
  • Page 17 Prevention against cross-contamination Appropriate cleaning and disinfection measures should be taken to avoid cross- contamination between patients, users and others. • For each new patient, perform the cleaning and disinfection procedures according to the instructions contained in this manual. After using/operating the equipment •...
  • Page 18 Precautions in case of unusable equipment To avoid environmental contamination or improper use of the Portable Dental X-Ray equipment, when rendered unusable, it should be disposed of (according to current legislation) in an appropriate place, since the materials inside can contaminate the environment. For the European Economic Area (EEA), this product is subject to Directive 2012/19/EU as well as the corresponding national laws.
  • Page 19 SYSTEM OVERVIEW Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 20: System Overview

    3. SYSTEM OVERVIEW 3.1. PRODUCT DESCRIPTION The Portable Dental X-Ray is an X radiation controlled emissions generator system, i.e., once put into service, is intended to be moved from one location to another by a person, used together with appropriate capture devices to generate intraoral radiological images for dental assessment, diagnosis and treatment.

  • Page 21: User Profile

    3.2.3. User profile The Portable Dental X-Ray can be operated and handled by users of both sexes, with ability to read and understand images, symbols, icons, western Arabic characters (Arial font), alphanumeric characters, know how to distinguish intraoral part of the human body, not being able to present a degree of visual imperfection for reading and seeing and a medium degree of recent memory impairment, not being in a clear capacity to perform the activities and functions of the product in a correct way to the profession.

  • Page 22: Main Product Components

    3.3. MAIN PRODUCT COMPONENTS 01 - Positioning cone 02 - Scattered radiation shield 03 - Local exposure button 04 - Hand strap 05 - Interface display 06 - Control panel 07 - Neck strap 08 - Battery compartment 09 - Remote trigger compartment and battery charger connector...

  • Page 23: Sets And Accessories

    3.4. SETS AND ACCESSORIES All parts, accessories and options described in the user manual are for exclusive use. The use of any parts, accessories or materials not specified in this manual is the sole responsibility of the user. COMPONENTS ACCOMPANYING THE PRODUCT 01 - Power Cord 02 - Power Supply ACCESSORIES...

  • Page 24: Applied Parts

    3.5. APPLIED PARTS The following items may eventually come into contact with the patient during operation of the equipment and should, therefore, be treated as applied parts. Applied part Type of part Type of contact Contact duration Plastic positioning cone Skin <10s covers...

  • Page 25: Control Panel

    3.6.2. Control panel BUTTONS FUNCTION 01 Green LED Indicates that the equipment is ready to operate 02 Yellow LED Emission of ionizing radiation 03 Stand by Starts or disables the equipment Selects the type of image receiver that will be 04 Receiver used in the acquisition 05 Patient Profile...

  • Page 26: Remote Trigger

    3.6.3. Remote trigger BUTTONS / INDICATORS FUNCTION 01 Yellow LED Emission of ionizing radiation 02 Green LED Indicates that the equipment is ready to operate 03 Exposure button Trigger...

  • Page 27: Label Placement

    3.7 LABEL PLACEMENT The identification and warning labels are located at the bottom of the equipment.
  • Page 28 OPERATION Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 29: Operation

    4. OPERATION 4.1. INITIAL PREPARATION The equipment must be cleaned and disinfected before being used on a new patient, observing the instructions contained in this manual. Before starting to operate the equipment, place the security straps around your neck and through your right hand, holding the equipment with both hands.
  • Page 30 A QR Code will be displayed on the screen indicating that the equipment is being initialized. When the user scans the QR Code, they will be directed to the equipment manufacturer website. To switch off, perform the same procedure of pressing and holding the Standby button for 2 seconds.

  • Page 31: Exposure Time Selection

    4.2. EXPOSURE TIME SELECTION The equipment will indicate exposure time values according to the patient profile, X-rayed tooth and selected receiver. However, these values are only starting points to be replaced by more specific protocols developed by the user. The operator can manually adjust the exposure time values.

  • Page 32: Receiver Type Selection

    4.2.2. Receiver type selection To select the type of receiver, the operator must press the key Each time the key is pressed, the receiver field must alternate between Digital sensor, Analogue film and Phosphorous plate, thus allowing selection according to the operator's needs. 4.2.3.

  • Page 33: Automatic Pre-Selection Parameters

    4.2.4. Automatic pre-selection parameters The table below shows the exposure times for each patient type, tooth type and receiver type setting. Exposure time (s) Ty p e o f Digital Phos- Film Tooth Type patient Sensor phorous Plate UPPER INCISOR 0.12 0.16 0.30...

  • Page 34: Saving Exposure Time

    4.2.6. Saving exposure time Once the exposure time has been changed, the new value can be saved in the equipment's memory. To do this, simply press the Selection key . A confirmation screen will appear and ask you to confirm the entry saved. If you really want to save a new value, select the option “YES” using the increment and decrement keys and press the selection key...

  • Page 35: Positioning

    4.3. POSITIONING 4.3.1. Preparing the patient Ask the patient to remove any objects such as glasses, hearing aids, prostheses and personal jewellery, such as earrings, necklaces and hair pins, among others. Ask the patient to wear the protective apron over the body, especially paediatric patients, according to local legislation.

  • Page 36: Positioning The Patient

    4.3.2. Positioning the patient The proper positioning of the patient ensures better quality in the radiographic image, which is why the steps below should be followed. To X-ray the upper jaw, the Frankfurt plane should be horizontal. To X-ray the lower jaw, the occlusal must be horizontal. Position the cone in the exposure area you wish to X-ray.
  • Page 37 The Portable Dental X-Ray has a protective shield against scattered radiation. This shield protects the operator and third parties by creating a protection area against scattered radiation from the equipment due to a 0.35 mm lead equivalent shielding. The graphic representation below shows the protection area (green area) versus scattered radiation (red area).

  • Page 38: Radiographic Techniques

    If the equipment is moved away or not perpendicular, the protection area is reduced. When performing an X-ray exposure, the operator must stand behind the unit, in the safety area. 4.3.3. Radiographic techniques Paralleling Technique or Long-Cone Technique In this technique, the receiver is positioned parallel to the plane of the tooth axis with the assistance of a positioner and the focal point of the X-ray generator must be positioned approximately 40 cm away from the receiver.
  • Page 39 This technique generates X-rays with minimal distortion, showing the objects being X-rayed in their true anatomical relationship and size. Bisecting Technique or Short-Cone Technique In this technique, the receiver is positioned so that the central X-ray beam is perpendicular to an imaginary plane of the bisector of the angle formed between the long axis of the tooth and the sensor capture surface, according to Cieszynski's Rule of Isometry.
  • Page 40 INCLINATION ANGLE OF TOOTH REPRESENTATION THE X-RAY BEAM Maxillary incisor Directed downward at a 45°. Mandibular incisor Directed upward at a 25°. Maxillary canine Directed downward at a 45°. Mandibular canine Directed upward at a 20°. Maxillary molar and premolar Directed downward at a 30°.

  • Page 41: Exposure

    4.4. EXPOSURE Ask the patient to remain still during exposure. Before performing an exposure, make sure the battery has a charge indicator above 11 %. Maintain visual contact with the patient during exposure. If a problem occurs during exposure, immediately release the trigger to stop exposure. If the trigger button is released, the exposure will stop.

  • Page 42: Remote Trigger

    During exposure, a visible yellow LED and a continuous audible signal will indicate the presence of X-rays, in addition the message “EXPOSING” on the display. A beep of two long beeps will indicate the end of the emission. If the operator interrupts the exposure, the equipment will emit three short beeps. In the event of an interruption of exposure by the equipment, it will emit five short beeps.

  • Page 43: Shooting Interruption

    After selecting the desired exposure time, the visible green LED will light up indicating that the equipment is ready for operation. Press and hold the trigger. Trigger During exposure, a visible yellow LED and a continuous audible signal will indicate the presence of X-rays, in addition the message “EXPOSING”...

  • Page 44: Movement During Exposures

    4.4.4. Movement during exposures Like the emitters of a conventional intraoral X-ray system, the equipment can process a small amount of movement by the patient during real exposures. Always use both hands to hold the equipment during exposure and keep it stable. The degradation or blurring of an image does not result from movement of the Portable Dental X-Ray source.

  • Page 45: Settings Menu

    4.6. SETTINGS MENU The Portable Dental X-Ray contains a user menu where you can customize some options according to your preferences. To access the menu, the operator must press and hold the Selection key for approximately 2 seconds. After entering the user menu, the interface will appear as shown. To navigate between the menu options, use the increment and decrement keys.

  • Page 46: Charging The Battery

    4.7.2. Charging the battery Charging the battery outside and away from the patient. To start charging the battery, open the bottom side compartment of the equipment and connect the battery charger to the connector. Battery charger connector When connected to the battery charger, the message “CHARGING BATTERY” and the current battery charge level will automatically appear on the display.

  • Page 47: Battery Protection And Safety

    The user will not be able to perform any exposure when the charger is connected. If the battery is empty, it is recommended to keep the equipment charging for close to 2 hours to fully charge it. When battery charging is complete, remove the charger. 4.7.3.
  • Page 48 PATIENT'S AGE AND STAGE OF DENTAL DEVELOPMENT TYPE OF C h i l d w i t h C h i l d w i t h A d o l e s c e n t Adult, Too- Adult, MEDICAL primary den- transient den-...
  • Page 49 P a t i e n t ( N e w Clinical judgement regarding the Clinical judge- Usually, it is not suitable and Returning) need and type of radiographic ment regarding for monitoring growth and for monitoring images for assessment and/or mo- the need and development.
  • Page 50 Clinical situations in which X-rays may be preferential include, but are not limited to: A. History of positive findings 1. Anterior periodontal or endodontic treatment 2. History of pain or trauma 3. Family history of dental anomalies 4. Postoperative healing assessment 5.
  • Page 51 DOSE INFORMATION Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 52: Dose Information

    5. DOSE INFORMATION 5.1. DOSE CALCULATION For time values selected by the operator, the air kerma indications must be calculated using the following calculation. The radiation dose was measured using one of specific ionization chambers for such a method that meets the IEC 60580:2019 standard for the radiation quality of the product, mounted juxtaposed to the radiation emitter, dispensing with the use of a test object representative of an average patient.
  • Page 53 Based on the above equations, the table below was prepared with some dose values. Exposure time (s) Ke r m a i n t h e a i r DAP (mGy.cm (mGy) @20cm (Irradiation time (s)) 0.01 0.02 0.57 0.05 0.14 3.90 0.10...

  • Page 54: Radiation Leakage

    5.2. RADIATION LEAKAGE In the loading state, air kerma due to radiation leak from the equipment, at 1 m from the focal point, measured in an area of 100 cm2 of which no main linear dimension exceeds 20 cm, when operated under normal load conditions, does not exceed 0.05 mGy in one hour according to EN 60601-2-65.

  • Page 55: Diffusion Radiation

    5.3. DIFFUSION RADIATION The following exposure steps were established with a unit equipped with a cone corresponding to focus distance to the skin of 200 mm, respectively. Method The phantom skull was positioned 280 mm away from the focal point (with a position indication device), at maximum condition of exposure.
  • Page 56 SCATTERED RADIATION - VERTICAL PLANE Measuring unit: nGy Measuring device: Radcal Corporation Ionization Chamber Model 9010 - SN: 5001383 Voltage of the ampoule: 60 kV Anodic current of the ampoule: 2.5 mA Method: Elevation measurement at the level of the phantom skull in each position during the Exposure time: 1.0 s duration of exposure.
  • Page 57 CLEANING AND DISINFECTION Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 58: Cleaning And Disinfection

    6. Cleaning and Disinfection Before starting the cleaning and disinfection procedure, switch off the equipment and make sure it is not connected to the charger to avoid permanent damage. For your protection, during the equipment cleaning and disinfection procedure, use PPE such as disposable gloves and safety glasses.
  • Page 59 DIAGNOSIS OF PROBLEMS Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 60: Diagnosis Of Problems

    7. DIAGNOSIS OF PROBLEMS 7.1. ERROR MESSAGE Occasionally, malfunctions may occur during use. In the case of an error code between 0x100 and 0x899, these errors relate to a generator failure during the exposure process. Press the equipment selection button and return to operation. If the problem persists, write down the error displayed and contact the authorized technical service.
  • Page 61 DIAGNOSIS OF QUALITY Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 62: Quality Diagnosis

    8. DIAGNOSIS OF QUALITY This section will, occasionally, use the procedures described in the previous sections. Please refer to these sections when necessary. During use or after a repair, this quality control procedure will generate baseline performance data. Make a periodic assessment and compare against the baseline data. If degradation in image quality or a change in values is noticed, contact the Alliage Service Department.

  • Page 63: Dose Measurement

    8.1.3. Dose measurement For periodic dose measurement, use one of specific ionization chambers for such a method that meet the IEC 60580:2019 standard with an active area greater than 6 cm. Position the dosimeter at the tube outlet 200 mm from the focal point and perform an exposure for all configurable times and record radiation dose.
  • Page 64 INSPECTION AND MAINTENANCE Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 65: Inspection And Maintenance

    9. INSPECTION AND MAINTENANCE Maintenance or service procedures may only be performed by a technical service authorized by the manufacturer. All instructions regarding use of the equipment as intended are provided in this user manual. If any problems are detected and cannot be corrected with the instructions in the problem diagnosis section, contact the Alliage Service Department.

  • Page 66: Preventive Maintenance

    9.2. PREVENTIVE MAINTENANCE In addition to the annual inspection, to ensure a long service life and smooth operation of your equipment, it is important to carry out preventive maintenance over a maximum period of three (3) years. Contact the Alliage Service Department about our periodic review and preventive maintenance programme.
  • Page 67 WARRANTY Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 68: Warranty

    10. WARRANTY This equipment is covered by the warranty periods, terms and conditions contained in the Warranty Certificate that comes with the product.
  • Page 69 TECHNICAL SPECIFICATIONS Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 70: Technical Specifications And Characteristics

    11. TECHNICAL SPECIFICATIONS AND CHARACTERISTICS 11.1. EQUIPMENT CLASSIFICATION EQUIPMENT CLASSIFICATION Framework class according to ANVISA Class III Framework class according to CE Class IIb EQUIPMENT CLASSIFICATION OF ACCORDING TO EN 60601-1 STANDARD Product classification for applied parts Type B Electric Shock Protection Class II Internally Energized Electromedical Equipment Protection Against Harmful Water Penetration...

  • Page 71: Device Information

    11.2. DEVICE INFORMATION ITEM DESCRIPTION Supply voltage 22.2 Vd.c. Power consumption 500 VA Maximum grid impedance 0.1 Ω Net weight 2.4kg X-ray equipment for intraoral dental radiography model AXR60 S EN 60601-2-65:2013+A2:2021 11.3. ENVIRONMENTAL CONDITIONS ENVIRONMENTAL TRANSPORT AND STORAGE CONDITIONS Transport or storage ambient temperature -18ºC to +60ºC range...

  • Page 72: Battery

    LOAD PARAMETER ACCURACY Voltage ± 10 % Anodic current ± 20 % Irradiation Time ± 5 % + 50 ms A cc u ra c y o f ra d i a t i o n o u t p u t - B e a m <...

  • Page 73: X-Ray Generator

    11.6. X-RAY GENERATOR GENERAL INFORMATION Generator type Constant power high frequency generator Maximum operating voltage (Intensity) 60 kVp Heating and cooling curve Refer to pumphead cooling characteristics graph Maximum output power 150 W (60kV x 2.5mA) Total filtration > 2.05 mm Al eq. @ 60kVp Permanent filtration Glass: >...

  • Page 74: X-Ray Tube

    Characterization of X-radiation emitter-array COOLING RESFRIAMENTO HEATING AQUECIMENTO TIME [s] 11.7. X-RAY TUBE GENERAL INFORMATION Manufacturer CANON KAILONG Model E7695 KL11-0.4-70 Maximum operating voltage 70 kVp 70 kvp Focus size 0.4mm 0.4mm Anode angle 12.5º 12º Equivalent filtration 1.0 mm Al equiv. @ 70kV 0.8 mm Al equiv.
  • Page 75 EMISSION AND FILAMENT CHARACTERISTICS FILAMENT CURRENT [A] FILAMENT CURRENT [A] E7695 KL11-0.4-70 MAXIMUM LOAD CHARTS EXPOSURE TIME [s] EXPOSURE TIME [s] E7695 KL11-0.4-70...
  • Page 76 ANODE THERMAL CHARACTERISTICS COOLING COOLING HEATING TIME [s] TIME [s] E7695 KL11-0.4-70 X-ray ampoules are for the exclusive use with the Portable Dental X-Ray.
  • Page 77 BEAM LIMITER...

  • Page 78: Standards And Regulations

    11.8. STANDARDS AND REGULATIONS This equipment has been designed and manufactured to meet the following standards: EN 60601-1:2006+AMD2:2021 Medical Electrical Equipment - Part 1: General requirements for basic safety and essential performance. EN 60601-1-2:2015+AMD1:2021 Medical Electrical Equipment, Part 1-2: General requirements for basic safety and essential performance - Collateral Standard: Electromagnetic disturbances - Requirements and tests.
  • Page 79 Directive 2015/863 Commission delegated directive of 31 march 2015 Amending annex ii to directive 2011/65/EU of the European Parliament and of the council as regards the list of restricted substances directive. 2012/19/EU Directive Directive on waste electrical and electronic equipment. 80/181/ECC Directive Directive on the approximation of the laws of the Member States relating to units of measurement.
  • Page 80 ELECTROMAGNETIC COMPATIBILITY Alliage S/A Industrias Médico Odontológica Telefone: +55 (16) 3512-1212 Rodovia Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil...

  • Page 81: Electromagnetic Compatibility (Emc)

    12. ELECTROMAGNETIC COMPATIBILITY (EMC) The Portable Dental X-Ray is intended for use in the specified electromagnetic environment below. It is advisable that the buyer or user ensure that it is used in such an environment. The Portable Dental X-Ray is appropriate for use in a professional healthcare environment, not including areas where sensitive equipment or sources of intense electromagnetic disturbances are present, such as the room shielded against a system’s RF for magnetic resonance imaging, operating rooms near active AF surgical equipment, electrophysiology laboratories, shielded rooms or areas...

  • Page 82: Orientation And Declaration For Electromagnetic Immunity

    12.2. ORIENTATION AND DECLARATION FOR ELECTROMAGNETIC IMMUNITY PHENOMENON BASIC EMC STANDARD IMMUNITY TESTING COMPLIANCE LEVEL OR TEST METHOD LEVEL Electrostatic discharge IEC 61000-4-2 ± 8 KV contact ± 8 KV contact ± 2 KV, ± 4 KV, ± 8 KV, ±...
  • Page 83 PROXIMITY FIELDS FROM WIRELESS RF COMMUNICATIONS EQUIPMENT TEST BAND SERVICE MODULATION MAXIMUM DISTANCE IMMUNITY COMPLIAN- FREQUENCY (MHZ) POWER T E S T I N G CE LEVEL (MHZ) LEVEL (V/M) (V/M) TETRA 400 18 Hz Pulse 380-390 modulation GMRS 460,FRS deviation 430-470 of ±...
  • Page 84 LIST OF CABLES USED CABLES DESCRIPTION LENGTH Remote trigger Data cable, U/UTP, Category 5, AWG24 Battery charger PP Flat Flexible Cable 500 V 2X0.75 mm² 1.8 m cable The Portable Dental X-Ray is intended to obtain oral anatomy radiological images, including teeth, maxillofacial areas, oral and bone structures, for exclusive dental use.
