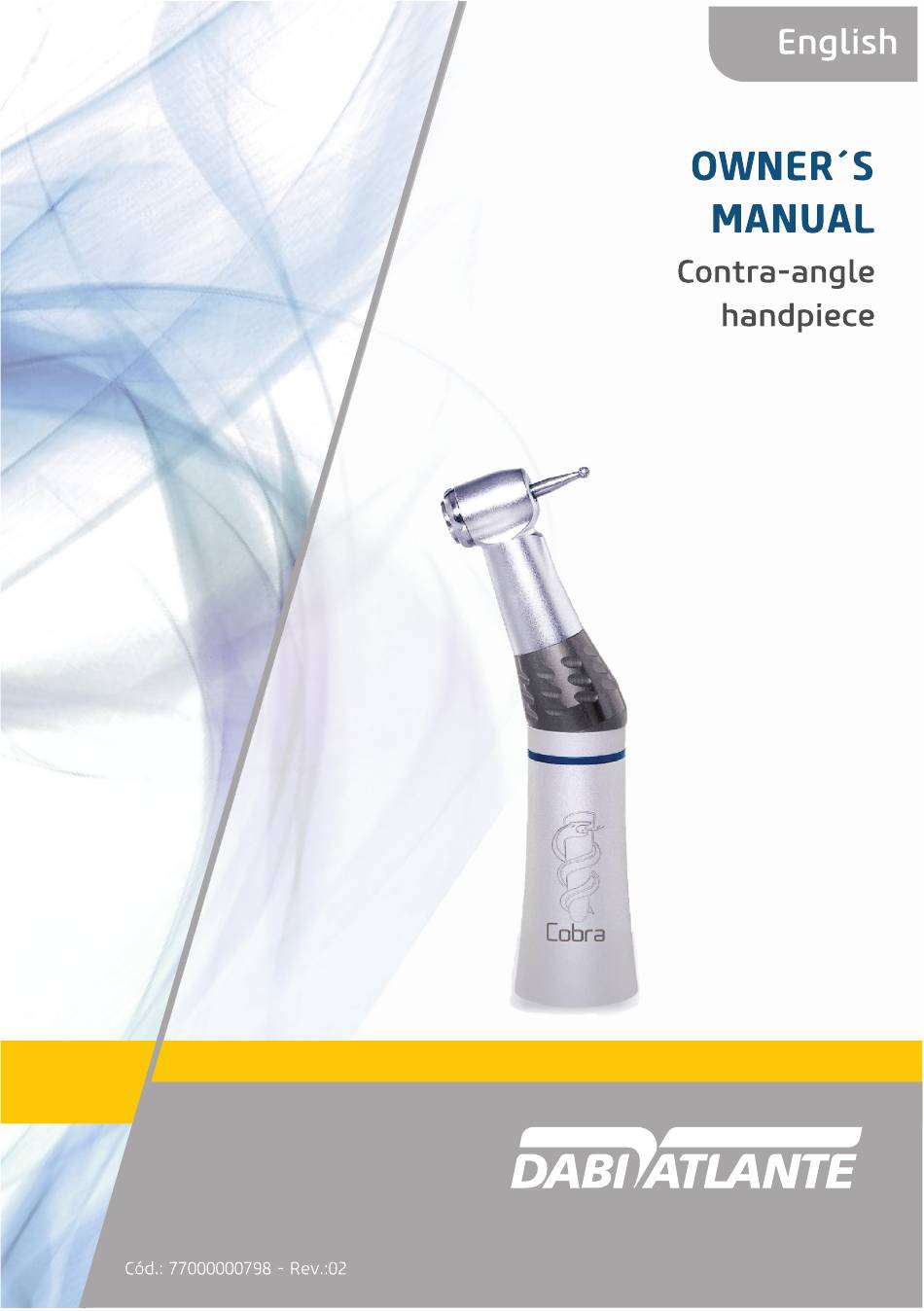

Dabi Atlante CONTRA ANGLE INTRA 32 CA Owner's Manual

Contra-angle handpiece
Hide thumbs Also See for CONTRA ANGLE INTRA 32 CA:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONTRA ANGLE INTRA 32 CA and is the answer not in the manual?

Questions and answers

Related Manuals for Dabi Atlante CONTRA ANGLE INTRA 32 CA

Summary of Contents for Dabi Atlante CONTRA ANGLE INTRA 32 CA

  • Page 2: Presentation Of Manual

    Trade Name: Dental Hand Instrument for Low Speed Models: • CONTRA ANGLE INTRA 32 CA • CONTRA ANGLE INTRA 32 CA PB • CONTRA ANGLE INTRA 32 CA PB SPRAY • CONTRA ANGLE INTRA SL 30 • CONTRA ANGLE INTRA SL 30 PB Brand: Dabi Atlante Manufacturer/ Distribuitor: Alliage S/A Indústrias Médico Odontológica...
  • Page 3 INDEX 02 PRESENTATION OF MANUAL 04 IDENTIFICATION OF EQUIPMENT 04 Indication of Use 04 Contraindication 05 DESCRIPTION OF EQUIPMENT 05 General description 05 Application specification 05 Operation principle 05 Significant physical characteristics 05 User profile 06 Models 07 Sets and Parts 08 TECHNICAL SPECIFICATIONS 08 General features 10 Dimensions...

  • Page 4: Identification Of Equipment

    IDENTIFICATION OF EQUIPMENT Dear Customer This manual is a general presentation of your product and it will give you important details to help you to solve possible problems. Please, read it and keep this with you. Indication of Use The Alliage handpieces are intended to remove caries, remove restorations and perform tooth sectioning, as an aid in extracting teeth, and they are for exclusive dental use, and must be handled by trained, qualified and regulated health professionals according to local legislation.

  • Page 5: Description Of Equipment

    DESCRIPTION OF EQUIPMENT General Description Compact handpiece, ergonomic design, body made of metal with surface treatment. Transmission system supported on high precision bearings, providing a low noise level, extremely high durability and work without loss of power. Coupling via the INTRA system and rotation of 360º. The Alliage handpieces have been planned to offer maximum performance in the most severe clinical procedures.
  • Page 6 Irrigation System (LT) Latch Type 01 - Contra Angle Intra 32 CA PB / Sl 30 PB (external spray) 02 - Contra Angle Intra 32 CA / Sl 30 (external spray) 03 - Contra Angle Intra 32 CA PB Spray (internal spray)
  • Page 7 DESCRIPTION OF EQUIPMENT Sets and Parts Attention - The use of any part, accessory or material not specified or foreseen in these instructions for use is entirely the user’s responsibility. 01 - Cooling kit (external spray adapter) 02 - Adapter for lubrication 03 - Lubricant Lubs Optional...

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS General features Transmission System Intra rotary Maximum rotation 13.600 r/min Bur fastening system (LT) Latch Type (PB) Push Button Bur type FG Standard Sterilization Autoclavable up to 135ºC Coupling type Type 2 Length X2 Long type - min. 32mm. Torque 0,350 - 1,000 N.cm.
  • Page 9 TECHNICAL SPECIFICATIONS Weights Model Net Weight Gross Weight 32 CA 115g 32 CA PB 114g 32 CA PB SPRAY 114g SL 30 115g SL 30 PB 114g...

  • Page 10: Dimensions (Mm)

    TECHNICAL SPECIFICATIONS Dimensions (mm) 32 CA / SL 30 Visibility angle: 8° - Projection with Type 4 test mandrel. 32 CA PB / 32 CA PB SPRAY / SL 30 PB Visibility angle: 9° - Projection with Type 4 test mandrel.

  • Page 11: Packing Symbols

    TECHNICAL SPECIFICATIONS Packing symbols Stacking limit by number Keep dry This side Up Keep out of sunlight Fragile, handle with care Temperature limitation Product symbols Sterilizable in a steam sterilizer (autoclave) at the specified Recyclable temperature Indicates that the product must be General warning taken to a special waste collection site at the end of its useful life.

  • Page 12: Operation Of Equipment

    OPERATION OF EQUIPMENT Warning Handpieces must be used at a height of up to 1 meter from the ground. Coupling to the micromotor Ensure that the connection of the instrument is compatible with that of the equipment. In order to couple it, press the instrument on the coupling of the micromotor until it is fastened (fig. a). To uncouple, by means of pressure, pull out the Handpiece.

  • Page 13: Precautions, Restrictions And Warnings

    OPERATION OF EQUIPMENT External cooling system fig. a fig. b Fit the cooling kit in the Contra-angle handpiece - fig. (a) e (b). In order to remove it, do the opposite. PRECAUTIONS, RESTRICTIONS AND WARNINGS Recommendations for preserving the equipment Your equipment has been designed and developed according to the standards of modern techology.
  • Page 14 PRECAUTIONS, RESTRICTIONS AND WARNINGS Attention The Equipment maintains its condition of safety and efficacy, provided that it is maintained (stored) as mentioned in this instruction of use. Thus, the equipment will not lose or alter its physical and dimensional features. Sensibility to predictable environmental conditions in regular use conditions - The equipment has been planned not to be sensitive to interference such as magnetic fields, external electrical factors, electrostatic discharge, pressure or variance of pressure, provided that...

  • Page 15: Precautions To Be Adopted Against Foreseeable Or Uncommon Risks, Related To The Deactivation And Abandoning Of Equipment

    PRECAUTIONS, RESTRICTIONS AND WARNINGS Precautions to be adopted against foreseeable or uncommon risks, related to the deactivation and abandoning of equipment In order to avoid environmental contamination or undue use of the Equipment after it has become useless, it should be discarded in the suitable place (as per the local legislation of the country). - Pay attention to the local legislation of the country for the conditions of installation and disposal of residue.

  • Page 16: Cleaning And Disinfection

    EQUIPMENT REUSE Additional procedures for reuse Warning Handpieces may only be serviced in the field at the points described in the user manual. If they need to be disassembled, they must be taken to the manufacturer. The equipment can be reused in undetermined, i.e. unlimited, quantities, only needing to be cleaned, disinfected and Sterilization.
  • Page 17 EQUIPMENT REUSE Spray lubrication To carry out the lubrication of your equipment, we recommend the use of the Lubs product. Lubrication must be carried out by the posterior hole of the counter angle. Insert the adapter into the hole as illustrated in fig. (a). Firmly fit the oil applicator nozzle into the adapter hole (b) and apply the spray for 1 or 2 seconds, by observing the lubrication into the instrument head.

  • Page 18: Inspection And Maintenance

    INSPECTION AND MAINTENANCE Periodic Inspection It is imperative that this equipment is regularly inspected to ensure operational safety and functional reliability. The manufacturer is exempt from responsibility that the standard results do not conform in cases where the user does not carry out the inspection recommended by the manufacturer. The inspection must be carried out, documented and maintained with the equipment by the user and is not part of the warranty of the same.

  • Page 19: Final Considerations

    INSPECTION AND MAINTENANCE Attention Upon coming across any problem in operation, follow the instructions below to check and repair the problem, and/or get in touch with your representative. Handpieces may be serviced in the field only at the points described below. If they need to be disassembled, they must be taken to the manufacturer.
