Novatek-electro RNPP-302M1 Operating Manual

Three phase multifunctional voltage monitoring relay

Advertisement

Quick Links

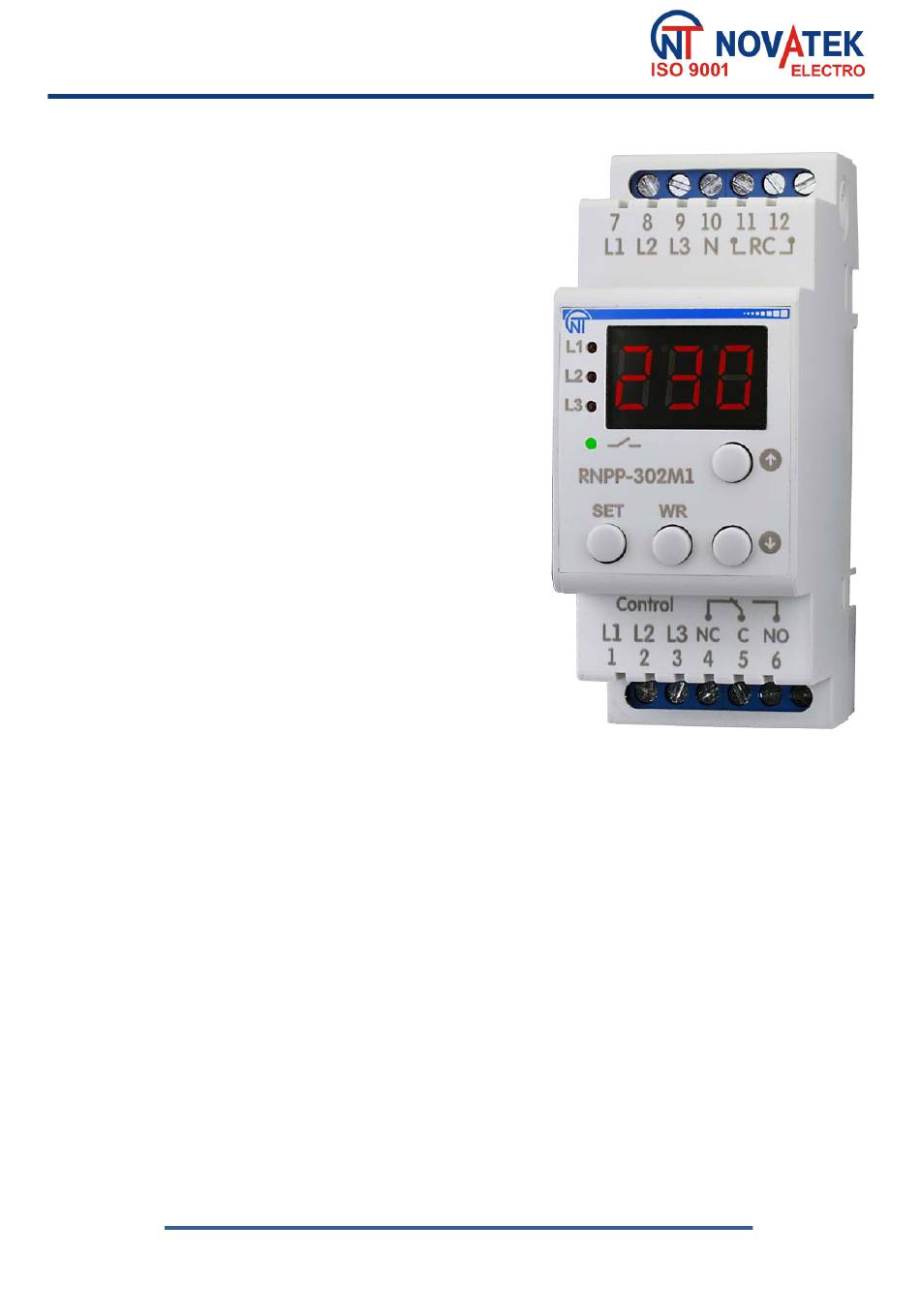

«NOVATEK-ELECTRO» Ltd
Intelligent industrial electronics
THREE PHASE
MULTIFUNCTIONAL
VOLTAGE MONITORING
RELAY
RNPP-302М1
Quality control system on the development and production complies with requirements
Company NOVATEK-ELECTRO LTD thanks you for purchasing our products.
You will be able to use properly the product after carefully studying the Operating Manual.
Keep the Operating Manual throughout the service life of the product.
Odessa, Ukraine
OPERATING MANUAL
ISO 9001:2015
Dear customer,
www.novatek-electro.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the RNPP-302M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Novatek-electro RNPP-302M1

  • Page 1 Quality control system on the development and production complies with requirements ISO 9001:2015 Dear customer, Company NOVATEK-ELECTRO LTD thanks you for purchasing our products. You will be able to use properly the product after carefully studying the Operating Manual. Keep the Operating Manual throughout the service life of the product.
  • Page 2 ATTENTION! The product is not intended for operation in the following conditions: – Significant vibration and shocks; – High humidity; – Aggressive environment with content in the air of acids, alkalis, etc., as well as severe contaminations (grease, oil, dust, etc.). RNPP-302М1 NOVATEK-ELECTRO...
  • Page 3 Housing material – self-extinguishing plastic Digital input (terminals 11-12) for remote switching on/off the load relay contacts Changeover relay output for the operation by the magnetic contactor to commutate any desired power load – 12 А, 250 V, cos φ=1 NOVATEK-ELECTRO RNPP-302М1...
  • Page 4 To improve operational properties of the unit it is recommended to install the fuse (fuse element), or the equivalent for current of 1A in power supply circuit (L1, L2, L3 fig.2) for RNPP-302M1. QF – circuit breaker 10 А.
  • Page 5 Turn OFF the device. Factory settings are restored. 4.4 To remotely control the load relay contacts, the corresponding parameters must be configured (Table 3 – RNPP-302M1 Operating modes).  parameter is the operating mode of the digital input setting.  parameter - digital input response time. The control is performed by closing / opening the Srms contact Fig.2.
  • Page 6 – if with switched off load relay RNPP-302M1 detects voltage on the magnetic starter output terminals (sticking of MS contacts), then by switching on the load relay again for 2 seconds and switching off RNPP-302M1 tries to open the contacts. Regardless of the result further operation of the load relay is blocked.
  • Page 7 0 – the reclosing time AR begins when the alarm signal Starting of the  comes; 1 – the reclosing time AR begins when reclosing time AR restoration of the mains voltage parameters The device version may be changed by the  Device version manufacturer NOVATEK-ELECTRO RNPP-302М1...
  • Page 8 The Company is grateful to you for the information about the quality of the unit and suggestions for its operation. ♦♦♦♦♦ For all questions, please contact the manufacturer: NOVATEK-ELECTRO Ltd, Date of sale: __________ 59, Admiral Lazarev Str., Odessa, 65007, Ukraine.
