«NOVATEK-ELECTRO» Ltd
Intelligent Industrial Electronics
MULTIFUNCTIONAL TIME
DELAY RELAY
REV-302
Quality control system on the development and production complies with requirements
NEVER ATTEMPT TO REMOVE AND REPAIR THE UNIT
NEVER ATTEMPT TO OPERATE THE UNIT WITH THE MECHANICAL DAMAGE OF THE
HOUSING
NEVER ATTEMPT TO OPERATE THE UNIT UNDER CONDITIONS OF HIGH HUMIDITY.
DO NOT LET WATER INTO THE UNIT
This unit is safe for use in case of compliance with operating rules.
UKRAINE, Odessa
OPERATING MANUAL
ISO 9001:2015
Review the Operating manual before using the unit
www.novatek-electro.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Novatek-electro REV-302
Summary of Contents for Novatek-electro REV-302

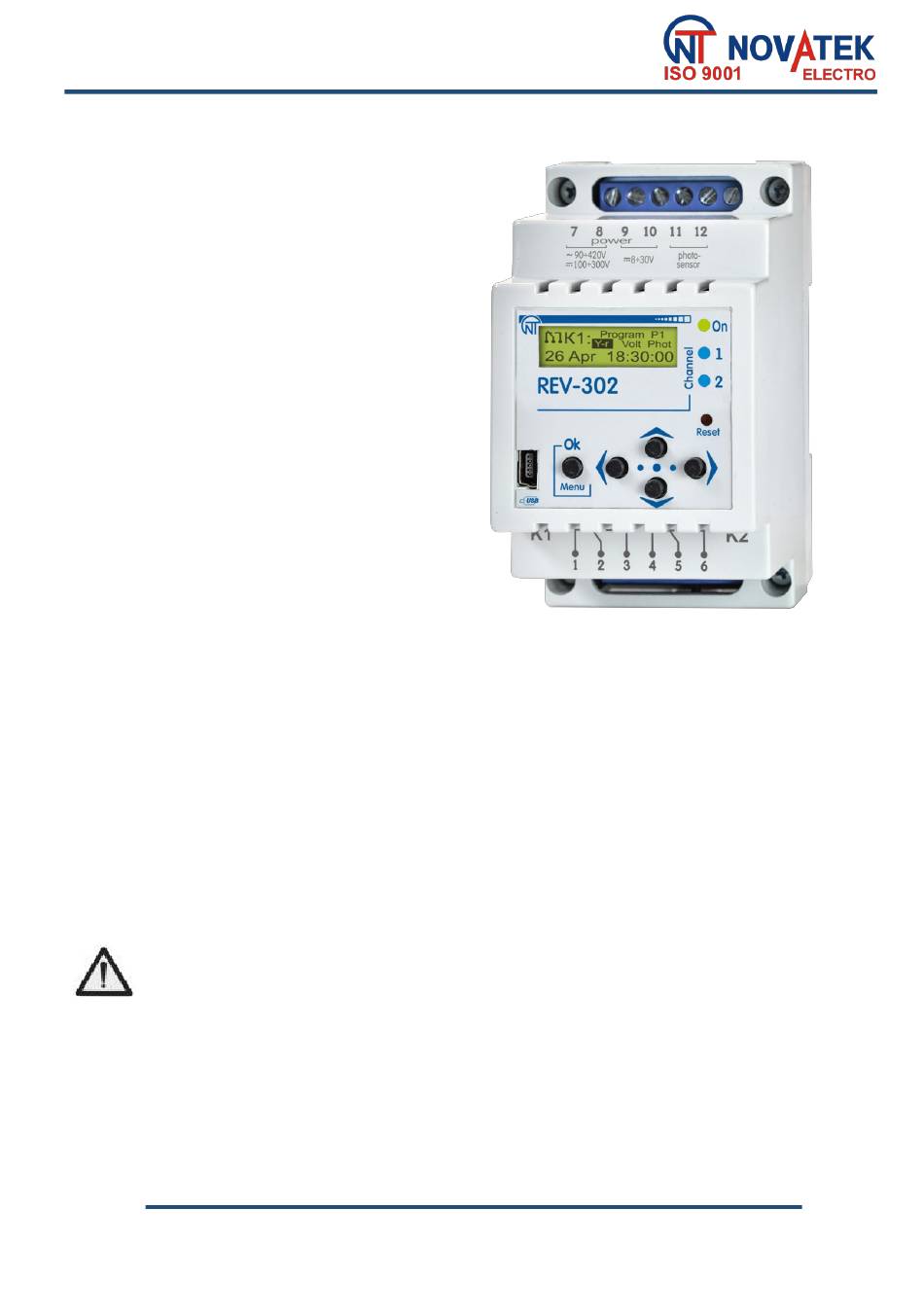

- Page 1 «NOVATEK-ELECTRO» Ltd Intelligent Industrial Electronics MULTIFUNCTIONAL TIME DELAY RELAY REV-302 OPERATING MANUAL Quality control system on the development and production complies with requirements ISO 9001:2015 Review the Operating manual before using the unit NEVER ATTEMPT TO REMOVE AND REPAIR THE UNIT...
- Page 2 - 2 - NOVATEK-ELECTRO REV-302...
- Page 3 REV-302 relay. 1 DESCRIPTION AND OPERATION The REV-302 multi-functional relay is a microprocessor-based programmable device designed to energize/de-energize one or two loads within user-set time intervals based on the circuit voltage and the external photo sensor luminance.
- Page 4 Mounting position: For fastest opening it is recommended to leave the parameter at «00 min 00 sec» value. REV-302 complies with requirements: EN 60947-1; EN 60947-6-2; EN 55011 ; EN 61000-4-2 No harmful substances in excess of the maximum permissible concentration is available.
- Page 5 1.3 STRUCTURE 1.3.1 Power supply sources REV-302 may be powered by a standard 240V/50Hz AC circuit (terminals 7-8) or by a 24V DC source (terminals 9-10). Only one power source can be connected at a time. In order to provide for the standalone clock operation in case of power voltage loss and to backup the programmed settings a 3 V lithium battery is utilized.
- Page 6 3, 4 – the photo sensor contacts (connected to terminals 11-12) Figure 1.2 - Photo sensor diagram and exterior Figure 1.3 shows the sensor connection to relay terminals Figure 1.3 - Photo sensor connection to REV-302 2 INTENDED USE 2.1 REV-302 PREPARATION FOR USE 2.1.1 Safety...
- Page 7 - 7 - When using PC to write and read-off settings, connect USB cable to REV-302. It is not necessary to observe polarity when connecting AC and DC power supply. Switch power ON and set required operation modes according to the following section.
- Page 8 ● Device reset – resets all settings, both of the device and control programs to default values. The reset does no change the password, the time settings and the event lists. ● Menu password – toggles on/off the menu entry password prompt ● New password – change current menu password. NOVATEK-ELECTRO REV-302...
- Page 9 2.3 USING REV-302 The REV-302 multifunctional relay has two channels: K1 and K2. Each of the Kx channels (where x is the channel number, 1 or 2) controls one electromagnetic relay with a group of switching terminals in accordance with one of the selected programs Px (where x is the program number: 1 to 8), the programs are configured separately or loaded from PC via USB port.
- Page 10 ● Contacts closed – time, for which the program-controlled channel contacts close after the preliminary delay (previous menu item) or the open contacts period (next menu item). ● Contacts open – time, for which the program-controlled channel contacts open after the closed contacts period (previous menu item). NOVATEK-ELECTRO REV-302...
- Page 11 Umin and Umax thresholds. ATTENTION! CONNECTION OF REV-302 TO THE COMPUTER BY MEANS OF CABLE USB, IN CERTAIN CASES, CAN BRING THE ADDITIONAL ERROR IN RESULTS OF VOLTAGE MEASUREMENT.
- Page 12 ● Mode – allows switching the photo relay on or off within the current control program; ● Illumination threshold – the level of illumination (lux), above or below which the contacts must be NOVATEK-ELECTRO REV-302...
- Page 13 The contacts close once only when illumination falls below L threshold at t (18:26) time instance, after which the contacts may be closed either by a time relay event or by illumination surpassing the Lthr threshold, which actually takes place at t (2:46). NOVATEK-ELECTRO REV-302...
- Page 14 Before sending for repair, the unit should be packed in the original or other packaging excluding mechanical damage. 6 TRANSPORTATION REV-302 should be stored in a factory package in enclosed rooms with ambient temperature from - 45° to +60° C and exposed to not more than 80% of relative humidity. NOVATEK-ELECTRO...
- Page 15 - 15 - 7 ACCEPTANCE CERTIFICATE REV-302 was produced and accepted in accordance with the requirements of effective technical documentation and was recognized as suitable for opreation. Quality control department seal Production date ___________________________ _______________ stamp 8 DATA ON CLAIMS Earnest request: indicate the reason for return in the notice of faults field at the return of the device or in case of submitting for warranty service or post-warranty service.
- Page 16 - 16 - APPENDIX A - REV-302 principal menu items structure Menu |–––––– Mode K1 |–––––– K1 mode ○OFF |–––––– ● Program P1 ……….. ○ Program P8 |–––––– Mode K2 |–––––– K2 mode ○ OFF |–––––– ● Program P1 ………..
- Page 17 1. 00:00:00 |–––––– Delete Delete ALL |–––––– 2. 00:10:00 |–––––– Delete Delete ALL ………….. |–––––– |–––––– Pulse relay |–––––– Time delay |–––––– 00min00s |–––––– Contacts |–––––– 00min01s |–––––– Contacts |–––––– 00min01s –––––Simple relay |–––––– Energize via |–––––– 00min00s NOVATEK-ELECTRO REV-302...
- Page 18 Yes / |–––––– Reset device |–––––– Yes / |–––––– Menu password |–––––– ON / |–––––– Change password |–––––– 0 0 0 | ––––– Information |–––––– Total number of events |–––––– 0 events of 5000 |–––––– Program version |–––––– v1.2 NOVATEK-ELECTRO REV-302...
- Page 19 - 19 - NOVATEK-ELECTRO REV-302...
- Page 20 - 20 - NOVATEK-ELECTRO REV-302...
