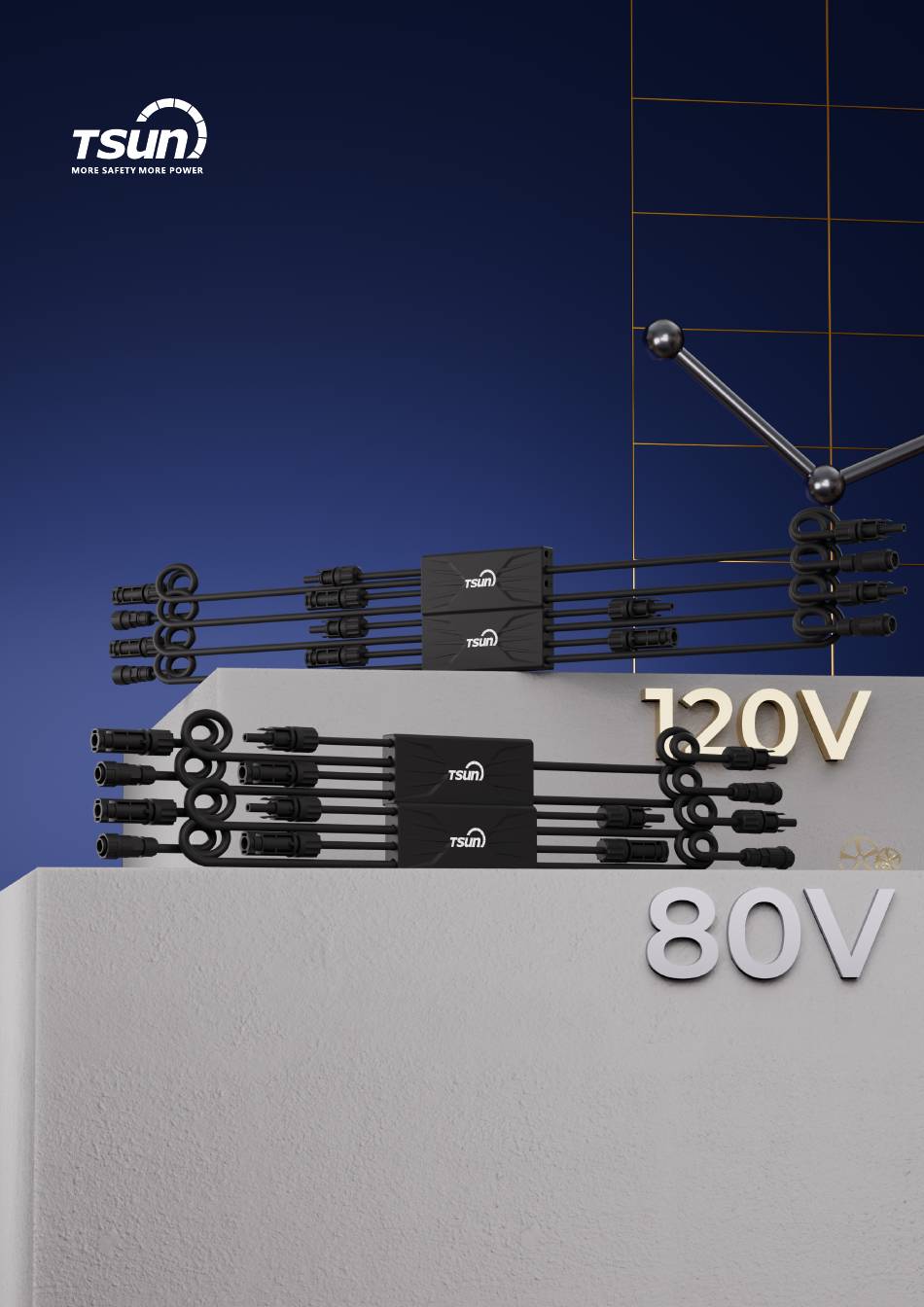

- Page 1 User Manual TSUN Module Level Rapid Shutdown(DC 24V) TSOL-PL80S-11/TSOL-PL80S-21 TSOL-PL120S-11/TSOL-PL120S-21 TSUNESS Co., Ltd sales@tsun-ess.com www.tsun-ess.com +86-512-66186028...
- Page 2 CONTENT User Manual of module level rapid shutdown www.tsun-ess.com...
- Page 3 Do not touch Read all documentations which accompanies with the product 2.2 Safety instruction Caution! 1)Only qualified people who can install and operate 2)Read all documentations which accompanies with the product 3)Must follow the National Wiring Rules and local standards related. www.tsun-ess.com...
- Page 4 1250mm+1250mm 1250mm+1250mm 2450mm+2450mm 1250mm+1250mm 1250mm+1250mm 1250mm+1250mm 24Vdc Control Cable NEC2017/2020 (690.12); UL1741; UL3741; IEC/EN62109; IEC/EN61000 Standard Compliance *Suitable for vertical photovoltaic modules *If the length of cable is not enough, extension cables of 0.6m,1.2m,1.8m and 2.4m can be used. www.tsun-ess.com...
- Page 5 Normal installation of TSOL -PL series will be 1/2/4 PV panels VS 1 RSD unit. Typical wiring example below: Connect the PV panel Positive (+) output connector to the RSD Positive (+) input connector. Connect the PV panel Negative (-) output connector to the RSD Negative (-) input connector. Control Box Grid 30 Units TSOL-PL80S-11 TSOL-PL80S-11 www.tsun-ess.com...
- Page 6 2)Meanwhile, temperature degradation and voltage drop should considered when selecting the DC power source. TSOL-PL 80/120S-11 type needs 0.8W minimum,TSOL-PL80/120S-21 type needs 1.5W minimum. The control voltage is 21.6V minimum. 3)In-line fuse should be used to protect the 24Vdc cable 4)24V cable size is 2*0.8mm² recommended www.tsun-ess.com...
- Page 7 Installation Precautions: 1)Make sure cable wiring correctly TSOL-PL80S-11 (Unit: ±0.5mm) TSOL-PL120S-11 PV1- OUT+ OUT- PV1+ 21.4 139.6 TSOL-PL80S-21 TSOL-PL120S-21 PV1- PV2- OUT+ OUT- PV2+ PV1+ 21.4 139.6 2)Make sure the MC4 connector of PV panel and RSD is the same brand or compatible 3)Make sure the installation environment is applicable www.tsun-ess.com...
- Page 8 2) Check the 24Vdc cable conencting well or not 3) Check if the installation temperature of power source is too high or not (< 50℃） 4) Check if the installation temperature of RSD is too high or not (< 80℃） TSUN TSOL TSUN TSUN TSUN TSUNESS Co., Ltd.
