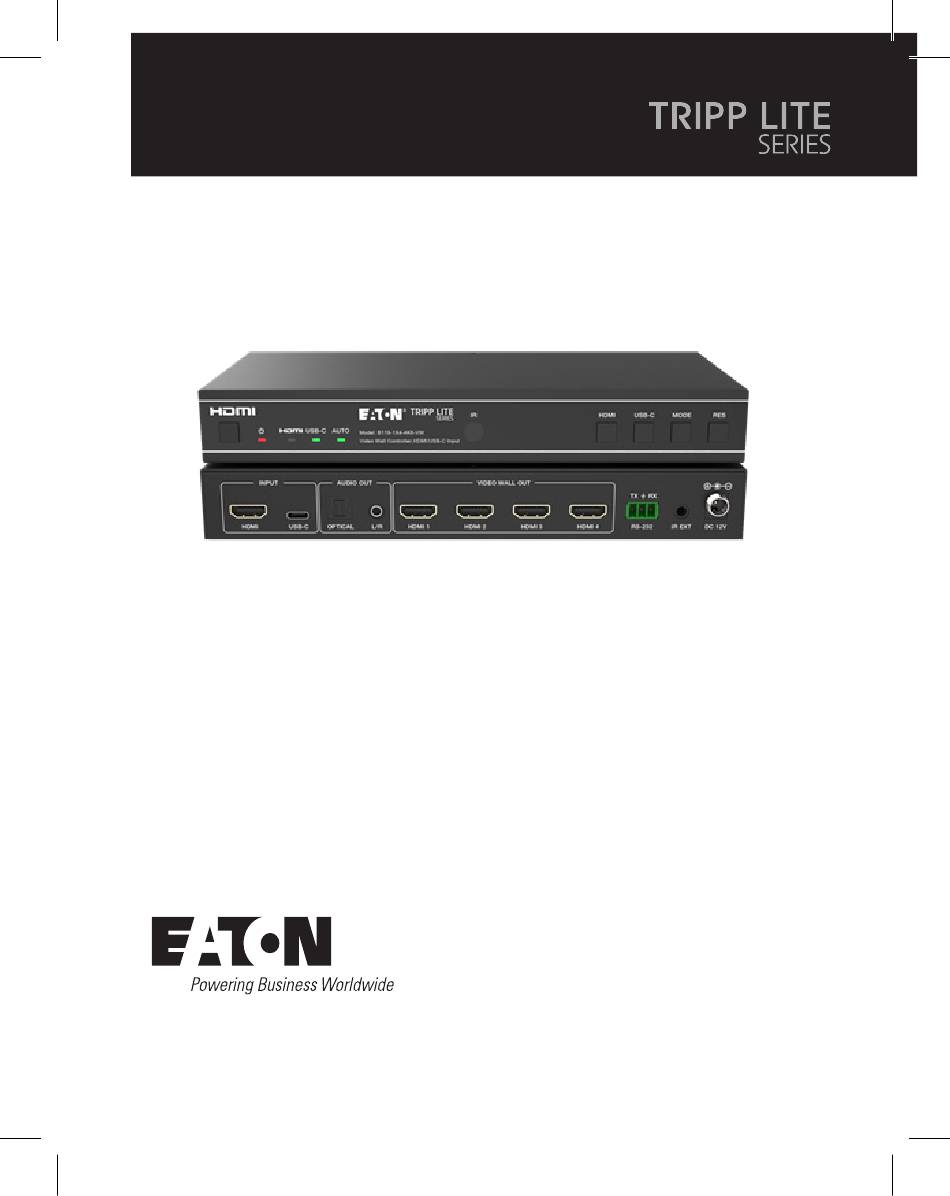

Owner's Manual
Video Wall Controller – 4K
60 Hz, HDMI/USB-C Input,
4x HDMI Output
Este manual está disponible en español en la página de Eaton:
Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de Eaton :
Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar:
Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di Eaton:
Tripplite.Eaton.com/support
Model:
B119-1X4-4K6-VM

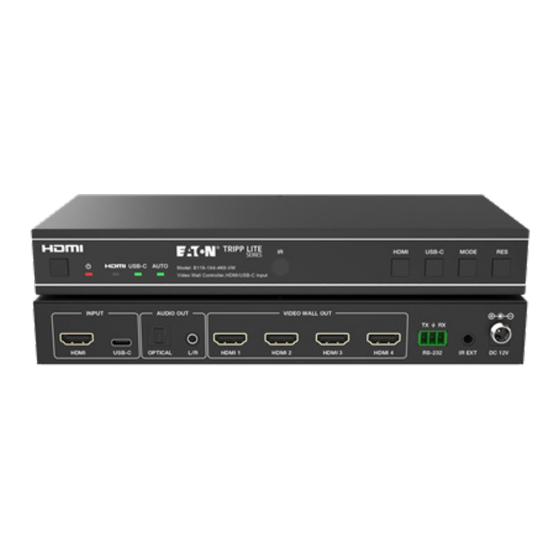

Purchased product may differ from image.
1
Advertisement
Related Manuals for Eaton TRIPP LITE B119-1X4-4K6-VM
Summary of Contents for Eaton TRIPP LITE B119-1X4-4K6-VM
- Page 1 Purchased product may differ from image. Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support...
- Page 2 Table of Contents Safety Instructions Introduction Product Features Package Contents Specifications Operation Controls and Functions IR Remote IR Cable Pin Assignment Video Wall 10. RS-232 Control Command 11. Application Example 12. Warranty...
- Page 3 1. Safety Instructions Thank you for purchasing the B119-1X4-4K6-VM. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge Protection Device Recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges and other power interruptions.
- Page 4 3. Product Features • Supports both HDMI and USB-C input with 4K @ 60 Hz resolutions and 4:4:4 color • Supports 8 video wall splicing modes: 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2 • HDCP 2.2 and DP 1.2a compliant •...
- Page 5 5. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18 Gbps Video Resolution Input: up to 4K @ 60 Hz 4:4:4 Output: 720p @ 60 Hz, 1080p @ 60 Hz, 4K @ 30 Hz, 1024x768p @ 60 Hz Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Depth...
- Page 6 5. Specifications Mechanical Housing Metal Color Black Dimensions (H x W x D) 1.2 x 8.7 x 3.9 in. / 30 x 220 x 100 mm Weight 1.3 lb. / 590 g Power Supply Input: AC 100–240V, 50/60 Hz Output: DC 12V 1A (US/EU Standard, CE/FCC/UL Certified) Power Consumption 5.5W (Max)
- Page 7 6. Operation Controls and Functions 6.1 Front Panel 1 1 2 2 4 4 3 3 5 5 Power Button: Press to power on the unit in shutdown/standby status. In power-on status, press for 2 to 3 seconds to enter standby status. Power LED: Lights green during normal operation.
- Page 8 6. Operation Controls and Functions 6.2 Rear Panel 1 1 2 2 3 3 4 4 HDMI Input: HDMI signal input port connects to an HDMI source device. USB-C Input: USB-C signal input port connects to a USB-C source device. Optical Audio Out: Connects to an optical audio output device, such as an audio amplifier.
- Page 9 7. IR Remote Power On or Standby: Press to power on the device or set it to standby mode. Mute: Press to turn off or on the audio output, including HDMI, optical and L/R audio. HDMI: Press to select HDMI input channel.
- Page 10 8. IR Cable Pin Assignment IR RECEIVER IR RECEIVER IR Signal Power Grounding 9. Video Wall Video wall supports eight splicing modes as below: You can set display modes via front-panel buttons, IR remote or RS-232 commands. Note: In video wall mode (except 1x1), only the screens that are selected to perform video wall splicing will display images, and their bezel can be adjusted.
- Page 11 10. RS-232 Control Command The Video Wall Controller supports RS-232 command control. Connect its RS-232 port to a PC with a 3-pin Phoenix connector cable and an RS-232-to-USB cable. The connection method is as follows. Then, open a Serial Command tool on PC to send ASCII command to control the device.
- Page 12 10. RS-232 Control Command Command Function Default Code Description Example Feedback Setting s power z! Power on/off the s power 1! power on device, z=0~1 system (z=0 power off, z=1 initializing... power on) initialization finished! mcu fw version: x.xx.xx r power! Get current power r power! power on /...
- Page 13 10. RS-232 Control Command Command Function Default Code Description Example Feedback Setting Input Setting s input x Set input x edid s input 1 input 1 edid: 4k60,2.0ch edid z! mode (x=0~2, edid 1! 4k60, 2.0ch z=1~6) x=0. all input x=1. input1 x=2.
- Page 14 10. RS-232 Control Command Command Function Default Code Description Example Feedback Setting s tw h Set tv wall s tw h bezel -! tv wall tv wall bezel -! horizontal bezel horizontal horizontal bezel: (bezel-1) bezel: 0 s tw h bezel Set tv wall s tw h bezel 0! tv wall...
- Page 15 10. RS-232 Control Command Command Function Default Code Description Example Feedback Setting r output y Get output y mirror r output 0 output1: rotation! status (y=0~4) y=0. rotation! 0° rotation output all y=1. output2: output 1 0° rotation y=2. output 2 output3: y=3.
- Page 16 11. Application Example Laptop IR Receiver Speakers Amplifier Power Supply Media Server or Laptop Display 1 Display 3 Blu-ray (with Player USB-C port) Display 2 Display 4...
- Page 17 • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Eaton could void the user’s authority to operate this equipment. Eaton has a policy of continuous improvement. Specifications are subject to change without...
- Page 20 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com © 2024 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 24-08-099 / 93-4AF8_RevA All trademarks are property September 2024 of their respective owners.
