Forest garden SDA810DD Assembly Instructions

8' x 10'
Shiplap Workshop
IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ
CAREFULLY
This building is pre-treated with a factory base coat for
protection during storage and transit. We recommend that
you treat your new building as soon as possible after
assembly using a wood preservative treatment. Apply in
accordance with the manufacturers instructions.
- This product must be built on a solid level base.
- The roof of this building is not a load bearing structure.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Due to the nature of the material the doors may need some
trimming for a neater fit.
- Please keep all plastic bags and small parts away from
children
0333 7777 089
Technical Helpline: 8.30 am and 5.00
pm Monday to Friday.
Please check all parts prior to assembly
Assembly of damaged parts may be deemed to be
acceptance and this may affect the remedies you are entitled
to.
If the product is not constructed in accordance with the
instructions, or is altered in any way (e.g. painted), the
manufacturer cannot be held liable for any resulting damage.
Fixing Pack (OPA812DDFP) Not to Scale
This fixing pack is used for several products.
There may be additional fixings.
Turn Button
Qty 3
Flush Hinge
Qty 4
Z' bracket
10mm Felt tacks
Qty 16
Qty 110
REQUIRED TOOLS :
(NOT SUPPLIED)
SHARP KNIFE
TAPE MEASURE SCISSORS
POZI DRIVE
FLAT HEAD
SCREWDRIVER
SCREWDRIVER LADDER HAMMER
Important : Assembly of
this shed requires a
Must Pre-drill for
minimum of two adults.
each screw used.

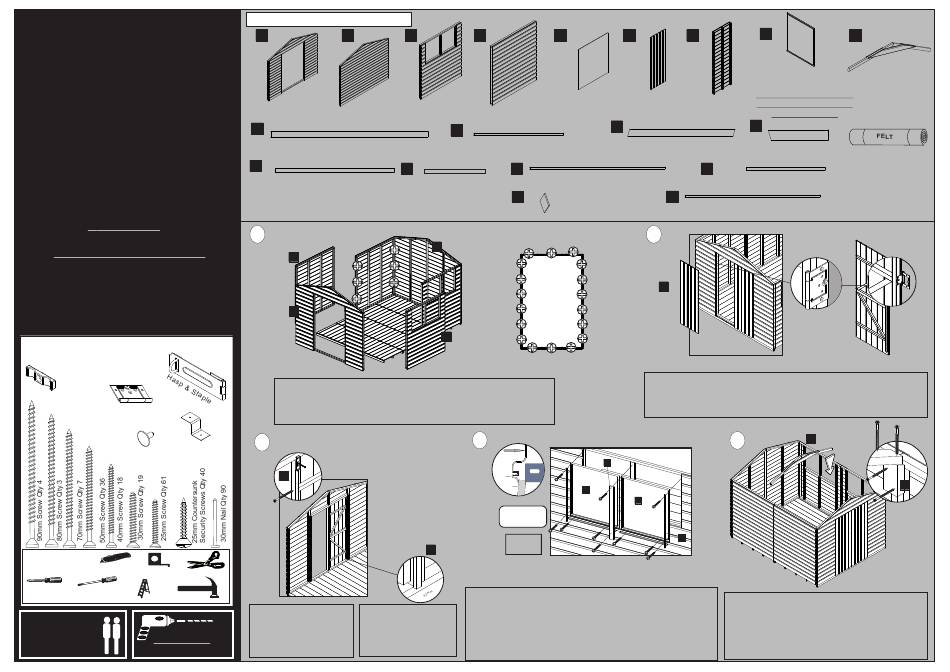

SDA810DD PARTS LIST
A B C
SDA8DE
SDA8PE SDA810WS
DOOR END
PLAIN END WINDOW PANEL
QTY 2
H J
59121710PDT
1710mm CORNER STRIP QTY 6
N
O
28120675PARDTR
45281462
675mmm STRIP QTY 2
1462mm BATTEN QTY 8
1
D
A
Place the four floor sections together and position the panels on top of the completed floor. Make
sure that all the panels are tight and flush before fixing them to each other using 3x50mm screws.
When the panels are secured to each other, make sure they are flush and fix to the floor using
3x50mm screws for each panel. Make sure that the screws locate into the bearers underneath.
3
J P
S
Fix the 1630mm batten against the end Place the 1695mm strip against the
of the door using 3x70mm screws. Make
inside of the door end so that the
sure it is flush with the door end batten is covering the gap between
framework. the door end and the door. Fix this in
place using 3x30mm nails.
Fix a turn button to the top and bottom of
the batten using 1x30mm (zinc) screw
Repeat for the opposite side of the
for each. door way.
D E
154013408
SDA810PS
ROOF SHEET
PLAIN PANEL
QTY 4
QTY 2
L
K
45281540
1540mmm BATTEN QTY 4
P
45451630DT
1630mm BATTEN QTY 1
R
FIN20010512DTR
FINIAL QTY 2
Top View
B
Floor
C
6
Inside
Window
of Shed
O
Outside
of Shed
Cill
Board
H
Attention:
Take care when
placing the
You may
need to cut
the plastic
1. Place the window(s) from the outside of shed, into window opening(s), so
that the bubble faces inside the shed. Lip at bottom of window must overlap
board at bottom of window opening.
2. Place the plastic strips on the outer side and bottom of each window so
that one side butts up against the cladding.
3. Fix the plastic strips using 2 x security screws for each strip.
4. Place the 675mm timber strip vertically between the two window sheets so
that it overlaps both sides. Fix to the framework using 2 x security screws.
H
F G
PCWIN1
WINDOW QTY 4
The windows are packed
DDRDT WS10X8BRDFLV2
together tightly, separate
DOOR QTY 2 FLOOR
before assembly.
QTY 4
M
90121375PAII74DT
60360200A1
1375mm BARGE BOARD QTY 4
TRUSS SUPPORT QTY 2
Q
84996
675mmm PLASTIC STRIP QTY 8
S
32161695DTR
1695mm STRIP QTY 2
2
F
Place the hinge against the inside of the door frame and position the large section of the hinge so
that it is flush with the inside of the framing as shown and fix with 25mm screws.
Open the hinge and fix the smaller section to the door framing. Again make sure that the hinge is
flush and that the holes are positioned so that the 25mm screws locate correctly into the batten.
5
H
P
Place and secure each angled block using 2 x 70mm screws. Make
sure these are 1470mm from the floor level and are tight against the
framework.
Place the truss so that is sits on the angled blocks. Secure this in
place by screwing down through the truss into the blocks using 2 x
90mm screws for each end.
I
OPA8TRUSS
TRUSS
85008 QTY 3
I
M
Issue 0318
