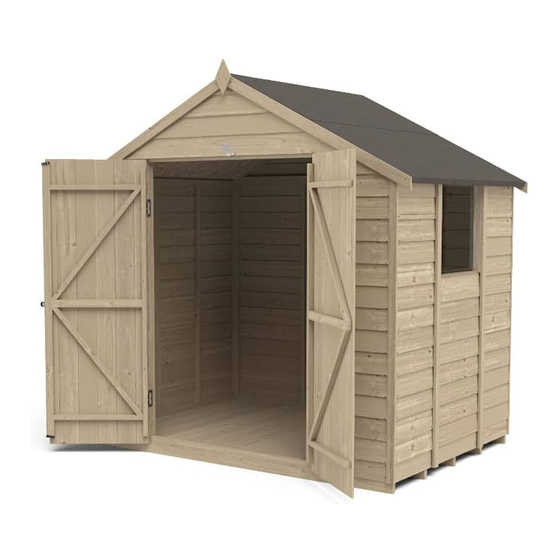

Forest garden Overlap Apex Shed 7' x 5' Assembly Instructions

Overlap Apex Shed
7' x 5'
IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ
CAREFULLY
This buildings is pressure treated to ensure longevity of all
timber components and to protect against rot. This may leave
a colour difference on some parts that will even out as the
moisture content stabilises. This will not need additional
treatment.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Due to the nature of the material the doors may need some
trimming for a neater fit.
- Please keep all plastic bags and small parts away from
children
- The roof of this building is not a load bearing structure.
- This product must be built on a solid level base.
0333 7777 089
Technical Help line: 8.30 am and 5.00
pm Monday to Friday.
Please check all parts prior to assembly
Assembly of damaged parts may be deemed to be
acceptance and this may affect the remedies you are entitled
to. If the product is not constructed in accordance with the
instructions, or is altered in anyway (e.g. painted), the
manufacturer cannot be held liable for any resulting damage.
Not to Scale
Fixing Pack (OPA75DDFP)
This fixing pack is used for several products.
There may be additional fixings.
Flush Hinge
Turn Button
Qty 3
REQUIRED TOOLS :
(NOT SUPPLIED)
SHARP KNIFE
SCISSORS
POZI DRIVE FLAT HEAD
TAPE MEASURE HAMMER
SCREWDRIVER SCREWDRIVER
Important :
Assembly of this
shed requires a
Must Pre drill for
minimum of two
each screw used.
adults.
OPA75DD PARTS LIST
A B
OPA7PE
OPA7DDE
PLAIN END
DOOR END
H J
45281630PT
1630mm BATTEN QTY 1
N
84996
675mm PLASTIC STRIP QTY 3
1 1
A B
A C
D
E
Place the panels on top of the floor. Make sure that all the panels are tight and
flush before fixing them to each other using 3x50mm screws.
Make sure that the panels are sitting flush before fixing them to the floor using
50mm screws making sure that all of the screws are positioned so that they
locate into the bearers underneath.
Qty 4
3x50mm screws for the end panels.
2x50mm screws for the side panels.
3
J
Place the 1630mm batten against the inside of the door so that it is tight against
the battens on the reverse and leaves a small gap at the top and bottom. Fix the
batten in place with 4 x 30mm Nails hammering through the door into the batten.
(make sure the batten is supported from the other side when fixing)
Fix a turn button to the top and bottom of the batten so that the door will be held
closed when fixed. Use a 30mm screw for each turn button.
C D E
OPA5PS OPA5WS BRDFL57
PLAIN SIDE WINDOW SIDE FLOOR
K
59121273PAII62PT
1273mm BARGE BOARD QTY 4
O
37281352PT
1352mm BATTEN QTY 4
Top View
C
A A
A
B
A D
Place and fix a turn button above the
opening door. Make sure that the button is
fixed to the door end and will hold the top of
the door shut.
F G
DDRPT 143612358
DOOR ROOF SHEET
QTY 2 QTY 2
L
44161570PT
1570mm C/STRIP QTY 4
2
A
F
Place the hinge against the inside of the door frame and position the large section of the hinge so
that it is flush with the inside of the framing as shown and fix with 25mm screws.
Open the hinge and fix the smaller section to the door framing. Again make sure that the hinge is
flush and that the holes are positioned so that the 25mm screws locate correctly into the batten.
4
J L
Place the corner strips so that they cover the joins
between the panels. Fix each in place using 3 x 30mm
screws
H I
FIN20010512PT
FINIAL QTY 1
PCWIN1
FELT78BL
GLAZING
QTY 1
M
37281436PT
1436mm BATTEN QTY 2
Issue 0217
