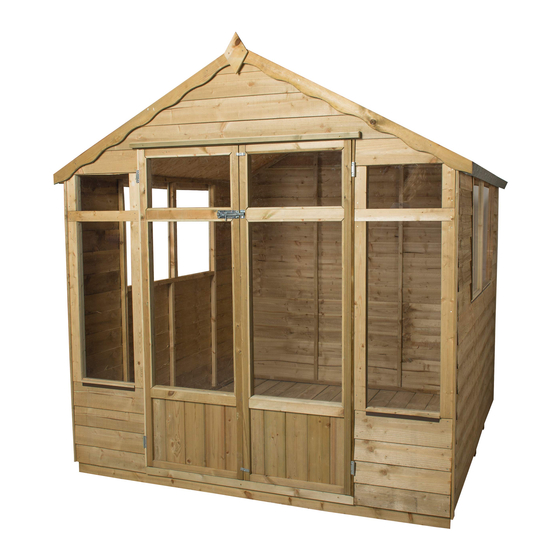

Bloxham 7' x 5' Summer
IMPORTANT, RETAIN FOR FUTURE REFERENCE.
-READ CAREFULLY
Check all parts prior to assembly.
This buildings is pressure treated to ensure longevity of all timber
components and to protect against rot. This may leave a colour
difference on some parts that will even out as the moisture content
stabilises. This will not need additional treatment.
- Timber is a natural material. It will shrink and swell as a result of
varying moisture content.
- Please keep all plastic bags and small parts away from children
- This product must be built on a solid level base.
- The roof of this building is not a load bearing structure.
0333 7777 089
Technical Help line:
Friday.
In line with your statutory rights, please check all parts prior to
assembly, as assembly of damaged parts may be deemed to be
acceptance and this may affect the remedies you are entitled to. If the
product is not constructed in accordance with the instructions, or is
altered in any way (e.g. painted), the manufacturer cannot be held liable
for any resulting damage.
Fixing Pack (SUM75FP)
Barrel Bolt Qty 2
(supplied with own fixings)
Turn Button
Tower Bolt Qty 1
Qty 3
(supplied with 6 x 20mm screws)
REQUIRED TOOLS :
(NOT SUPPLIED)

PARTS LIST

A
8.30 am to 5.00 pm Monday to
F
Not to Scale
K
L
Hinge
M
Qty 4
N
O
L' bracket
Qty 2
28120274PAII45PT 274mm Beading Qty 4
X
Forest Garden Ltd. Unit 288 Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
SHARP KNIFE
FOR ROOFING FELT
POZI DRIVE SCREWDRIVER
SPIRIT LEVEL
B
SASUM75PEPT
SASUM75PSPT
Plain End Qty 1
Side Panel Qty 2
G
169011708
Xt1238355
OSB Roof Qty 2
1238mm Glaze Qty 2
28281238PT
28x28x1238mm Batten Qty 4
28281968PPT
28x28x1968mm Batten Qty 1
40120747PPT
40x12x747mm Strip Qty 2
28281690PPT
28x28x1690mm Batten Qty 2
50121667PPT
50x12x1667mm Strip Qty 2
W
28120489PAII45PT
489mm Beading Qty 8
MUST PRE DRILL
TAPE MEASURE
HAMMER
C
D
SASUM75DEPT
Door Panel Qty 1
H
I
XT872487
Xt487272
872mm Glaze Qty 2
487mm Glaze Qty 2
P
45281508PPT
45x28x1508mm Qty 1
Q
45121650PPT
45x12x1650mm Strip Qty 2
R
40151710PT
40x12x1710mm Corner Strip Qty 4
S
40121196PPT
40x12x1196mm Strip Qty 1
T
28281129PPT
28x28x1129mm batten Qty 2
Y
28120874PAII45PT
Z
28120302PPT
28x12x302mm Beading Qty 2
Important :
Assembly of this
building requires
a minimum of two
adults.
E
SUM75FL
SDR555X1645PT
Floor Qty 1
Door Qty 2
J
80121165PT
Barge Board Qty 4
85014
QTY 1
U
40120358PNPT
40x12x358mm
Strip Qty 2
V
FIN20010512PT
Finial Qty 2
84mm Beading Qty 4
A1
15120302PT
302mm Beading Qty 2
