Forest garden SDA68ON Assembly Instruction

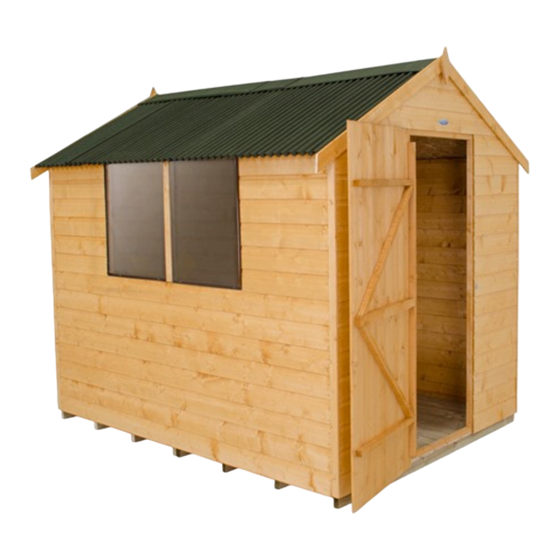

8' x 6' Shiplap Apex Shed
IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ
CAREFULLY
This building is pre-treated with a factory base coat for
protection during storage and transit. We recommend that
you treat your new building as soon as possible after
assembly using a wood preservative treatment. Apply in
accordance with the manufacturers instructions.
- This product must be built on a solid level base.
- The roof of this building is not a load bearing structure.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Due to the nature of the material the doors may need some
trimming for a neater fit.
- Please keep all plastic bags and small parts away from
children
0333 7777 089
Technical Helpline: 8.30 am and 5.00
pm Monday to Friday.
Please check all parts prior to assembly
Assembly of damaged parts may be deemed to be
acceptance and this may affect the remedies you are entitled
to.
If the product is not constructed in accordance with the
instructions, or is altered in any way (e.g. painted), the
manufacturer cannot be held liable for any resulting damage.
Fixing Pack (OPA68ONFP)
Not to Scale
This fixing pack is used for several products.
There may be additional fixings.
Hats Qty 40
Hasp &
Flush Hinge
Staple
Qty 2
Z' bracket Qty 8
REQUIRED TOOLS :
(NOT SUPPLIED)
SHARP KNIFE
SCISSORS
POZI DRIVE FLAT HEAD
TAPE MEASURE HAMMER
SCREWDRIVER SCREWDRIVER
Important :
Assembly of this
shed requires a
minimum of two
MUST PRE-DRILL
adults.
SDA68ON PARTS LIST
A B C
SDA8WS
SDA6DE SDA6PE
WINDOW PANEL
DOOR END PLAIN END
J
45452275P
2275mm BATTEN QTY 4
N
O
40121570PARDTR
1570mm CORNER STRIP QTY 4
1
E
Fix both of the floors together using 2x50mm
screws screwing through the floor bearers as
shown.
A
4
F
Place the hinge against the inside of the door frame and position the large section
of the hinge so that it is flush with the inside of the framing as shown. Fix with
25mm screws.
Open the hinge and fix the smaller section to the door framing. Again make sure
that the hinge is flush and that the holes are positioned so that the 25mm screws
locate correctly into the batten.
D E F
SDA8PS BRDFL46
PLAIN PANEL FLOOR QTY 2 DOOR QTY 1
K
L
75121110PAII62DT
675mm PLASTIC STRIP QTY 4
1110mm ANGLED BARGE BOARD QTY 4
P
20121695PDT
20 x 1695mm STRIP QTY 1
D
2
B
C
A
Place the panels on top of the completed floor. Make sure that all the panels are
tight and flush before fixing them to each other using 3x50mm screws.
When the panels are secured to each other, make sure they are square and fix
them to the floor using 3x50mm screws for each panel. Make sure the screws are
positioned so that they locate into the bearers underneath.
G H
ORS1X520
SDRDT ORS1X14
ROOF SHEET
ROOF SHEET
QTY 2
QTY 4
84996
Q
45120675PARDTR FIN20010512DTR
675mm STRIP QTY 1 FINIAL QTY 1
Top View
3
C D
Fix the 20 x 1695mm strip to the side
of the door frame so that it is tight
with the cladding and flush with the
frame. Use 3 x 30mm screws.
5
M N
Place the corner strips so that they cover the joins between
the panels. Fix each in place using 3x30mm screws.
I
VG1000
VERGE (apex)
QTY 3
M
RPET700
WINDOW QTY 2
The windows are packed
together tightly, separate
before assembly.
O
Issue 0218
