1. ANALYSER LAYOUT AND FEATURES

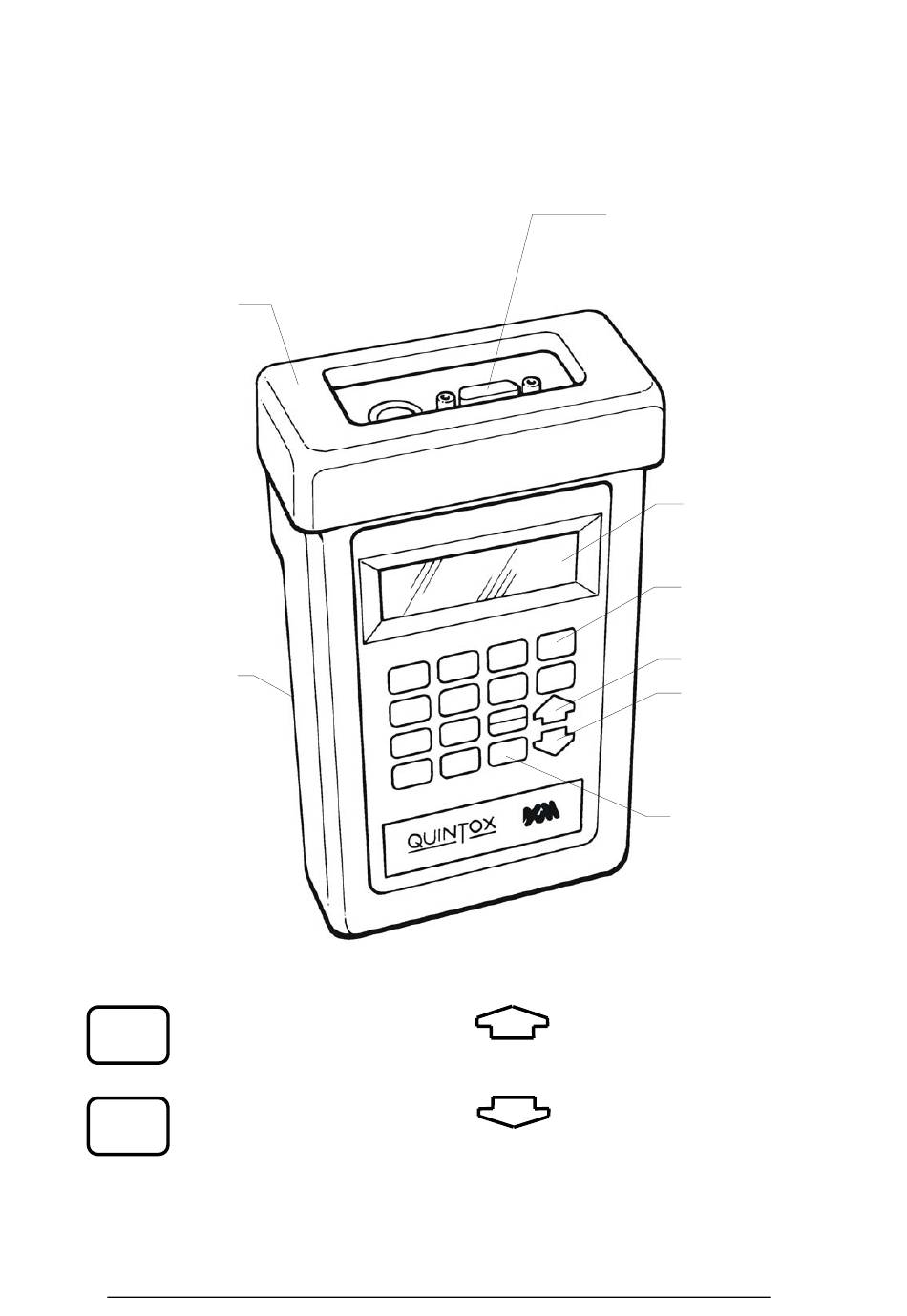

1.1 Handset Features

Rubber boot

Battery

Compartment

(back)

Commonly used keys

ON/OFF

OFF

ENTER & SET/CAL

SET/CAL

ENTER

Accepts parameters

Enters values

KM9106 Operators Manual

Remote lead socket

(15 pin D type)

Also used for

downloading data

to PC

4 line display

ON/OFF Key

UP key

DOWN key

ENTER/SETCAL

keys

Pages up through screens

Scrolls up through options, ie Fuel

DOWN

Pages down through screens

Scrolls down through options

Need help?

Do you have a question about the KM9106 and is the answer not in the manual?

Questions and answers

Summary of Contents for UEi KM9106

Page 1 DOWN key Compartment (back) ENTER/SETCAL keys Commonly used keys ON/OFF Pages up through screens Scrolls up through options, ie Fuel ENTER & SET/CAL DOWN SET/CAL ENTER Accepts parameters Pages down through screens Enters values Scrolls down through options KM9106 Operators Manual...
Page 2 Sulphur Filter Printer unit Connection lead Particle Filter for Oxygen Battery Handset sensor enclosure (stored in pocket) Dual Accessory pressure ports storage space (leads/water Water trap trap etc.) Water trap connection located on side of instrument Instrument case KM9106 Operators Manual...
Page 3 1.3 Standard Probe Configuration KM9106 Operators Manual...
Page 4 1.4 Analyser Connections KM9106 Operators Manual...
Page 5 When using the analyser for the first time you have the following under your control PARAMETER SECTION Display Contrast Backlight Language Line Rejection for mains frequency Gas Measurement Scale Temperature scale Pressure scale Reference oxygen Time and date KM9106 Operators Manual...
Page 6 Printed header name and telephone number KM9106 Operators Manual...
Page 7 . . LOGGER CONTROL 2 . . QUINTOX CONTROL Use the keys to SELECT FUNCTION position the cursor over 2 . .Quintox 1 . . LOGGER CONTROL Control. . . QUINTOX CONTROL Press to access Quintox ENTER Control KM9106 Operators Manual...
Page 8 It is advisable to repeat Oxygen Calibration every 2 hours for maximum accuracy. to change the display. NETT ..20.9 ppm . . . 0000 EFF (G) % . . . All parameters are detailed in Appendix A - MAIN DISPLAY PARAMETERS. KM9106 Operators Manual...
Page 9 % . . . mbar 0.00 This screen only shows readings if optional ppm . . 0000 sensors are fitted. In this instance the SO2 ppm . . 0000 sensor is NOT FITTED. ppm . . 0000 NOT FITTED KM9106 Operators Manual...
Page 10 . . 0000 ..Select next parameter. % . . . 20.9 Repeat above until ppm . . 0000 display reads desired data . . . CO/CO2 R . . 0.0001 KM9106 Operators Manual...
Page 11 The standard probe is rated at 650°C/1202°F. Temperatures of up to 1100°C/2012°F can be accommodated using an optional high temperature probe. TIP: To conserve battery power, switch off the pump when you are not taking a measurement. Use the key to turn the pump ON and OFF. PUMP KM9106 Operators Manual...
Page 12 • The water trap is vertical at all times. Water condenses in the probe line and can quickly fill the water trap when the probe is moved. Take care and watch the water trap closely. • The in-line particle filter is clean and does not become blocked. KM9106 Operators Manual...
Page 13 The handset display and print out indicate that the CO2 value is a measured value by showing CO2m. If the module is not fitted, the KM9106 automatically defaults to calculated CO2. If during start up calibration a fault is detected in the CO2 module, the instrument will default to calculated.
Page 14 Carbon Dioxide calculation or reading CO, Nett and XAIR to display Carbon Monoxide plus Nett, O and CO to display AUX1 and CxHy readings plus Nett and CO FUEL to display chosen fuel and its parameters to display Gross efficiency plus O and CO KM9106 Operators Manual...
Page 15 . . . 0.0 # In this function only the battery level will be updated and all other parameters are frozen. This does not apply when AUTOPRINT is ON, the time and date are also updated in this mode. KM9106 Operators Manual...
Page 16 The Pump can be toggled on or off from the handset. TO TOGGLE THE PUMP ON /OFF Press PUMP TIP: When the pump is switched off the O reading will go down as the oxygen sensor consumes the oxygen in its housing! KM9106 Operators Manual...
Page 17 This function allows re-set without the need to repeat the start-up routine Toxic sensor zero The CO and other optional toxic sensors can be reset to zero if KM9106 Operators Manual...
Page 18 SETTING NUMBERS. Parameter Controls Options DATE: Select each number using 0 - 9 key and ENTER The cursor _ moves to each number in turn until the last number is set. DATE 26-01-97 KM9106 Operators Manual...
Page 19 -- -- -- -- -- -- -- -- -- -- -- -- -- Pressing the key displays FUEL STANDARD OR USER? STANDARD FUEL Parameter Controls Options Select using key and FUEL STANDARD STANDARD FUEL USER FUEL ENTER KM9106 Operators Manual...
Page 20 Select fuel type using NATURAL GAS NATURAL GAS 2 TOWN GAS ENTER LIGHT OIL HEAVY OIL COAL ANTHRACITE COKE PROPANE BUTANE GASCOR The table shown above is for the UK. Fuel lists vary depending on the country. KM9106 Operators Manual...
Page 21 Net is used in France and Germany. NOTE: Latent heat is the heat required to turn water at 100°C into steam at 100°C, i.e. a change of state from liquid to vapour without rise in temperature has taken place. KM9106 Operators Manual...
Page 22 -- -- -- -- -- -- -- -- -- -- -- -- -- SET/CAL UPPER FUNCTION UPPER FUNCTION key -- -- -- -- -- -- -- -- -- -- -- -- -- Pressing the key displays SCALE SELECT LANGUAGE ENGLISH KM9106 Operators Manual...
Page 23 = milligrams per cubic meter n denotes the reading is normalised or referenced to Oxygen See Reference Oxygen in the Appendix On power up the unit will default to ppm. COMPENSATION < > < OFF > KM9106 Operators Manual...
Page 24 CELSIUS ENTER FAHRENHEIT SET PRESSURE Parameter Controls Options Select using key and PRESSURE mbar ENTER inWG NOTE: mbar millibar inWG inches of water gauge SET REFERENCE O2 Parameter Controls Options REFERENCE Select using key and ENTER KM9106 Operators Manual...
Page 25 P% = REF. %NOx and is set to 5% as default. With both NO and NO2 sensors fitted the formula is as follows :- • NOx = NO + NO2 SET NOx REF NOx = SUM KM9106 Operators Manual...
Page 26 NOx = NO adds the ppm values together and then converts to NO equivalent. • NOx = NO2 adds the ppm values together and then converts to NO2 equivalent. On power up the unit will default to NOx = SUM KM9106 Operators Manual...
Page 27 -- -- -- -- -- -- -- -- -- -- -- -- -- ENTER FLUE . . . 30.0 The temperature measured by the flue probe will be set in the Quintox. Press to check the reading. INLET KM9106 Operators Manual...
Page 28 -- -- -- -- -- -- -- -- -- -- -- -- -- ENTER SERVICE CODE -- -- -- -- > 0 0 0 0 < -- -- -- -- Press four times ENTER CALIBRATE SENSOR Parameter Controls Options KM9106 Operators Manual...
Page 29 Once the instability has reached zero press to accept the zero calibration ENTER and return to the main display. If the instability does not reach zero then the instrument will show FAULT. Contact Kane International or Authorised Distributor for advice. KM9106 Operators Manual...
Page 30 This will continue until the CO level falls below the alarm setting. -- -- -- -- -- -- -- -- -- -- -- -- -- CO ALARM 410 ppm -- -- -- -- -- -- -- -- -- -- -- -- -- KM9106 Operators Manual...
Page 31 CxHy % ..NETT C ..FLUE C ..INLT NOT FITTED AMBIENT 16.9 -- -- -- -- -- -- -- -- -- -- -- KM9106 Operators Manual...
Page 32 2 AUTO PRINT 2:00 minutes. keys. To select ON or OFF and press ENTER With Auto print ON the display will show :- AUTO PRINT 2:00 keys to select from 0:10 to 90:00 and press ENTER KM9106 Operators Manual...
Page 33 When the last character has been set the screen will display the next screen. Entering NO will select the standard printout as detailed earlier in this USER PRINTOUT ? section. The general principle for selecting a user printout is detailed below. KM9106 Operators Manual...
Page 34 O2 % ..11.2 End the printout with a line of hashes. SET LINE ..3 # # # # # # # # # # # # # KM9106 Operators Manual...
Page 35 AMBIENT C 16.9 AMBIENT AIR TEMP - - - - - - - - - - - - DOTTED LINE Not all parameters are used. See the master list on the next page if more are required. KM9106 Operators Manual...
Page 36 FLUE GAS NO CONTENT FLUE GAS NOX CALCULATION FLUE GAS CO CONTENT CxHy HYDROCARBON MEASURMENT CO/H CROSS SENSITIVITY MEASUREMENT AUX1 AUXILIARY 1 SENSOR MEASUREMENT --------- DOTTED LINE # # # # # # # # STOPS PRINTOUT KM9106 Operators Manual...
Page 37 A flashing cursor will be positioned over the number 1, control of the cursor is through and . Move the cursor to the desired function and press enter to select. To return to the MENU at any time press simultaneously. KM9106 Operators Manual...
Page 38 Quintox charger into the side of the handset. Typical recharge time is 12 hours. Take care to insert batteries correctly, indication of polarity is in the battery enclosure. KM9106 Operators Manual...
Page 39 Select YES or NO using press . A warning display is shown and you are requested to confirm you want to delete all of the data stored ! CONFIRM DELETION Select YES or NO using press ENTER KM9106 Operators Manual...
Page 40 OFF the handset if you do. DISPLAY MEMORY Display Memory allows you to view stored information on the hand-set display. Select YES to access the following screen. DISPLAY MEMORY SELECT 0000 TO 0123 0000 KM9106 Operators Manual...
Page 41 Information can be captured from the RS232 on the Quintox. A standard RS232 serial lead is required to connect the Quintox RS232 to the PC serial port. Contact your computer supplier or Kane International for the required lead. Leads are supplied with the FIREWORKS software. KM9106 Operators Manual...
Page 42 8.4.1 Setting Up Your PC A standard communications package will be able to collect the data from the Quintox. Windows Terminal software is a suitable package. The communications protocol should be set to :- KM9106 Operators Manual...
Page 43 25 pin contact your computer supplier for a convertor. Set the logger to DOWNLOAD data and ensure it is in READY mode. NOTE: You will require batteries to run the logger and download the data. KM9106 Operators Manual...
Page 44 NO2 and SO2 readings are required. A Main Purge solenoid should also be fitted to the Quintox when monitoring for longer periods of time. This is to supply fresh air to the sensors and hence prevent them drying out. See Recommended Operation in next section. KM9106 Operators Manual...
Page 45 NOTE: If the analyser is positioned where levels of gases are higher than fresh air ambient conditions then auto zero should not be used. KM9106 Operators Manual...
Page 46 PURGE DURATION 05 <05 ... . 09> PURGE INTERVAL 30 <09 ... . 99> KM9106 Operators Manual...
Page 47 The main purge will also operate when any gas concentration goes over the stated range of that sensor. Fresh air will be drawn into the Quintox until the gas level is down to 80% of the sensor range. KM9106 Operators Manual...
Page 48 Clean the inside of the filter housing with a suitable soft cloth. Insert a new filter element onto the spigot on the filter end cap and carefully insert it into the filter body. KM9106 Operators Manual...
Page 49 -- -- -- -- -- -- -- -- -- -- -- -- -- SET/CAL UPPER FUNCTION UPPER FUNCTION key -- -- -- -- -- -- -- -- -- -- -- -- -- Pressing the key displays PRINT PAPER FEED Press any key to stop. KM9106 Operators Manual...
Page 50 Marked on one end of the cartridge is PUSH. Gently press down on this end and the ribbon cartridge will pop up at the other end. Remove the cartridge and dispose of. Fit a new ribbon guiding the paper roll between the exposed ribbon and cartridge body. Refit printer cover. KM9106 Operators Manual...
Page 51 • Battery below alarm level. • Battery quickly discharging and is faulty. off in operation. • Display is blank. • The contrast setting has been lost and requires resetting. Disconnect handset lead and reconnect. Set contrast as in Section KM9106 Operators Manual...
Page 52 This is so that long term drift on the sensors and electronics can be eliminated. Local regulation may require more frequent re-calibration and users should check with appropriate authorities to ensure they comply with relevant guidelines. KM9106 Operators Manual...
Page 53 RS232 interface of the analyser to your modem so that the technician can operate the analyser remotely and extract from it information stored in its memory that might help to resolve your problem. KM9106 Operators Manual...
Page 54 Sulphur Dioxide (SO Pressure: 0.1% +/-7% of reading +/-0.4% 0-100% Carbon Dioxide (CO 0.1% +/-0.3% +/-5% of reading Carbon Dioxide 0.01% +/-1% 0-5% Methane (LEL) Efficiency Hydrocarbons (HC): Using dry gases at STP Calculated LEL = Lower Explosive Limit KM9106 Operators Manual...
Page 55 8 Data bits, 2 Stop bits. QUINTOX Pin 2: TXD Pin 2: TXD Pin 3: RXD Pin 3: RXD Pin 4: RTS Pin 4: RTS Pin 5: CTS Pin 5: CTS Pin 7: Ground Pin 7: Ground KM9106 Operators Manual...
Page 56 AMBIENT OPERATING RANGE 0 - 40°C (+32°F to 104°F) 20 - 80% RH non condensing Storage: 0-50°C Maximum gas temperature at sensors: Continuous +40°C Intermittent +55°C KM9106 Operators Manual...
Page 57 Oxygen referencing prevents false readings being submitted, e.g. allowing more air into the boiler will increase the oxygen level in the flue and hence dilute any toxic gas reading. Oxygen referencing gives readings as if they were undiluted. KM9106 Operators Manual...
Page 58 Flue probe See Section 6.5. The air probe is plugged into the instrument through the INLET socket. This figure is used to calculate the NET temperature instead of AMBIENT when fitted. AMBIENT : Temperatrue measured by the internal sensor, used in the NET temperature KM9106 Operators Manual...
Page 59 For more details on NOx calculation see Section 6.4 Scales. Reading can also be referenced to oxygen ppmn or mg/m3n. SO2 : Sulphur Dioxide reading in ppm or mg/m3. Displayed when Sulphur Dioxide sensor fitted. Reading can also be referenced to oxygen ppmn or mg/m3n. KM9106 Operators Manual...
Page 60 It is an indication of the level if Hydrogen in the flue and can NOT be used as an exact level, it is only used to cross compensate the CO sensor. AUX1 : Auxilliary sensor position, to be used for future sensors. KM9106 Operators Manual...
Page 61 NOx reading is referenced to NO or NO referenced to NO NO in mg/m = NO in ppm multiplied by 1.34 NOx in mg/m = NO in mg/m multiplied by (1 + assumed NO percentage) KM9106 Operators Manual...
Page 62 2norm divided by (21 minus the actual O reading) mg/m n = initial reading in mg/m multiplied by (21 minus the O setting) and 2norm then divided by (21 minus the actual O reading) KM9106 Operators Manual...
Page 63 2norm divided by (21 minus the actual O reading) mg/m n = initial reading in mg/m multiplied by (21 minus the O setting) and 2norm then divided by (21 minus the actual O reading) KM9106 Operators Manual...
Page 64 K1n = ( 255 x %Carbon in fuel )/Q net K2 = % max theoretical CO 2 (dry basis) K3 = % Wet Loss Measured Data: Tf = Flue Temperature Ti = Inlet Temperature m = % Oxygen in flue gas KM9106 Operators Manual...
Page 65 The formula for K4 is based on the gross calorific value Qgr. To obtain the loss based on net calorific value multiply by Qgr/Qnet. Since this loss is usually small this conversion has been ignored. Oxygen Reference CO(n) = CO x (20.9 - O (20.9 - O KM9106 Operators Manual...
Page 66 The fuel values to program into the Analyser are as follows: NATURAL GAS : 0.763 : 0.685 : 20.4 : 20.08 : 65 : 8.0 * Assumed values in the absence of supplied data. See previous appendix for other fuels. KM9106 Operators Manual...
Page 67 E. ELECTROMAGNETIC COMPATABILITY (CE) STATEMENT This product has been tested for compliance with the following generic standards: EN 50081-1 EN 50082-1 and is certified to be compliant Specification EC/EMC/KI/KM9106 details the specific test configuration, performance and conditions of use. KM9106 Operators Manual...
