- Page 1 DL599 Wireless TRMS Clamp Meter w/ 3-Phase & Unbalanced Motor Tests INSTRUCTION MANUAL ENGLISH CAT IV 600V 600A DL599 Temp µA SELECT Low Z AUTO True RMS TEMP 1-800-547-5740 www.ueitest.com • email: info@ueitest.com...
-
Page 2: Table Of Contents
Table Of Contents FUNCTIONS ....................3 FEATURES .....................3 GENERAL SPECIFICATIONS .............3 IMPORTANT SAFETY WARNINGS ..........4 SYMBOLS .....................5 CATEGORY DEFINITIONS ..............5 OVERVIEW ..................6 - 7 OPERATING INSTRUCTIONS Non-Contact Voltage ..............7 Voltage: 1000V AC/DC ............. 8 Frequency (Hz) / Duty Cycle ............9 Low Z (Low Impedance) ............ -
Page 3: Functions
UL 61010-1: 2012, IP42, 6 ft. Drop Protection • Battery Type: (AAA) 4 • Test Leads: Test leads w/ alligator clips & back probes Use ATL58 test leads w/ ABP3 back probes and AAC3 alligator clips. ATL55, ATL57 and ATLTX will not work with DL599... -
Page 4: Important Safety Warnings
Important Safety Warnings WARNING Read entire Safety Notes section regarding potential hazards and proper instructions before using this meter. In this manual the word “WARNING” is used to indicate conditions or actions that may pose physical hazards to the user. The word “CAUTION” is used to indicate conditions or actions that may damage this instrument. -
Page 5: Symbols
Symbols AC (Alternating current) DC (Direct current) Negative AC/DC Voltage or Current Auto-ranging Overload: Range Exceeded Low pass Filter Wireless Connection Auto power off Active Non-Contact Voltage Low Battery Hold/Capture Value Minimum measured Maximum measured value displayed value displayed Duty Cycle Hertz/Frequency Voltage Inrush... -
Page 6: Overview

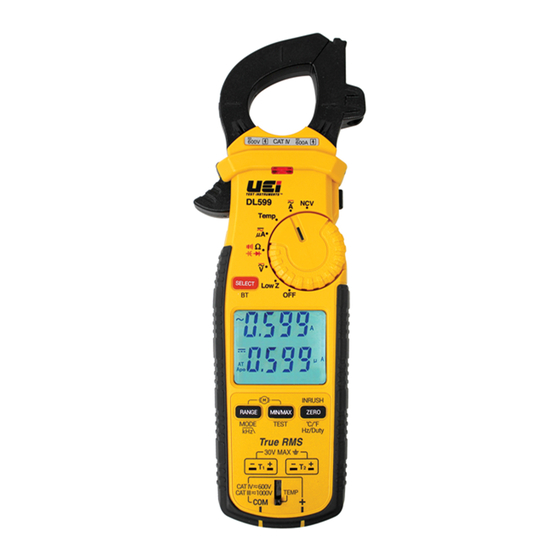

Overview CAT IV 600V 600A DL599 Temp µA SELECT Low Z AUTO True RMS TEMP A. Clamp: Measure inductive AC/DC current. Opens to 1.25” (32.0mm). B. Conductor Alignment Marks: Use to aid the visual alignment of a conductor when measuring inductive amperage. Greatest accuracy is achieved when the conductor inside the clamp is centered at the intersection of these marks. -
Page 7: Non-Contact Voltage
W. Battery Compartment Latches: X. Serial Number Non-Contact Voltage NCV Sensor in the tip. 600V CAT IV 600A DL599 Temp µA SELECT Low Z AUTO True RMS TEMP • Rotate Rotary Selector Dial to NCV position move the tip of the clamp meter near voltage source. -
Page 8: Voltage: 1000V Ac/Dc
Voltage: 1000V AC/DC CAT IV 600V 600A DL599 Temp High µA Voltage • Default = Auto Selection SELECT Low Z Alert • Press SELECT x1 = • Press SELECT x2 = AUTO • Press RANGE to select resolution True RMS... -
Page 9: Frequency (Hz) / Duty Cycle
Frequency (Hz) / Duty Cycle CAT IV 600V 600A DL599 Temp µA • Default = Auto Selection • Press SELECT x1 = SELECT Low Z • Press and hold ZERO x1 = • Press and hold ZERO x2 = AUTO •... -
Page 10: Low Z (Low Impedance)
Low Z (Low Impedance) Low Z CAT IV 600V 600A DL599 • Rotate Selector Dial to Low Z Temp • Default = Auto Selection µA • Press SELECT x1 = SELECT Low Z • Press SELECT x2 = Features: AUTO... -
Page 11: Ac/Dc Amps <600A Jaw
AC/DC Amps <600A Jaw Single Conductor CAT IV CAT IV 600V 600V 600A 600A Only DL599 DL599 Temp Temp µA µA SELECT SELECT Low Z Low Z AUTO AUTO • Default = Auto Selection • Press SELECT x1 = • Press SELECT x2 =... -
Page 12: Ac/Dc Microamps: <2000Μa
AC/DC Microamps: <2000µA CAT IV 600V 600A DL599 Temp µA • Default = Auto Selection • Press SELECT x1 = SELECT Low Z • Press SELECT x2 = AUTO • Readings show on lower display True RMS TEMP WARNING • Do not attempt to measure more than 2000µA. -
Page 13: Lra Inrush
• Press ZERO = Inrush AUTO True RMS TEMP The UEi LRA Inrush is programmed to properly capture the starting current for compressor motors. • Select AC Amps. • Select the range capable of capturing the maximum value. • Press the ZERO button – INRUSH will now be shown on the screen. -
Page 14: Voltage Unbalance
Voltage Unbalance 1. Set the Dial to V range 2. Press and hold RANGE and MIN/MAX button to enter Phase rotation mode. Press RANGE button to enter Voltage Unbalance test mode Upper display indicates “V1V2” Press Min/Max button to enter Testing standby mode. “V1V2”... -
Page 15: Resistance: < 60Mω
Resistance: < 60MΩ CAT IV 600V 600A DL599 Temp µA • Default = SELECT Low Z • Press RANGE to select resolution AUTO True RMS TEMP Features: SELECT WARNING • Do not measure resistance on a live circuit. Range Resolution... -
Page 16: Diode
Diode GOOD DIODE CAT IV 600V 600A Reverse Bias DL599 Displays "OL" Temp µA • Default = Ω SELECT Low Z • Press SELECT x2 = AUTO Forward Bias Displays approx. voltage drop True RMS TEMP BAD DIODE Open Diode Displays "OL"... -
Page 17: Capacitance
Capacitance CAT IV 600V 600A DL599 Temp µA • Default = Ω SELECT Low Z • Press SELECT x3 = • Press RANGE to select resolution AUTO True RMS TEMP Features: SELECT Range Resolution Accuracy Overload Protection 10.00nF 0.01nF 100.0nF 0.1nF... -
Page 18: App Overview
App Overview • In the App stores Google Play and the App Store, search “DL599”. • App is compatible with iOS® 12.0 and up and Android™ 6.0 and up. • If searching for the iPad version, you may have to filter for “iPhone” only. -
Page 19: Test Lead Notes
CAUTION: If the test leads need to be replaced, you must use a new one which should meet EN 61010-031 standard, rated CATIII 1000V or better. NOTE: DL599 works with UEi ATL58 test leads, ABP3 back probes and AAC3 alligator clips. -
Page 20: Warranty
Any implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the express warranty. UEi shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expenses or economic loss.
