Summary of Contents for Renogy RCC30REGO

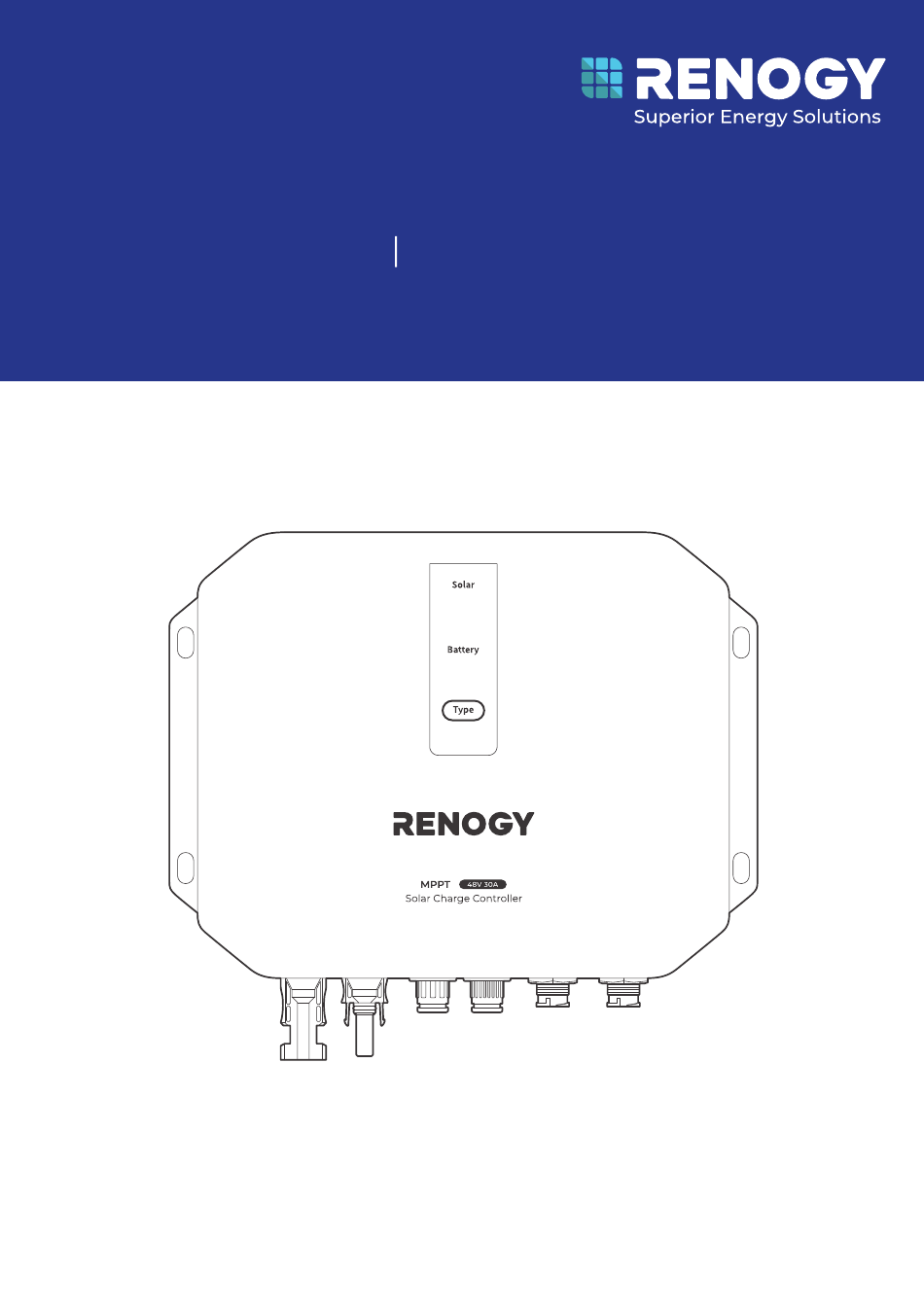

- Page 1 Renogy MPPT Solar Charge Controller 12V/24V/36V/48V 30A VERSION A0 RCC30REGO April 30, 2024 QUICK GUIDE...
- Page 2 All information in the quick guide is subject to copyright and other intellectual property rights of Renogy and its licensors. The quick guide may not be modified, reproduced, or copied, in whole or in part, without the prior written permissions of Renogy and its licensors.
- Page 3 Table of Contents What’s In the Box? ..................1 Dimensions ....................1 Get to Know Renogy Charge Controller ..........2 System Setup ..................... 2 Required Tools & Accessories ..............3 How to Install the Amphenol Connectors? ..........3 Step 1. Wear Insulating Gloves ..............4 Step 2.

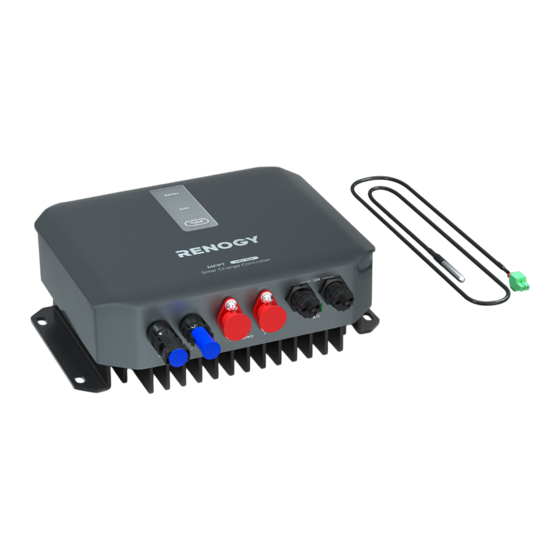

- Page 4 What’s In the Box? Renogy MPPT Solar Charge Controller 12V/24V/36V/48V 30A Renogy 12V/24V/36V/48V 30A VERSION A0 RCC30REGO April 30, 2024 MPPT Solar Charge Controller × 1 QUICK GUIDE Quick Guide × 1 ST6.3 mm Battery Temperature Mounting Screws x 4 Sensor (3 m) ×...
- Page 5 Get to Know Renogy Charge Controller Battery Status Indicator Solar Charging Indicator Negative Solar Panel Port Positive Solar Panel Port Battery Type Setting Button CAN Communication Ports Negative Battey Port Positive Battey Port Mounting Holes Battery Temperature Sensor (BTS) Port The Battery Temperature Sensor (BTS) Port cannot be used on lithium iron phosphate batteries which come with battery management systems (BMS).
- Page 6 You can purchase Amphenol connectors from either renogy.com or arrow.com (with guaranted quality). Applicable models: C10-791435-1101 (for positive) and C10- 791435-1102 (for negative). For details, contact the tech support team at renogy. com/contact-us or the customer service of the respective dealer.
- Page 7 Step 1. Wear Insulating Gloves To ensure safe and efficient operation of the charge controller and to avoid potential damage or hazards, always follow the installation instructions in the sequence described in this quick guide. Insulating Gloves Step 2. Plan a Mounting Site The charge controller requires adequate clearance for installation, wiring and ventilation.
- Page 8 Cables (10 AWG) × 2 (10 AWG) × 1 Accessories marked with “*” are available on renogy.com. For installation details, see the user manual of the battery in use. To ensure optimal system performance, a 10 AWG cable should be no longer than 3 meters.
- Page 9 *Solar Panel Fuse *Solar Panel Extension Cables (10 AWG, Max power) × 2 Accessories marked with “*” are available on renogy.com. Connecting the charge controller to a solar panel exceeding 150V results in damage to the charge controller. The appropriate current rating for the solar panel fuse should be determined by multiplying the total amperage of the solar panel array by 1.56.
- Page 10 Step 5. Install a Battery Temperature Sensor The temperature sensor measures the surrounding temperature of the battery and compensates the floating charge voltage when the battery temperature is low. Do not use the temperature sensor on a LiFePO4 (LFP) battery which comes with a battery management system (BMS).
- Page 11 For lithium batteries, the charge controller defaults to a voltage of 12V. If using 24V, 36V, or 48V lithium batteries, you can customize the parameters through Renogy ONE or DC Home. For 48V lithium batteries, you need to select the cell series between 15 Series and 16 Series on the DC Home app.
- Page 12 USER Mode Setting the battery type to User Mode allows you to customize your battery parameters. You can modify the parameters in the DC Home app. RCC30REGO NOT CHARGING History PV Screen Total Energy Solar Volts Solar Amps PV Watts Produced 0.052...
- Page 13 To ensure optimal system performance, keep the phone or RENOGY ONE within 10 feet (3 m) of the charge controller. You can receive fault alarms on DC Home and Renogy ONE when the charge controller is faulty. Please login to the DC Home app or Renogy ONE for troubleshooting details.
- Page 14 Controller Device Scene Community Troubleshooting You can receive fault alarms on DC Home and Renogy ONE when the charge controller is faulty. Please login to the DC Home app or Renogy ONE for troubleshooting details. RCC30REGO NOT CHARGING History PV Screen...
- Page 15 Important Safety Instructions █ General z Wear proper protective equipment and use insulated tools during installation and operation. Do not wear jewelry or other metal objects when working on or around the charge controller. z Keep the charge controller out of the reach of children. z Do not dispose of the charge controller as household waste.
- Page 16 Questionnaire Investigation To explore more possibilities of solar systems, visit Renogy Learning Center at: renogy.com/learning-center For technical questions about your product in the U.S., contact the Renogy technical support team through: renogy.com/contact-us 1(909)2877111 For technical support outside the U.S., visit the local website below: Canada ca.renogy.com...
- Page 17 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 18 Save 105 gallons of water from being consumed Renogy Power PLUS Renogy Power Plus allows you to stay in the loop with upcoming solar energy innovations, share your experiences with your solar energy journey, and connect with like-minded people who are changing the world in the Renogy Power Plus community.
