Summary of Contents for Dan D'Agostino PENDULUM

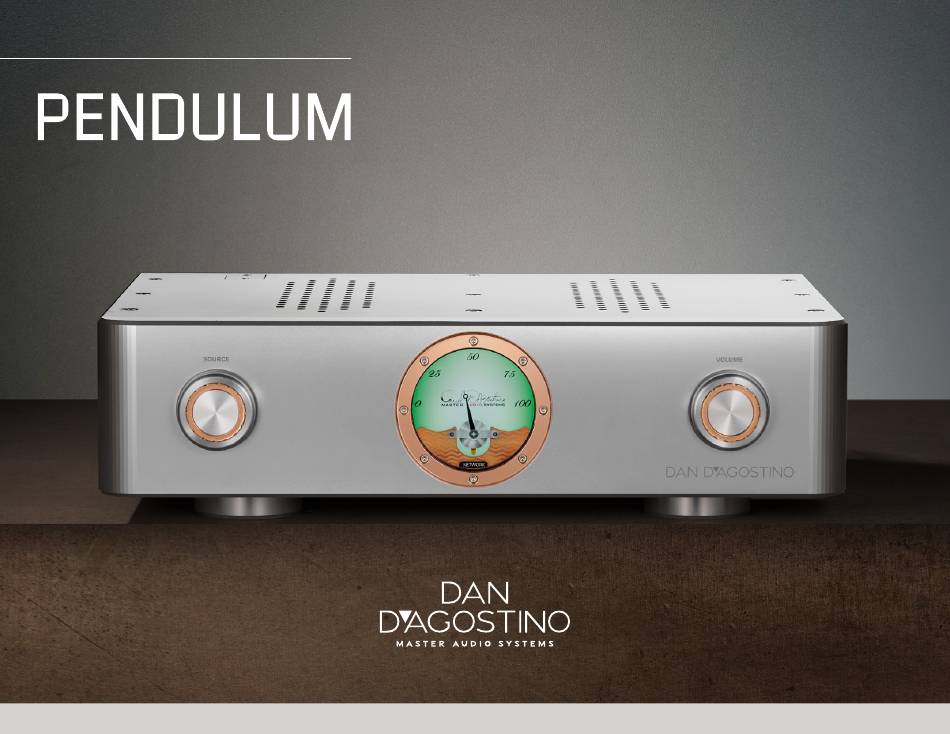

  • Page 1 O W N E R ’ S M A N U A L Integrated Amplifier...
  • Page 2 Welcome to the musical world of Dan D’Agostino Master Audio Systems. My team and I thank you for your purchase of the Pendulum Integrated Amplifier, and wish you endless high-end listening enjoyment! —Dan D’Agostino, Founder & Chief Designer...
  • Page 3 Sincerely, track data, enhancing the overall user experience. The Dan D’Agostino At the core of the Pendulum Integrated Amplifier Master Audio Systems Team lies the fundamental technology of Dan D’Agostino Master Audio Systems. This includes discrete,...
  • Page 4 (servicing) instructions in the any purpose, without expressed written permission. literature accompanying the component. Package Contents Pendulum Integrated Amplifier in protective packaging CAUTION: Remote control NO USER SERVICEABLE PARTS INSIDE Bluetooth antenna Do not open the component’s chassis or remove any...
  • Page 5 This component’s metal chassis makes it heavier than many other integrated amplifiers, so make sure the If plugging the Pendulum Integrated Amplifier into a power strip or surface that will support it can safely hold its weight. power conditioner, make sure it is a high-quality unit that does not alter ground connections or insert current-limiting elements in series Adequate ventilation must be provided for the unit.
  • Page 6 P E N D U L U M I N T E G R A T E D A M P L I F I E R Configuration Remote Control The Pendulum Integrated Amplifier is a modular design that can be used with line-level analog sources. An optional phonostage can be added for use with a turntable. Additionally, an optional Digital Streaming Module (DSM) gives access Main display/navigation to cloud-stored and locally stored music files (NAS drive, computer, etc.), as...
  • Page 7 Pendulum Top and Optional Digital Rear Panels Streaming Module IEC AC power socket RJ45 Ethernet input Optional Digital Streaming Module HDMI input with Ethernet, HDMI, optical and Optical input Wi-Fi antenna connections Wi-Fi antenna Headphone input jack RS-232 control connector...
  • Page 8 Connect the source devices (CD player, Phono, etc.) you are connecting your speaker cable’s conductors to the appropriate inputs of the Pendulum Integrated correctly—red to positive and black to negative. If Amplifier. Connect the XLR or RCA cables to the your cables indicate the desired signal flow, align appropriate jack by pushing the plug into the jack.
  • Page 10 HDMI input on the TV. Please consult match your phono cartridge’s loading specification. your TV owner’s manual for proper operation. Phono Resistor Loading Settings AC cord The Pendulum Integrated Amplifier is supplied with a high- Loading 50Ω 100Ω 250Ω...
  • Page 11 Standby on/off, input selection, and menu white and the remote display will go to zero. If the polarity navigation. The right knob controls Volume up/down of the Pendulum Integrated Amplifier is inverted, the volume and Mute functions. will blink white and red.
  • Page 12 P E N D U L U M I N T E G R A T E D A M P L I F I E R Input selection Dark Mode Rotate the left front panel knob clockwise to the desired When activated, Dark Mode blanks out the volume source and press the knob to confirm selection.
  • Page 13 Integrated Amplifier and uses the volume control of the System: Wi-Fi activation surround sound processor instead. The volume controls on both the front panel and remote control of the Pendulum With the Digital Streaming Module installed, the Wi-Fi option Integrated Amplifier will be disabled during this mode. To will become available.
  • Page 14 Note: If the remote control is not on the unit’s front panel. It also The remote control includes a paired to the Pendulum Integrated functions as the main navigational rechargeable lithium-ion battery. Amplifier, a small Bluetooth logo...
  • Page 15 When muted, the balance indicator directly beneath input is displayed at the bottom of volume display will blink green and white the volume needle on the Pendulum the remote-control screen. and the remote-control display will go Integrated Amplifier and remote- to zero.
  • Page 16 Headphone icon is shown to toggle This bypasses the internal volume between headphone or loudspeaker control of the Pendulum Integrated Display and Remote Brightness Mode listening. When headphones are in Amplifier and uses the volume control...
  • Page 17 Polarity icon is shown. The volume Note: If the optional phono module meter and remote-control display will This function restores the Pendulum is installed in the unit, input 4 is not change from green to red when polarity Integrated Amplifier to its original available for use with Theater Mode.
  • Page 18 Play To page, and select Pendulum Basic setup of the optional Digital Streaming Module Integrated Amplifier. The app While the Pendulum Integrated Amplifier can be used will now control the Pendulum with analog sources, an iOS device is required to use Integrated Amplifier.
  • Page 19 The stream option opens the page for to adjust volume. selecting Internet streaming sources, and the cloud and network drives that the Pendulum Integrated Amplifier can access in the connected system.
  • Page 20 Using the App: Main Controls HDMI SOURCE SELECTION The HDMI input on the Pendulum Integrated Amplifier Press one of the four analog source buttons (Input 1,2,3, or 4) or supports Enhanced Audio Return Channel (eARC). This feature one of the three digital source buttons (Network, Optical, or HDMI) improves the transfer of high-quality audio from a TV to audio if the Digital Streaming Module is installed.
  • Page 21 Specifications Maintenance The Pendulum Integrated Amplifier requires no user maintenance. When cleaning, spray a small Power Output: 120 WPC @ 8Ω / 240 WPC @ 4Ω amount of distilled water onto a microfiber cloth and wipe along the direction of the metal grain Frequency Response: 20 Hz to 20 kHz, ±0.01 dB...
  • Page 22 Limited Warranty Dan D’Agostino Master Audio Systems, LLC (DDMAS) warrants the Pendulum Integrated Amplifier against manufacturing defects and defects in materials for three years from the date of purchase from an authorized Dan D’Agostino Master Audio Systems retailer, or four years from the original ship date, subject to the conditions listed below: 1.
  • Page 23 Together, musical connections. Please take a moment to tell us you have received your new component and ensure we have your preferred contact information. Scan the code below to provide your email address so that we may keep you apprised of our latest innovations.
  • Page 24 Technical Updates The most current version of this user manual is available to download at the link below. SCAN THE QR CODE Dan D’Agostino Master Audio Systems, LLC dandagostino.com Office: +1 480.575.3069 5855 E. Surrey Drive, Cave Creek, AZ 85331 Our products are designed and built by hand in the U.S.A.
