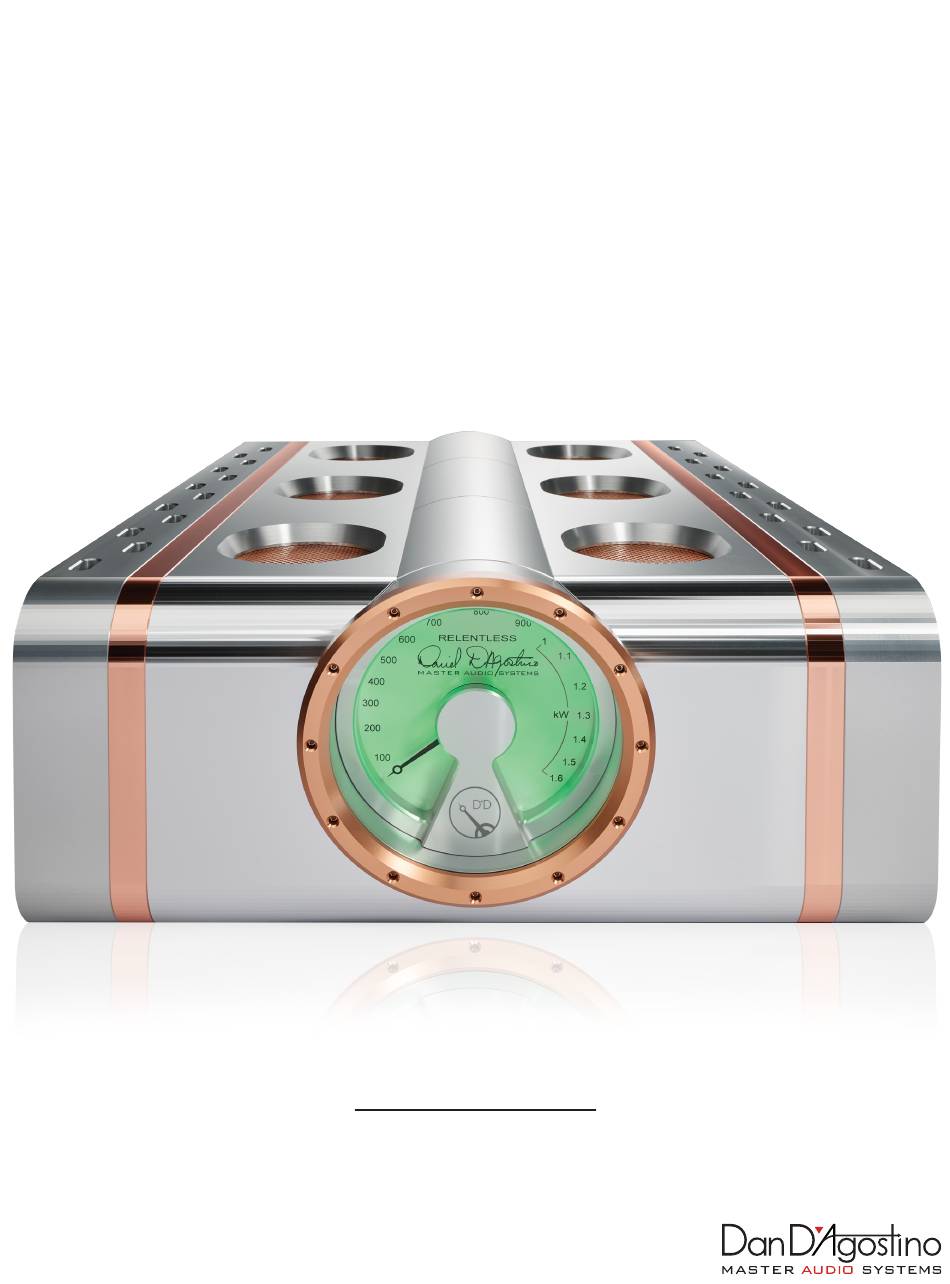

- Page 1 RELENTLESS EPIC 1600 RELENTLESS 800 MONOBLOCK AMPLIFIER OWN ER ’ S MAN UAL...
- Page 3 AC circuit. But the Relentless is designed to work not only with standard 110-volt AC, but also with 220-volt/30-amp circuits, which allows the Epic 1600 to deliver a staggering 6,400 watts of continuous power into 2 ohms. With the Relentless Epic 1600, every speaker ever made can achieve its best possible performance.
-
Page 4: Legal N Otificatio N S
LEGAL N OTIFICATIO N S Dan D’Agostino Master Audio Systems is a registered trademark of Dan D’Agostino Master Audio Systems LLC. The information in this owner’s manual is subject to change without notice. Current Version 2.0 of this manual was produced by the Dan D’Agostino Master Audio Systems LLC engineering, sales and marketing departments. -
Page 5: Unpacking And Installation
Unpacking the Relentless Monoblock amplifier from its case Each Relentless Epic 1600 amplifier weighs 570 lbs/258 kg and the Relentless 800 weighs 320 lbs/145 kg, so each requires at least four strong adults to lift. Be sure to have a place cleared for it before you lift, and move the box as close as possible to the spot where the amplifier will rest. -
Page 6: Speaker Cables
AC cord The Relentless Epic 1600 amplifier is fitted with threaded terminals for its power connections, rather than the IEC connector found on almost all other power amplifiers. Your amplifier has been shipped with the appropriate power cord for the voltage and socket available in your region/country. - Page 7 The Relentless 800 uses a 30A locking connector. Your AC power cable has been shipped with the appropriate power cord for the voltage and socket available in your region/country. Relentless Epic 1600 power cord terminals Relentless Epic 1600 power terminal cover...
- Page 8 RELENTLES S EPIC 1 6 0 0 1. Heat sink venturis 7. 12-volt trigger output 2. Top panel vents 8. Three-position toggle switch for power meter brightness 3. Power meter 9. Speaker cable binding posts 4. Standby/power button 10. Main power switch 5.
- Page 9 RELENTLES S 8 0 0 1. Heat sink venturis 7. 12-volt trigger output 2. Top panel vents 8. Three-position toggle switch for power meter brightness 3. Power meter 9. Speaker cable binding posts 4. Standby/power button 10. Main power switch 5.
- Page 10 A LOO K IN SID E Premium parts and precision machining of copper and aluminum are fundamental in achieving the uncompromising performance and build quality of the Relentless Monoblock amplifiers. RELENTLES S 8 0 0...
-
Page 12: Operation
O PER ATIO N Initial power-up of the amplifier Make sure the main power switch on the back of the amplifier is in the on position. The power meter will be illuminated in red. The standby/power button is located on the front underside edge of the amplifier, right of the meter. - Page 13 Systems LLC will work with your importer or dealer to assure that the terms of the warranty are fulfilled. REGISTER YOUR RELENTLESS EPIC 1600 OR 800 MONOBLOCK AMPLIFIERS Scan this QR code and complete the form to register your component.
- Page 14 22.5 x 11.5 x 32.5 in (whd) / 57.2 x 28.0 x 82.6 cm (whd) Weight (approx.) 570 lbs / 258 kg SCAN THIS QR CODE to learn more about the Relentless Epic 1600 amplifier and download the latest owner’s manual.
- Page 15 RELENTLES S 8 0 0 Frequency response 20 Hz to 20 kHz, ±0.5 dB / <0.1 Hz to 100 kHz, +0/–3 dB Signal-to-noise ratio >75 dB, wideband, unweighted, ref. to full power output Gain 26.5 dB Total harmonic distortion <0.05% at 1 kHz, at W, 8Ω...
- Page 16 www.dandagostino.com Designed and hand-assembled in our Cave Creek, AZ facility. © 2023 DAN D’AGOSTINO MASTER AUDIO SYSTEMS LLC. ALL RIGHTS RESERVED.
