Summary of Contents for Dan D'Agostino classic stereo

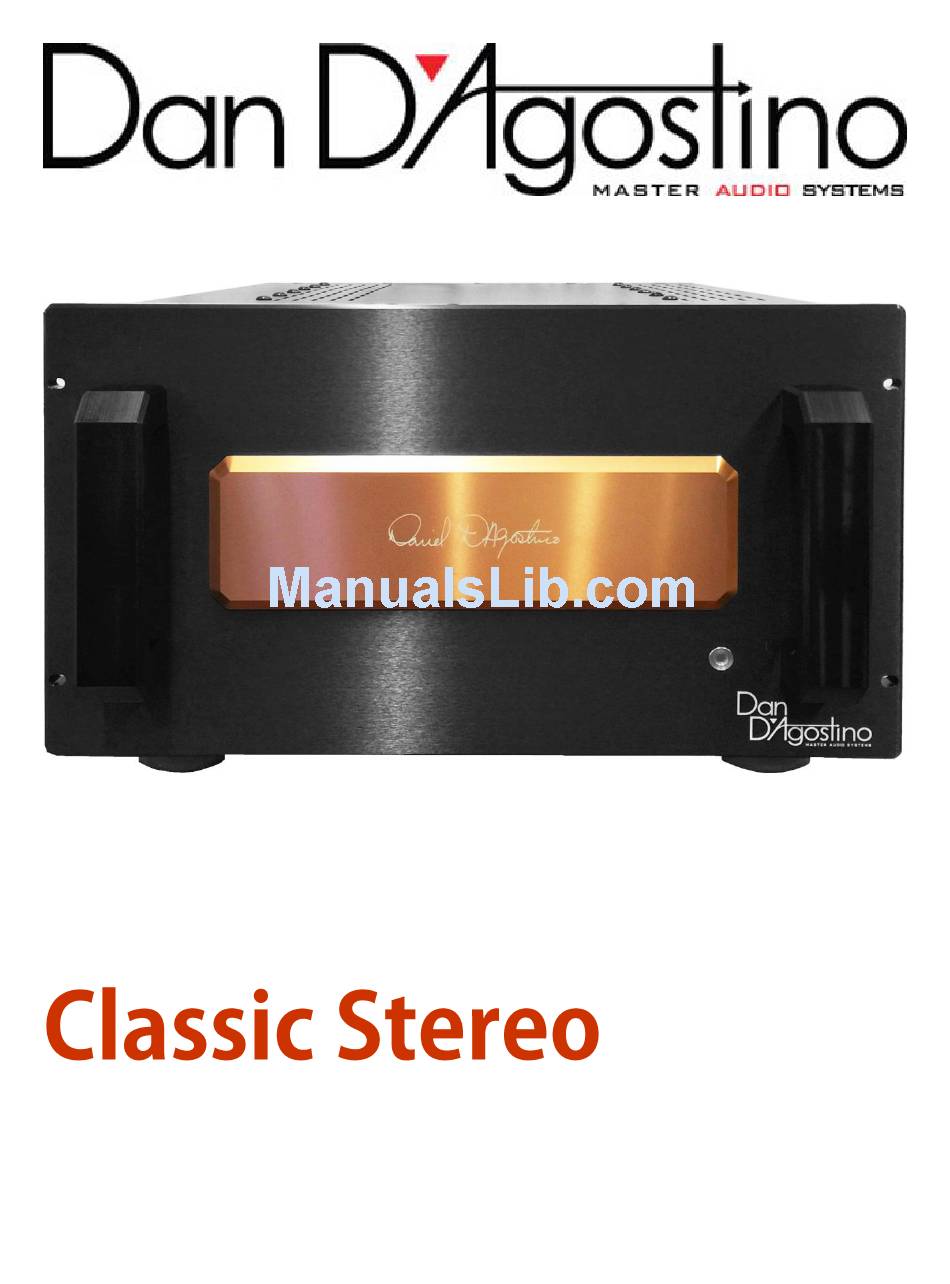

  • Page 1 power amplifier...
  • Page 2: Legal Notifications

    Legal notifications Dan D’Agostino Master Audio Systems is a registered trademark of D’Agostino LLC. The information in this owner’s manual is subject to change without notice. Current Version 1.0 of this manual was produced by the Dan D’Agostino LLC engineering, sales and marketing departments.
  • Page 3 Classic Stereo amplifier limited warranty D’Agostino LLC warrants the Classic Stereo amplifier against manufacturing defects and defects in materials for five years from the date of purchase from an authorized Dan D’Agostino Master Audio Systems dealer, subject to the conditions listed below: 1) The warranty covers only new products purchased from an authorized D’Agostino LLC...
  • Page 4 I expect it will be a long time before anything will equal them. My deepest hope is that you’ll agree, and that your new Classic Stereo will bring you closer to the music you love than you ever thought possible.
  • Page 5: Package Contents

    Classic Stereo, be sure to remove these screws first. If you need to return the amplifier for service If you should need to send the Classic Stereo amplifier back to us for service, be sure to use the original box and materials for shipment.
  • Page 6: Front Panel

    Front panel 1. Standby/Power On button Rear panel 1. XLR input jacks 5. Fuse cover 2. RS-232 control input 6. 20-amp IEC AC input 3. 3.5mm IR control output 7. Speaker cable binding posts 4. 3.5mm IR control input...
  • Page 7 We recommend the use of high-quality balanced XLR audio interconnect cables between your preamp and the Classic Stereo amplifier. If you have a source device that does not offer XLR outputs, please contact your D’Agostino Master Audio Systems dealer to acquire the proper adapters.
  • Page 8 (such as a second Classic Stereo amplifier). To use the 12-volt trigger feature with the Classic Stereo amplifier, connect a cable tipped with 3.5mm plugs (stereo or mono) to the trigger output of the preamp and the trigger input of the amplifier.
  • Page 9: Operation

    Maintenance The Classic Stereo amplifier requires no user maintenance other than to keep the amplifier clean and ensure its vents remain unobstructed. To clean the amplifier, spray a small amount of distilled water onto a microfiber cloth and gently wipe the amp’s surface along the direction of the metal grain, with light pressure...
  • Page 10: Troubleshooting

    Troubleshooting Amplifier will not power up If the amp produces no sound and the LED inside the front standby/power button does not light up when you push the button, perform the following steps in order until normal operation is restored. 1.
  • Page 11 Sound does not come from one of the channels Follow the steps below in order. If one of these steps succeeds in restoring the sound, stop there and ignore the other steps. 1. Check speaker cable connections for the malfunctioning channel. Reconnect any cables that may have become disconnected.
  • Page 12: Specifications

    Specifications Power output 8Ω 300 watts per channel 4Ω 500 watts per channel 2Ω 1,000 watts per channel Power output, bridged 8Ω 1,200 watts per channel Frequency response 0.1 Hz to 100 KHz, -1 dB 20Hz to 20 kHz, ±0 dB Distortion <0.1%, 1 kHz, 300 watts/8Ω...
  • Page 13 For more information about Dan D’Agostino Master Audio Systems, please visit: dandagostino.com...
