Summary of Contents for Baumer OF10

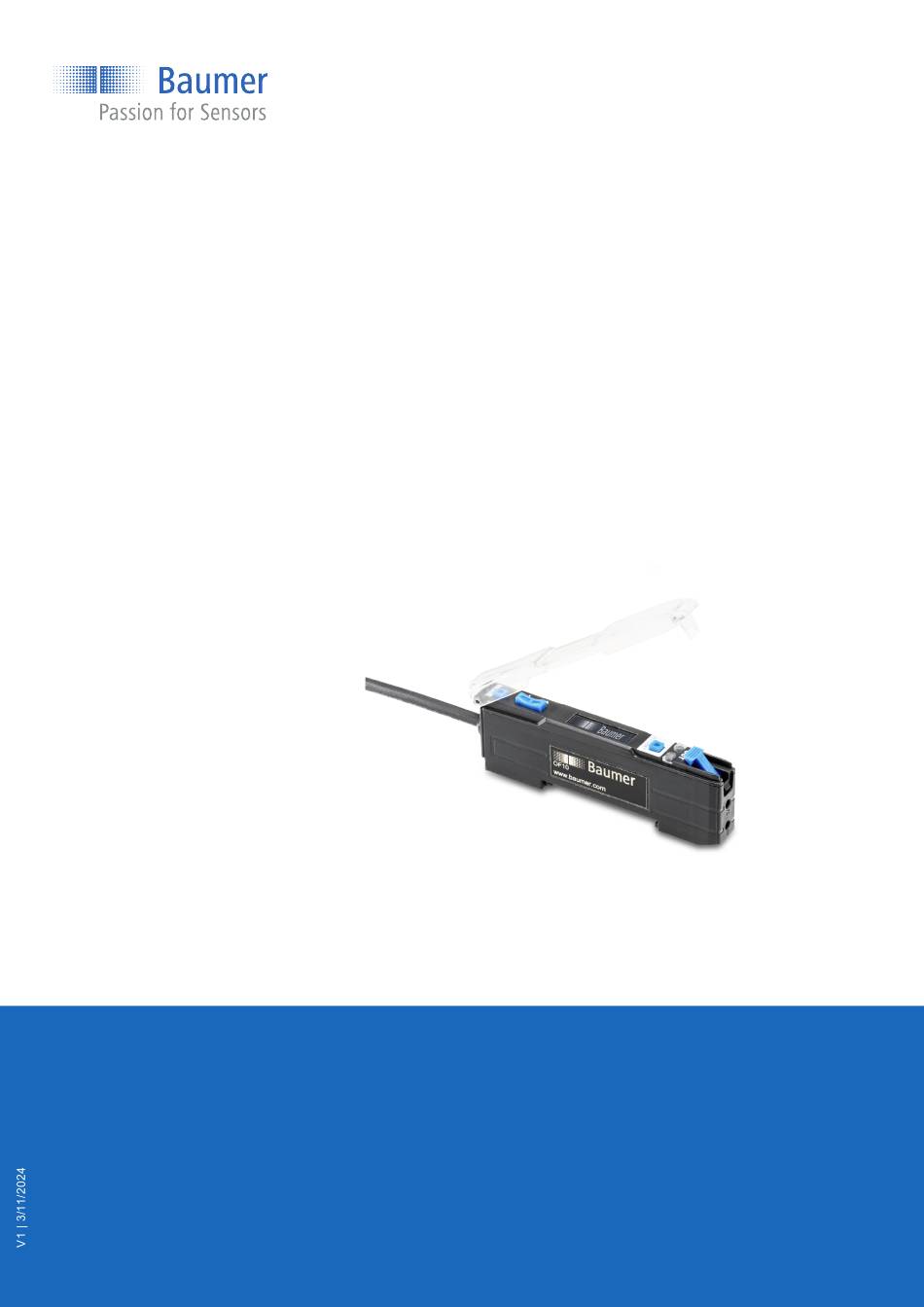

- Page 1 Description of functions and interfaces OF10 with Remote-Command-Control interface EN-US Fiber optic sensor...
- Page 2 Detect Mode............................13 Response Time ........................... 14 Hysteresis ............................15 Anti-Crosstalk............................18 Timer/counter function ........................19 Input function............................23 Display-Mode ............................24 4.10 Lock-Mode ............................25 4.11 Factory settings........................... 26 Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 3 Ill. 7 Switching output behavior in mode Single Point and negative hysteresis (Left Aligned)....16 Ill. 8 Switching output behavior in mode Window and negative hysteresis (Right Aligned)......17 V1 | OF10 with Remote-Command-Control interface Description of functions and interfaces...
- Page 4 This manual enables safe and efficient sensor parameterization. The manual describes the functions and is intended to support sensor installation and use. The illustrations are examples only. Deviations are at the discretion of Baumer at all times. This manual is a supplement to the existing product documentation.
- Page 5 Indicates a danger with low risk, which could lead to light or medium injury if not avoided. NOTE Indicates a warning of material damage. INFO Indicates practical information and tips that enable optimal use of the devices. V1 | OF10 with Remote-Command-Control interface Description of functions and interfaces...
- Page 6 In other words, transmission and reception beams are co-axial. This allows for detection in nar- row openings and the object's approaching direction does not matter. Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 7 Ill. 1: Pulse sequence example 2 - 3 - 2 (function Detect Mode = Dark ON) The pulses received appear on the display. Valid commands are executed immediately. If the input remains active, any partial command will be deleted. V1 | OF10 with Remote-Command-Control interface Description of functions and interfaces...
- Page 8 10 % (default) higher than the light intensity of the beam received. Use the selector +/- to adjust the switching point. Sensing Distance Object Position @Autoset Treshold Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 9 AUTOSET again to complete dynamic AUTOSET. The switching point is set between the highest and lowest light intensities received. Use the selector +/- to adjust the switching point. Sensing Distance after Autoset Object in Motion Treshold V1 | OF10 with Remote-Command-Control interface Description of functions and interfaces...
- Page 10 (10%) within the window level when 2000 2000 Threshold Autoset is AUTOSET Detect pressed 1800 1800 Autoset Pt 2 (10%) No Detect Ill. 2: Comparison of AUTOSET settings Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 11 Press AUTOSET to trigger the desired teaching process. AUTOSET Mode: Light State LS AUTOSET Mode: Dark State DS AUTOSET Mode: Midpoint MP AUTOSET Mode: Two-Point 2P AUTOSET Mode: Dynamic DY AUTOSET Mode: Window Wn V1 | OF10 with Remote-Command-Control interface Description of functions and interfaces...
- Page 12 Press Mode until AUTOSET Pct. appears on the display. b) Set the required value with the selector +/-. To scroll, press and hold the button. c) Press Mode to select the setting. AUTOSET Pct: Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 13 Press Mode until Detect Mode appears on the display. b) Make the required setting by help of the selector +/-. c) Press Mode to select the setting. Detect Mode: Light ON Detect Mode: Dark ON V1 | OF10 with Remote-Command-Control interface Description of functions and interfaces...
- Page 14 2 – 4 – 2 Standard 2 – 4 – 3 High-Resolution 2 – 4 – 4 Long-Range 2 – 4 – 5 Ultra-Long-Range 2 – 4 – 6 Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 15 This function prevents unwanted switching operations by the switching output. The parameter- ized value of the hysteresis is the difference in distance between the points at which the switch- ing output is activated and deactivated. Baumer recommends always setting the hysteresis not equal to 0.
- Page 16 Hysteresis is aligned to or against the sensing direction. Switching point P1 Hysteresis High Active low level Level Ill. 7: Switching output behavior in mode Single Point and negative hysteresis (Left Aligned) Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 17 Press Mode until Hysteresis appears on the display. b) Make the required setting by help of the selector +/-. c) Press Mode to select the setting. Hysteresis: Hysteresis: Standard Hysteresis: High V1 | OF10 with Remote-Command-Control interface Description of functions and interfaces...
- Page 18 Press Mode until Anti-Crosstalk appears on the display. b) Make the required setting by help of the selector +/-. c) Press Mode to select the setting. Anti-Crosstalk: Disabled Anti-Crosstalk: Channel A Anti-Crosstalk: Channel B Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 19 One- One- Shot Shot Shot Motion Input Events Output One-Shot One-Shot Triggered Triggered Retriggered Latch Input Events Output Reset Latched required On, Off-Delay Input Events Output Delay Delay Delay V1 | OF10 with Remote-Command-Control interface Description of functions and interfaces...
- Page 20 Input Events Output One- Blind One- Blind Shot Shot Delayed One-Shot Input Events Output D - Delay OS - One-Shot Delayed Latch Input Events Output Delay Reset Latched required Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 21 One-Shot occurs on Nth detection. For this example N = 5. Count, Latch Input Events Output One-Shot occurs on Nth detection. Reset Latched For this example N = 5. required V1 | OF10 with Remote-Command-Control interface Description of functions and interfaces...
- Page 22 According to the selected settings you may be provided with more options for the function (e.g. OnDelay). On Delay: 10ms Make choice using the selector +/- and confirm each setting with Mode. Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 23 Press Mode to select the setting. Input Function: Disabled Input Function: Remote Set Input Function: Remote Command Input Function: Interrogate Input Function: Gate Input Function: Remote Dark ON Input Function: Remote Lockout V1 | OF10 with Remote-Command-Control interface Description of functions and interfaces...
- Page 24 Make the required setting by help of the selector +/-. c) Press Mode to select the setting. Display Mode: 01100 00990 Numeric Display Mode: 99.9% 01.0% Percentage Display Mode: 01100 Numeric 00990 Display Mode: 99.9% Percentage 01.0% Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 25 Make the required setting by help of the selector +/-. c) Press Mode to select the setting. Result: ü The display shows Sensor Locked if lock mode is active. Button Lock: Disabled Sensor locked Button Lock: Enabled V1 | OF10 with Remote-Command-Control interface Description of functions and interfaces...
- Page 26 Instruction: a) Press and hold Mode while connecting the sensor. ü The display will give visual feedback. b) Confirm with selector +/-. Result: ü Default settings have been restored. Description of functions and interfaces OF10 with Remote-Command-Control interface | V1...
- Page 28 Baumer Electric AG Hummelstrasse 17 CH − 8501 Frauenfeld www.baumer.com...
