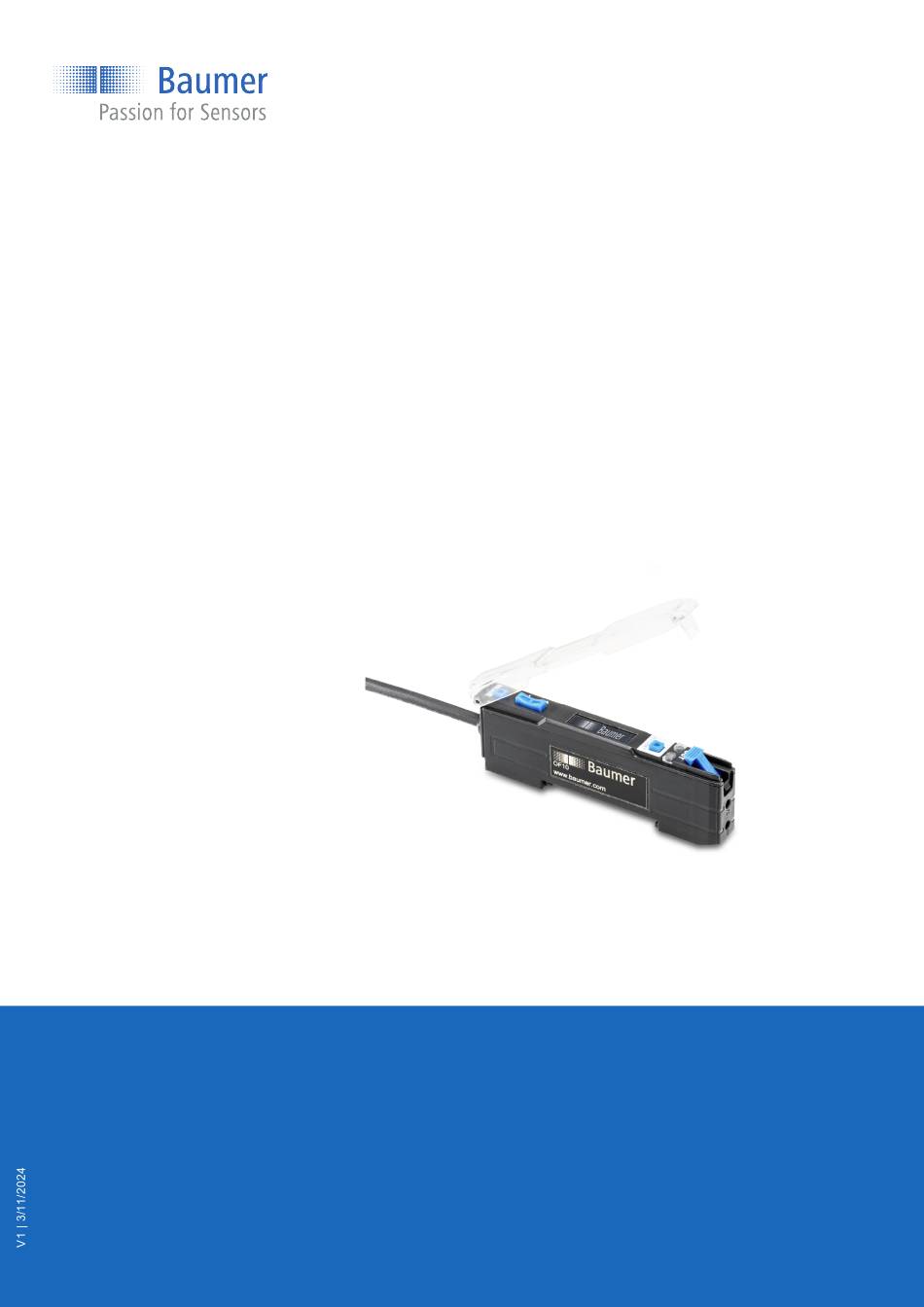

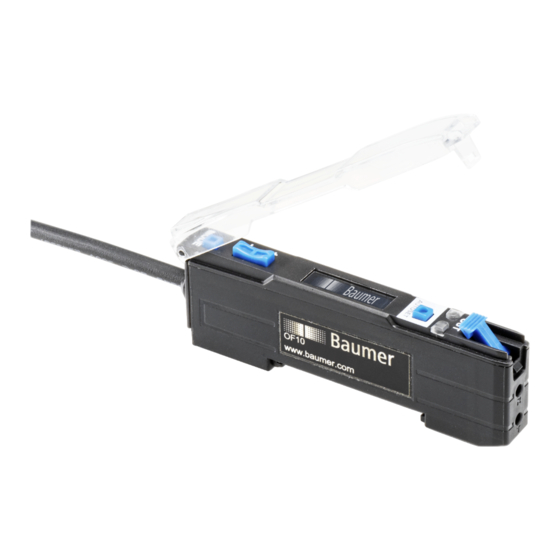

  • Page 1 Description of functions and interfaces OF10 with IO-Link interface EN-US Fiber optic sensor...

  • Page 2: Table Of Contents

    Identification.......................... 36 7.1.3 Parameter ..........................36 7.1.3.1 Switching Signal Channel 1 (SSC1) ..............36 7.1.3.2 Teach-in......................39 7.1.3.3 SwitchCounts....................40 7.1.3.4 Quality Parameters................... 40 7.1.3.5 MDC Configuration ................... 41 Description of functions and interfaces OF10 with IO-Link interface | V1...
  • Page 3 Baumer Table of contents 7.1.3.6 Interface Parameters ..................41 7.1.4 Diagnosis ..........................42 7.1.4.1 Factory Diagnostics ..................42 7.1.4.2 Device Status Information ................42 7.1.4.3 Service Functions ..................... 43 V1 | OF10 with IO-Link interface Description of functions and interfaces...
  • Page 4 Ill. 7 Switching output behavior in mode Single Point and negative hysteresis (Left Aligned)....19 Ill. 8 Switching output behavior in mode Window and negative hysteresis (Right Aligned)......20 Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 5: About This Document

    This manual enables safe and efficient sensor parameterization. The manual describes the functions and is intended to support sensor installation and use. The illustrations are examples only. Deviations are at the discretion of Baumer at all times. This manual is a supplement to the existing product documentation.

  • Page 6: Warnings In This Manual

    Indicates a danger with low risk, which could lead to light or medium injury if not avoided. NOTE Indicates a warning of material damage. INFO Indicates practical information and tips that enable optimal use of the devices. Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 7: Structure And Function

    In other words, transmission and reception beams are co-axial. This allows for detection in nar- row openings and the object's approaching direction does not matter. V1 | OF10 with IO-Link interface Description of functions and interfaces...

  • Page 8: Interfaces

    IODD (IO Device Description). IODD is available for download on the sen- sor website (download section). Digital sensor communication, secondary data and the option of direct sensor communication with the IT world makes IO-Link a cornerstone in Smart Factory. Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 9: Oled Display

    USB-C master and Baumer Sensor Suite. The IO-Link USB-C Master enables IO-Link devices to communicate with the computer without external power supply. Baumer Sensor Suite is a computer-based tool to understand and use IO-Link devices and to visualize sensor functions of different sensor brands.

  • Page 10: Process Data

    Measurement data channel. This channel is for readout the sensitivity and quality values or number of SSC1 switching operations in the form of a 32-bit integer value. Tab. 1: Process Data In Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 11: Operating Functions

    10 % (default) higher than the light intensity of the beam received. Use the selector +/- to adjust the switching point. Sensing Distance Object Position @Autoset Treshold V1 | OF10 with IO-Link interface Description of functions and interfaces...
  • Page 12 AUTOSET again. The switching point is set in the mid of both light intensities. Use the selector +/- to adjust the switching point. Sensing Distance 1st Autoset Point Threshold 2nd Autoset Point Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 13: Ill. 2 Comparison Of Autoset Settings

    4096 2200 Autoset Pt 1 2000 Threshold 1800 Autoset Pt 2 Ill. 2: Comparison of AUTOSET settings For more detailed information on the following please refer to chapter Annex [} 35]. V1 | OF10 with IO-Link interface Description of functions and interfaces...
  • Page 14 Press AUTOSET to trigger the desired teaching process. AUTOSET Mode: Light State LS AUTOSET Mode: Dark State DS AUTOSET Mode: Midpoint MP AUTOSET Mode: Two-Point 2P AUTOSET Mode: Dynamic DY Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 15: Autoset Percent

    Press Mode until AUTOSET Pct. appears on the display. b) Set the required value with the selector +/-. To scroll, press and hold the button. c) Press Mode to select the setting. AUTOSET Pct: V1 | OF10 with IO-Link interface Description of functions and interfaces...

  • Page 16: Detect Mode

    Press Mode until Detect Mode appears on the display. b) Make the required setting by help of the selector +/-. c) Press Mode to select the setting. Detect Mode: Light ON Detect Mode: Dark ON Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 17: Response Time

    Parameter > Switching Signal Channel 1 (SSC1) Name Index Subindex Description Response Time – Response time. UHS - Ultra-High-Speed HS - High-Speed STD - Standard HR - High-Resolution LR - Long-Range ULR - Ultra-Long-Range V1 | OF10 with IO-Link interface Description of functions and interfaces...

  • Page 18: Hysteresis

    This function prevents unwanted switching operations by the switching output. The parameter- ized value of the hysteresis is the difference in distance between the points at which the switch- ing output is activated and deactivated. Baumer recommends always setting the hysteresis not equal to 0.

  • Page 19: Ill. 5 Switching Output Behavior In Mode Single Point And Negative Hysteresis (Left Aligned)

    Hysteresis is aligned to or against the sensing direction. Switching point P1 Hysteresis High Active low level Level Ill. 7: Switching output behavior in mode Single Point and negative hysteresis (Left Aligned) V1 | OF10 with IO-Link interface Description of functions and interfaces...

  • Page 20: Ill. 8 Switching Output Behavior In Mode Window And Negative Hysteresis (Right Aligned)

    Press Mode until Hysteresis appears on the display. b) Make the required setting by help of the selector +/-. c) Press Mode to select the setting. Hysteresis: Hysteresis: Standard Hysteresis: High Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 21: Anti-Crosstalk

    Press Mode until Anti-Crosstalk appears on the display. b) Make the required setting by help of the selector +/-. c) Press Mode to select the setting. Anti-Crosstalk: Disabled Anti-Crosstalk: Channel A Anti-Crosstalk: Channel B V1 | OF10 with IO-Link interface Description of functions and interfaces...

  • Page 22: Timer/Counter Function

    One- One- Shot Shot Shot Motion Input Events Output One-Shot One-Shot Triggered Triggered Retriggered Latch Input Events Output Reset Latched required On, Off-Delay Input Events Output Delay Delay Delay Description of functions and interfaces OF10 with IO-Link interface | V1...
  • Page 23 Input Events Output One- Blind One- Blind Shot Shot Delayed One-Shot Input Events Output D - Delay OS - One-Shot Delayed Latch Input Events Output Delay Reset Latched required V1 | OF10 with IO-Link interface Description of functions and interfaces...
  • Page 24 One-Shot occurs on Nth detection. For this example N = 5. Count, Latch Input Events Output One-Shot occurs on Nth detection. Reset Latched For this example N = 5. required Description of functions and interfaces OF10 with IO-Link interface | V1...
  • Page 25 According to the selected settings you may be provided with more options for the function (e.g. OnDelay). On Delay: 10ms Make choice using the selector +/- and confirm each setting with Mode. V1 | OF10 with IO-Link interface Description of functions and interfaces...

  • Page 26: Q2 Io Function

    Active High blocked if the input is active. Remote Lock – Remote access to AUTOSET, selector +/- and most mode functions is Active Low blocked if the input is inactive. Description of functions and interfaces OF10 with IO-Link interface | V1...
  • Page 27 PNP – Source Q2: Output NPN – Sink Q2: Output Push/Pull Q2: Remote Set Active High Q2: Remote Set Active Low Q2: Remote Lock Active High Q2: Remote Lock Active Low V1 | OF10 with IO-Link interface Description of functions and interfaces...

  • Page 28: Mdc Configuration

    Shows the upper value of measurement range. Unit Code 16512 3 Shows the unique code for the physical unit. Scale 16512 4 Shows the multiplier for the measurement value - 10exp(scale). Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 29: Display-Mode

    Make the required setting by help of the selector +/-. c) Press Mode to select the setting. Display Mode: 01100 00990 Numeric Display Mode: 99.9% 01.0% Percentage Display Mode: 01100 Numeric 00990 Display Mode: 99.9% Percentage 01.0% V1 | OF10 with IO-Link interface Description of functions and interfaces...

  • Page 30: Lock-Mode

    Make the required setting by help of the selector +/-. c) Press Mode to select the setting. Result: ü The display shows Sensor Locked if lock mode is active. Button Lock: Disabled Sensor locked Button Lock: Enabled Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 31: Factory Settings

    AUTOSET Button Mode Light-State AUTOSET Percent DETECT Mode Light On Response Time Standard Hysteresis Standard Anti-Crosstalk Disabled Timer Bypass Timer Duration 10ms Input Functions Disabled Display Mode Numeric Lock Mode Disabled V1 | OF10 with IO-Link interface Description of functions and interfaces...
  • Page 32 Instruction: a) Press and hold Mode while connecting the sensor. ü The display will give visual feedback. b) Confirm with selector +/-. Result: ü Default settings have been restored. Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 33: Diagnostic Functions

    Indicator for the current device condition and diagnosis state. 0 – Device is OK 1 – Maintenance required 2 – Out of specification 3 – Functional check 4 – Failure Detailed Device Status – V1 | OF10 with IO-Link interface Description of functions and interfaces...

  • Page 34: Identification

    Firmware Revision – Unique, vendor-specific identifier of the firmware revision of the individual device. Hardware Revision – Unique, vendor-specific identifier of the hard- ware revision of the individual device. Description of functions and interfaces OF10 with IO-Link interface | V1...

  • Page 35: Annex

    Baumer Annex Annex IO-Link 7.1.1 V1 | OF10 with IO-Link interface Description of functions and interfaces...

  • Page 36: Identification

    Index Subindex Name Data type Access rights Value range Description Vendor Name String ASCII Vendor name that is assigned to a vendor ID, e. g. Baumer. Vendor Text String ASCII Additional information about the vendor, e. g. www.baumer.com Product Name String ASCII Complete product name, e. g.
  • Page 37 Index Subindex Name Data type Access rights Value range Description – Timer Function Uint16 Choose timer function. 0: 00 - Bypass / None 1: 01 - T1: On-Delay 3: 02 - T1: Off-Delay 4: 03 - T1: One-Shot 5: 04 - T1: Motion 6: 06 - T1: On Delay, T2: Off Delay 7: 07 - T1: On Delay, T2: One-Shot 9: 09 - T1: Off Delay, T2: One-Shot...
  • Page 38 Index Subindex Name Data type Access rights Value range Description – Hysteresis Uint16 0: H0 - Low 1: H1 - Standard 2: H2 - High – Anti-Crosstalk Uint16 0: Disabled - Full Speed 1: xA - Channel A 2: xB - Channel B...

  • Page 39: Teach-In

    7.1.3.2 Teach-in Index Subindex Name Data type Access rights Value range Description Teach-in Single Value – System Command - UInt8 68 = Teach SP1 Teach SP1 – Single Value Teach UInt16 0 = Light State Teach (-AUTOSET Percent) Mode 1 = Dark State Teach (+AUTOSET Percent) 2 = Midpoint Teach (+0) State UInt4...

  • Page 40: Switchcounts

    7 = Error 7.1.3.3 SwitchCounts Index Subindex Name Data type Access rights Value range Description 1000 – Baumer Commands - Uint8 12 = SSC1 Switch Counts Reset SSC1 Switch Counts Reset – Switch Counts SSC1 Uint32 SSC1 Resetable Switch Counts Resetable 7.1.3.4...

  • Page 41: Mdc Configuration

    7.1.3.5 MDC Configuration Index Subindex Name Data type Access rights Value range Description – MDC Selection Uint8 MDC selection source. SCC1 Signal Level SCC1 Quality Value SCC1 Switch count 16512 1 Lower Value Uint16 Shows the lower value of measurement range. 16512 2 Upper Value Uint32...

  • Page 42: Factory Diagnostics

    Index Subindex Name Data type Access rights Value range Description – Display Mode Uint16 0 = Standard 1 = Inverted 2 = Standard % 3 = Inverted % – Settings - Button Inter- Uint16 0 = Unlocked face 1 = Locked 2 = Secured –...

  • Page 43: Service Functions

    7.1.4.3 Service Functions Index Subindex Name Data type Access rights Value range Description System Command Uint8 129 = Application Reset 130 = Restore Factory Settings 131 = Back-to-box...
  • Page 44 Baumer Electric AG Hummelstrasse 17 CH − 8501 Frauenfeld www.baumer.com...
