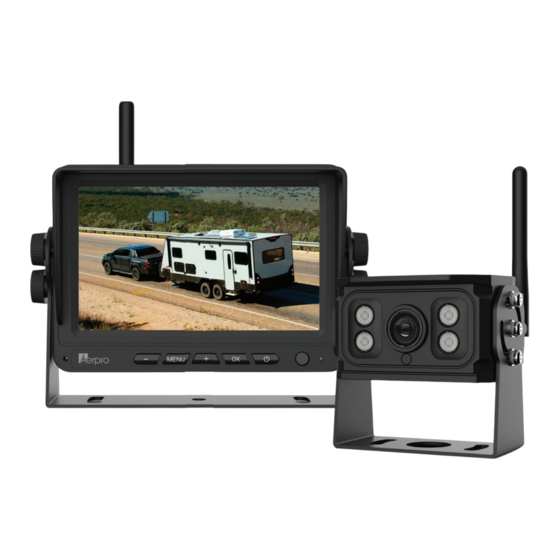

- Page 1 ADVANCED SAFETY VISION SYSTEMS AVK5W1 5” WIRELESS HEAVY DUTY MONITOR 720P HD CAMERA KIT USER MANUAL USER MANUAL USER MANUAL 12 24V SINGLE COMPATIBLE 720P CAMERA INPUT 07-08-2024...
- Page 2 ADVANCED SAFETY VISION SYSTEMS Product overview Bracket installation 1. Fix the U-bracket into position. Insert and lock the monitor into the bracket using the mounting screw knobs. 2. Adjust to your desired angle.
- Page 3 ADVANCED SAFETY VISION SYSTEMS Installation options Installation options Monitor Camera Camera Option1 Option2 Socket Hardwired wired Powerwires 10-32V DC car Powerwires (Reversing light10-32V) accessory socket (10-32V Accessory)
- Page 4 ADVANCED SAFETY VISION SYSTEMS Product information 1. Monitor wireless antenna 2. Screen 3. Adjustable monitor angle mount 4. Camera wireless antenna 5. Guideline: On home screen quick press OK button 5. - Selection button 6. Menu button: Press to enter/exit the menu settings 7.
- Page 5 ADVANCED SAFETY VISION SYSTEMS Menu operation When the monitor is on, press the “MENU” button to enter into the menu settings. Press the “+ / -“ buttons to increase or decrease the parameter setting. Press the “OK“ button to confirm setting. Main menu Language/Picture Flip / Backlight Brightness / Factory Default / System Information / Camera Pair...
- Page 6 ADVANCED SAFETY VISION SYSTEMS Menu operation Picture Flip Press the “OK” button to enter the picture flip interface and press the “+ / -“ buttons to turn mirror and flip function on/off Backlight Brightness Press the “OK” button to enter the backlight brightness interface and press the “+ / -“...
- Page 7 ADVANCED SAFETY VISION SYSTEMS Menu operation Factory Default Press the “OK” button to enter the factory default settings and press the “+ / -“ buttons to select yes or no to restore the monitor to default factory settings. System Information Press the “OK”...
- Page 8 ADVANCED SAFETY VISION SYSTEMS Menu operation Camera Pair Press the “OK” button enter to the camera pair settings. With the camera powered a text window will appear on screen saying “searching” . After a few seconds the camera name for pairing will appear. Press the “OK” button to confirm camera.
- Page 9 ADVANCED SAFETY VISION SYSTEMS Menu operation Once successfully paired, a text window will appear saying “Pairing successful”, and the camera will activate.
- Page 10 ADVANCED SAFETY VISION SYSTEMS Specifications • Display: 5" IPS Display • Resolution: ° Monitor: 800 x 480 ° Camera: 1280 x 720 • Wireless HD 720P reverse camera • Lens Angle: 110 Degrees • Wireless Frequency: 2.4Ghz • Wireless Range: 150 metres •...
- Page 11 ADVANCED SAFETY VISION SYSTEMS Technical assistance If you need assistance setting up or using your Aerpro product now or in the future, call Aerpro Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST or EMAIL: service@tdj.com.au If you would like to download a digital copy of this manual, or other Aerpro manuals/software, please visit the Aerpro.com website and search for the product...
