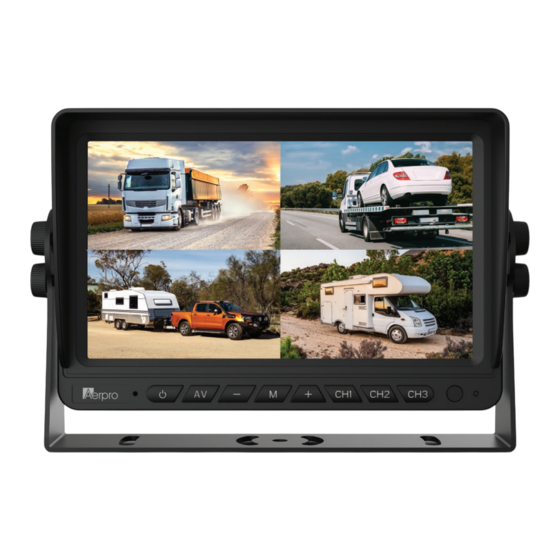

- Page 1 ADVANCED SAFETY VISION SYSTEMS AVM7Q 7" HEAVY DUTY AHD QUAD VIEW MONITOR USER MANUAL QUAD 12 24V COMPATIBLE RECORDING CAMERA INPUTS 10-12-2024...
- Page 2 ADVANCED SAFETY VISION SYSTEMS Product overview Memory Card installation 1. Remove the 2 screws at the back of the monitor to reveal the SD Card Slot. 2. Insert a memory card in the slot (not included). 3. Replace the cover before attaching the U-bracket. Bracket installation 1.
- Page 3 ADVANCED SAFETY VISION SYSTEMS Power Input select / Screen Views - Volume / Menu down function Menu + Volume / Menu up function Channel 1 display Channel 2 display Channel 3 display Menu structure Press the Menu button to scroll through the main menu structure. Each press of the menu button will advance the user though the menus as listed below.
- Page 4 ADVANCED SAFETY VISION SYSTEMS Menu structure continue..5. System: • Language - English / Chinese • S-Saver Mode - BL Off / Clock • Screen Saver - OFF / 1 Min / 2 Min / 5 Min • Time Setting - Year / Month /Day/ Time •...
- Page 5 ADVANCED SAFETY VISION SYSTEMS Menu descriptions 4.Settings: • Rotate - Adjusts the screen rotation • Blue Screen - Turns the background screen from blue to black • Shrink Video - After the ACC power is off, the monitor will continue to record the times, available in 1min 3min 15min 30min and off for choice.
- Page 6 1080P 1080P 1080P 720P 1080P 720P 1080P Note: Additional cameras and wiring may be required depending on your application, compatible products are available on our website. For more information Scan the QR code below. Product AERPRO.COM information and user manual.
- Page 7 ° Monitor Only: 179 x 122 x 29mm ° Monitor and Bracket: 198 x 139 x 35mm • Inclusions: ° 7" AHD Monitor AVM7Q ° 1 x Monitor Mount ° 1 x Sun visor ° 1 x 1.5m Monitor Cable •...
- Page 8 ADVANCED SAFETY VISION SYSTEMS Technical assistance If you need assistance setting up or using your Aerpro product now or in the future, call Aerpro Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST or EMAIL: service@tdj.com.au If you would like to download a digital copy of this manual, or other Aerpro manuals/software, please visit the Aerpro.com website and search for the product...
- Page 9 ADVANCED SAFETY VISION SYSTEMS How to find reversing wires to trigger or power camera systems. This product allows for each camera to have its own trigger. We recommend that you wire up the triggers as the last part of your installation (after the systems monitor has been wired) this is so that you can use the system as a safe way to test for a reversing wire.
- Page 10 ADVANCED SAFETY VISION SYSTEMS carefully strip both wires sheaths back to expose the wires core making sure you keep them separate and away from the cars chassis to avoid any shorts). You should also make sure the globe it self is not resting on something that could be harmed by extreme heat as the globe when on can get very hot).
