AMHJP1K
Introduction and Features
The AMHJP1K is a complete radio replacement kit for Jeep Wrangler JK. All modules and cables are included to retain important
features of the factory system, including: steering wheel-mounted radio controls, factory amplifier (if equipped) and AM/FM
reception. Plug & Play wiring harnesses allow for quick and easy installation without the need to cut or splice any wiring.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself
with the entire process prior to beginning the installation.
1. Does not retain the following factory features:
● uConnect
● In Premium Amplified Systems, only two input channels can be used from the aftermarket radio,
therefore there will be no fading capability of the aftermarket stereo.
2. Directions for removing the display panel are on page 13.
Recommended Tools
Plastic Panel Tool
7mm Socket
Ratchet
Ratchet Extension

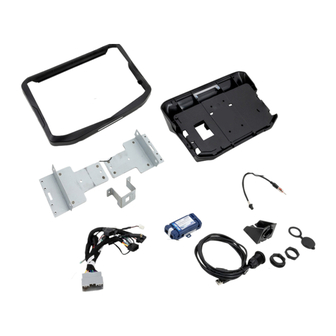

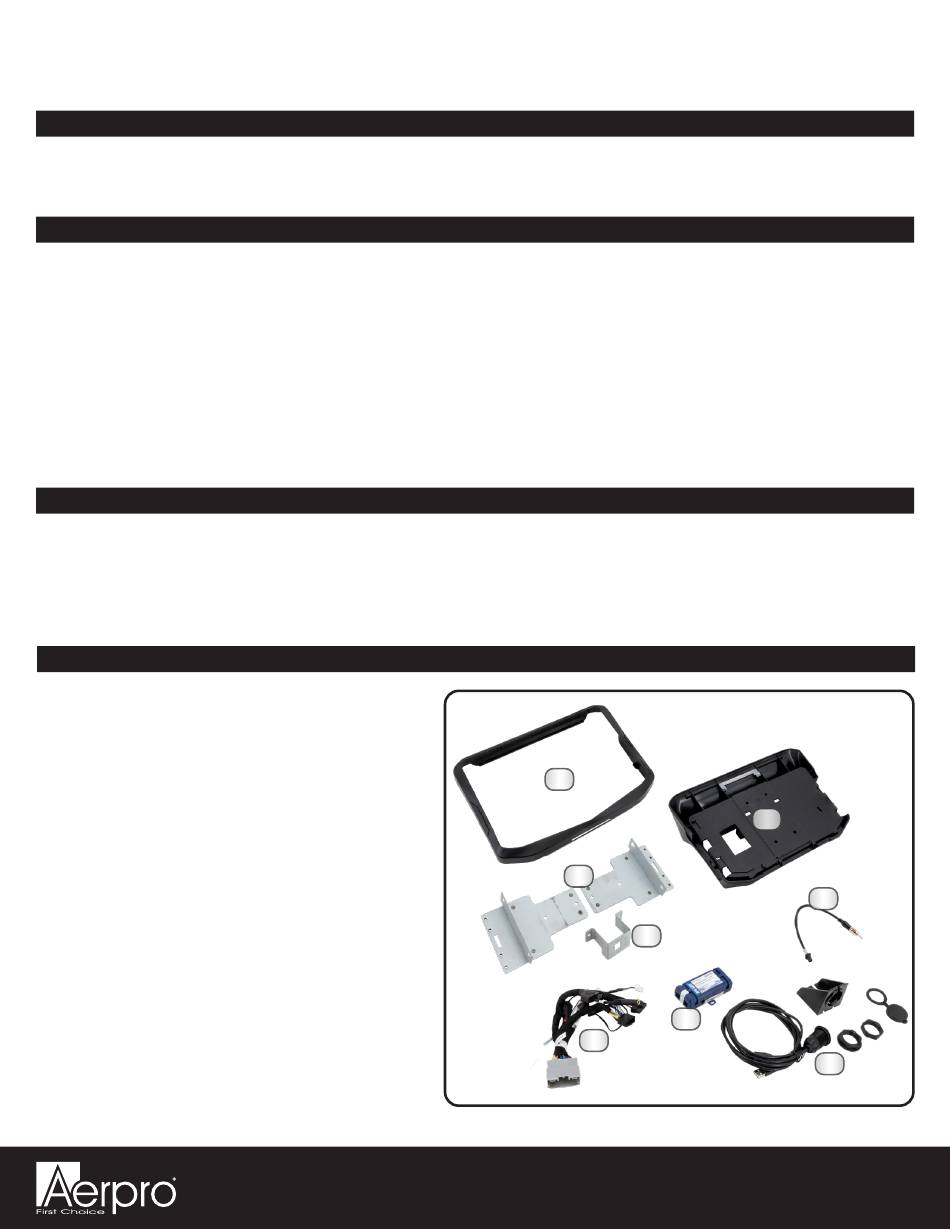

Included Components
1. Mounting Panel Front Frame
2. AERA10D Display Mounting Panel
3. Side Mounting Brackets
4. Top Support Bracket
5. Main Wiring Harness (RP4-JK07-HAR)
6. Radio Replacement Interface Module (RP4-CH11)
7. AM / FM Antenna Adapter (BAA22)
8. Dual USB Extension (SSUSB2)
NOTE: Along with the AMHJP1K components,
additional hardware and wire harnesses from the
AERA10D (UN1810E) kit will also be used in the
installation. There is a component list, hardware
guide, wire harness descriptions and illustrations
in the UN1810E Installation Guide for reference.
Phillips Screwdriver
Pick Tool
Flush Cutters
Wire Feeder
AERPRO AERA10D
®
for 2011-2018 Jeep Wrangler JK
1
3
4
6
5
Radio Replacement Kit
2
7
8
Page 1
Advertisement
Table of Contents
Related Manuals for Aerpro AMHJP1K
Summary of Contents for Aerpro AMHJP1K
- Page 1 Introduction and Features The AMHJP1K is a complete radio replacement kit for Jeep Wrangler JK. All modules and cables are included to retain important features of the factory system, including: steering wheel-mounted radio controls, factory amplifier (if equipped) and AM/FM reception.
-
Page 2: Wiring Diagram Overview
AMHJP1K AERPRO AERA10D Radio Replacement Kit ® for 2011-2018 Jeep Wrangler JK Wiring Diagram Overview RP4-JK07-HAR DAB+ Antenna 6PIN 10PIN GRAY BLACK AM/FM 16PIN 24PIN USB1 USB2 ANT. Main Harness Connection AERPRO Connection Page 2... -
Page 3: Section 1: Disassembly
AMHJP1K AERPRO AERA10D Radio Replacement Kit ® for 2011-2018 Jeep Wrangler JK This installation manual will cover the necessary order of procedures to complete the installation efficiently and to avoid redoing any steps along the way. The order will be as follows; Disassembly, In-Vehicle Harness Connections and Preparation, Display, Radio Module and Harness Preparation, and Radio Unit Installation. -
Page 4: Section 2: In-Vehicle Harness Connections And Preparation
AMHJP1K AERPRO AERA10D Radio Replacement Kit ® for 2011-2018 Jeep Wrangler JK Section 1: Disassembly (cont.) Step 8 Step 9 Step 7 Using the storage tray and area Remove the four 7mm screws Disconnect all wire harnesses and over the gauges, pull the top edge... - Page 5 AMHJP1K AERPRO AERA10D Radio Replacement Kit ® for 2011-2018 Jeep Wrangler JK Section 2: In-Vehicle Harness Connections and Preparation (cont.) Part One: Dual USB Extension (SSUSB2) (cont.) Step 4 Step 5 Reconnect and reinstall the Install the optional USB cover and climate control panel.
-
Page 6: Section 3: Display, Radio Module And Harness Preparation
Step 3 Step 1 Partially screw in the four M4x10 Place the AERA10D display into screws from the AMHJP1K Use four M4x12 from the the front of the mounting panel hardware into the side holes of the AERA10D hardware to attach the and carefully turn the panel over mounting panel. - Page 7 2011-2018 Jeep Wrangler JK Section 3: Display, Radio Module and Harness Preparation (cont.) Part Two: Attaching the Radio Module Mounting Brackets FRONT arrow should point towards the Aerpro logo. Step 2 Step 3 Step 1 Using two M4x4 screws from the...
-
Page 8: Section 4: Radio Unit Installation
AMHJP1K AERPRO AERA10D Radio Replacement Kit ® for 2011-2018 Jeep Wrangler JK Section 3: Display, Radio Module and Harness Preparation (cont.) Part Three: Main Harness Connections (RP4-JK07-HAR) (cont.) Step 5 Step 6 Step 4 Connect the 16-pin and 6-pin Attach the RP4-CH11 interface to the... - Page 9 AMHJP1K AERPRO AERA10D Radio Replacement Kit ® for 2011-2018 Jeep Wrangler JK Section 4: Radio Unit Installation Part Two: Mounting the Radio Assembly Step 2 Step 3 Step 1 The top support bracket on the With the two display cables routed...
- Page 10 AMHJP1K AERPRO AERA10D Radio Replacement Kit ® for 2011-2018 Jeep Wrangler JK Section 4: Radio Unit Installation (cont.) Part Three: Attaching the Display Panel 1/16” 1/16” Step 3 Step 1 Step 2 Apply a piece of cloth tape across Apply a piece of removable tape...
- Page 11 AMHJP1K AERPRO AERA10D Radio Replacement Kit ® for 2011-2018 Jeep Wrangler JK Section 4: Radio Unit Installation (cont.) Part Three: Attaching the Display Panel (cont.) Step 5 Step 6 Holding the mounting panel at the sides: To attach the display assembly, align 1.
-
Page 12: Technical Support
AMHJP1K AERPRO AERA10D Radio Replacement Kit ® for 2011-2018 Jeep Wrangler JK Section 4: Radio Unit Installation (cont.) Part Three: Attaching the Display Panel (cont.) Step 8 Step 7 Once the display panel is Install the front frame by hooking... -
Page 13: Removing The Display Panel
AMHJP1K AERPRO AERA10D Radio Replacement Kit ® for 2011-2018 Jeep Wrangler JK Removing the Display Panel Step 3 Step 1 Step 2 Once the side clips are Remove the front frame by first Using a very thin pry tool or...
