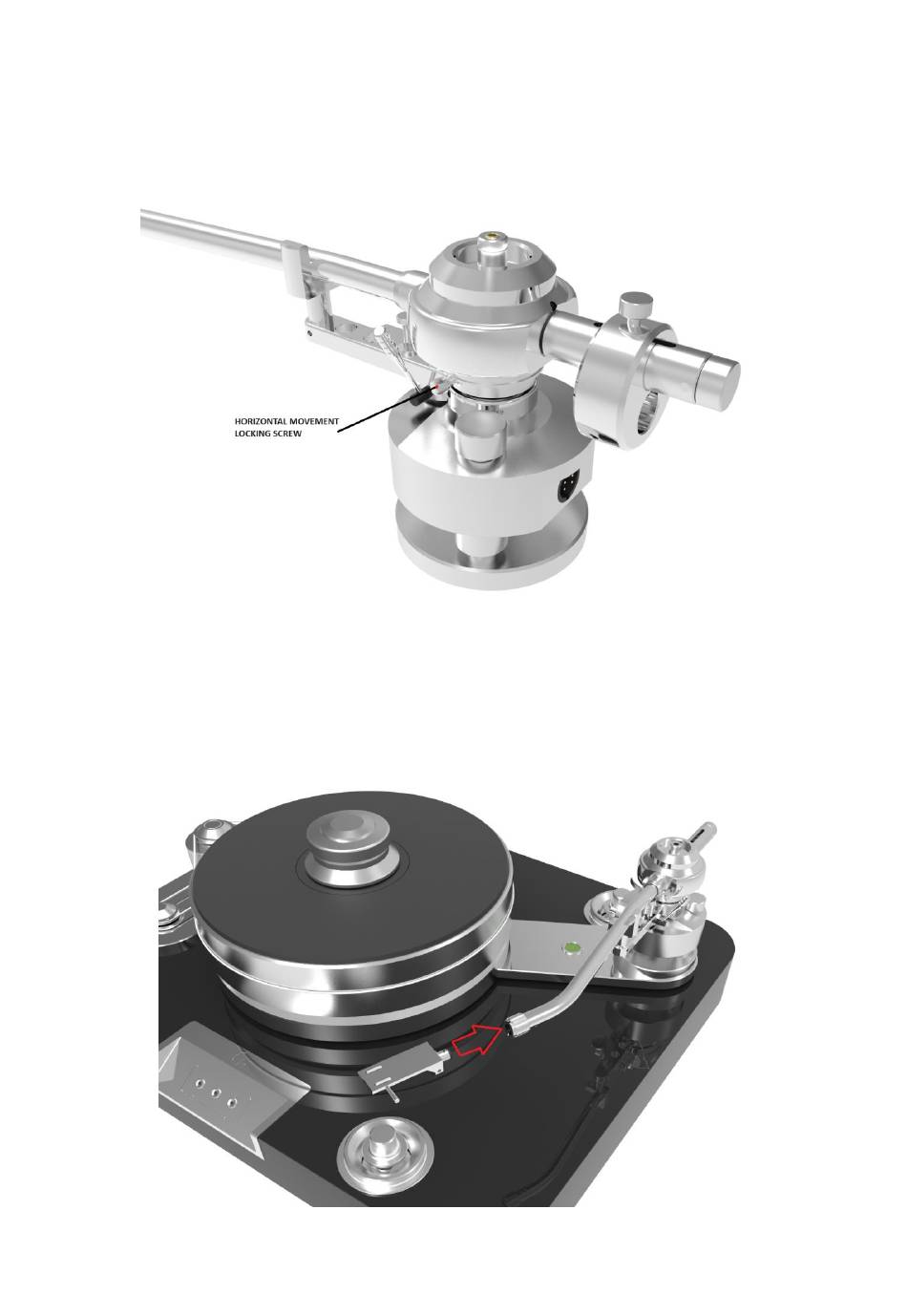

c) Horizontal movement locking screw

The arm is equipped with a locking screw for horizontal movement to facilitate the assembly of the

removable part. Once the arm is securely seated on the support pins, this screw, which prevents

horizontal movement of the arm, can be released, allowing the arm to move into its functional position.

d) Headshell:

Insert the headshell into the front of the tonearm tube. The connector pin must be oriented into the

groove in the tonearm tube. Secure the headshell by screwing the locknut of the SME connector

clockwise.
